YoloBox Ultra

Yololiv

Encoder recorder monitor touch 8" 4K Live streaming
go to the technical sheet
₦ 2,536,408.00

₦ 2,359,449.00 VAT excl.

Available 8 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

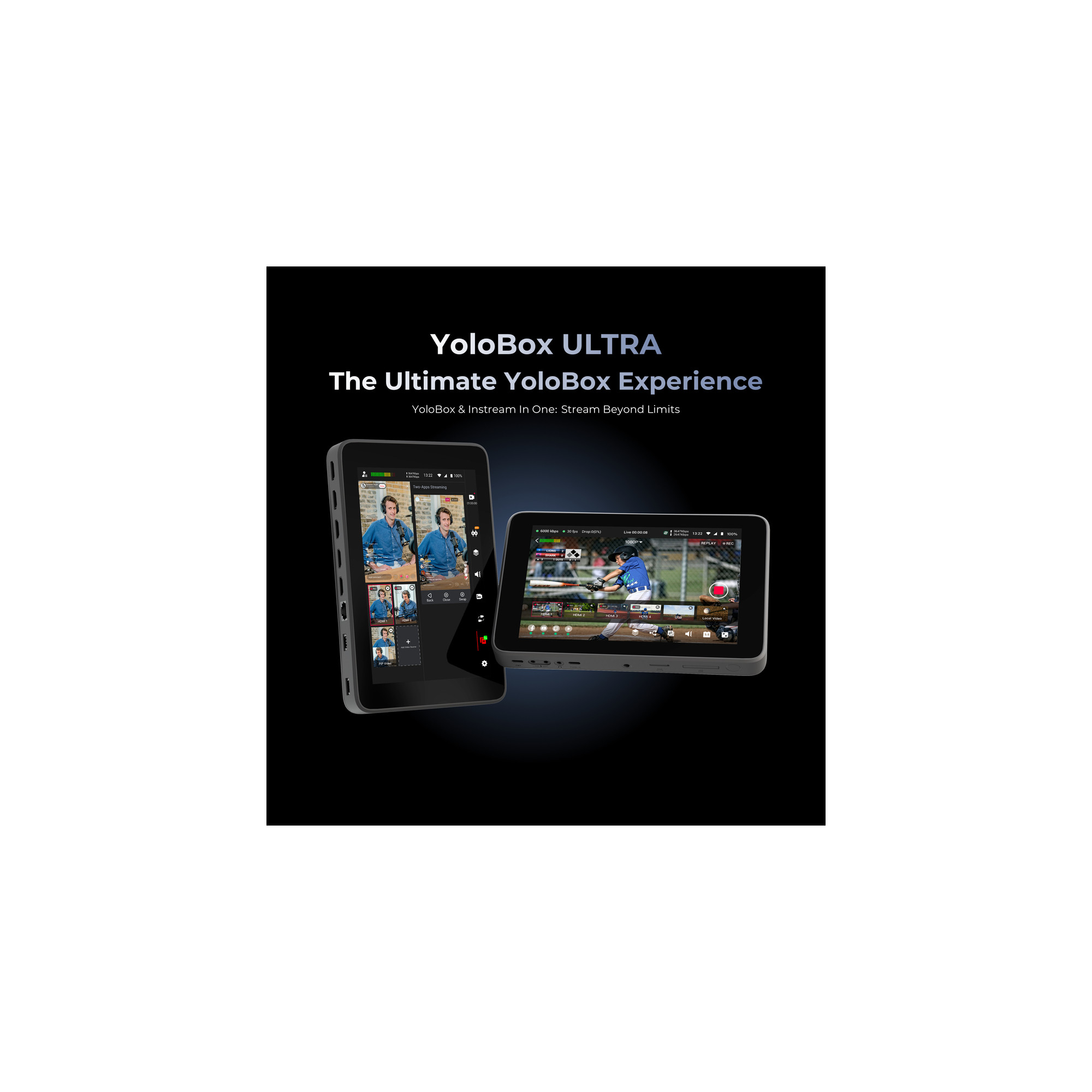

YoloBox Ultra is industry's YoloBox & Instream In One, live stream vertically or horizontally to your favorite platforms.
Advantages:
· Up to 4 HDMI inputs
· Stronger CPU: 865 Qualcomm Snapdragon
· No Computer or OBS required
· All-In-One: Encoder, switcher, recorder, monitor all in one
· YoloBox & Instream in one: support horizontal and vertical streaming
· Touch screen control: Production at your fingertip, great ease to operate

Pro Features
4K streaming:

Support streaming up to 4K, a huge leap forward for video quality.
ISO recordings:
Capture all the video inputs as well as the program video and save them separately. You can
also adjust the resolution, frame rate, and bitrate for each recording accordingly.
Cellular Bonding:
Combine up to 4 internet sources - 4G LTE cellular, WiFi, Ethernet and USB Dongle - into a single faster, more reliable connection. Enjoy high-quality video experience without interruptions.
Horizontal streaming:
Support streaming up to 3 destinations simultaneously like YouTube, Facebook, Twitch, etc.Support streaming up to 4K, a huge leap forward for video quality.
Vertical streaming:
Support streaming up to 2 destinations simultaneously like Instagram, TikTok, etc.
Built-in Chroma Key:
Seamlessly add a different background of a design for your live productions with the magic of Chroma Keying in a few taps.
Video Cropping:
Whether to remove some unwanted margin of video input, resize game capture, zoom video conferencing, or create a close-up view, video cropping has all you need.
Instant Replay:
Jump back to any point in the game or a show with preset video duration and playback video speed. Create highlight clips with the click of a button.
Web URL Overlay:
Incorporate professional-grade live graphics in minutes on any production. Control from anywhere via your browser.
Auto Switching:
You can pick video sources, how long to stay on each one, and even prioritize the main camera, we will automatically switch for you. Perfect for single-person multi-cam live productions.
Wireless Phone Camera/Invite Guests:
Invite up to five guests to join your stream from anywhere. Create dynamic, collaborative live streams with guests even though they cannot be on site.
Audio Mixing:
Built-in audio mixer with easy setup. Fine-tune each channel of audio individually to deliver the best sound to your audiences.
Graphic Overlays:
Show off your brand, keep score, and always look professional with graphics support. Choose from images, lower thirds, scoreboards, countdown timer overlays, titles, logos, social overlays, and web URL overlays.
Multiple Multi-views:
Multiple video layouts to match your diverse streaming scenarios and help level up your production with ease. Choose from PIP, Side by Side, Split View, News Layout, and Triple.

Tech specs
Monitor Screen Size : 8 inch LCD
Resolution : 1200*1920, Brightness: 650nits,
Contrast ratio : 1500:1
Viewing Angle : full viewing Angle
HDMI IN : 2x HDMI OUT
1x Ethernet
LINE IN : 1x (3.5mm)
MIC IN : 1x (3.5mm)
AUDIO OUT : 1x (3.5mm)
USB Type-C : 1x (Only for charging)
USB Type-C : 1x (Full-function interface)
Nano-SIM Card Holder : 1x

Power
Input Power : 5V/9V/12V/15V 3A
Power Consumption : <45W
Power supply : USB Type C
USB Rated Output USB-A : 5v 1A
Battery Capacity : 6800 mAh(75.48Wh)

General
Operating Temperature : 0-40 degr C
Operating Humidity : 15%-85%, No Condensation
Dimensions LxWxH : 219x140x27,1mm
Net weight : 980g

Functions
Video over ethernet : RTMP/RTMPS/SRT
Video Input Connectors : HDMI, USB-A, RJ-45, USB Type-C
Video Input Aspect Ratios Video : 4:3, 16:9, 1:1
Input deinterlacing : NO
Live Broadcast Video input Resolution : 480p/720p/1080p(up to 60fps)/4K 30fps
Video Encoded Format : H.264 H.265
Video processing Bitrate control : CQ, VBR, CBR
Analog Audio Input Connectors : Line In, Mic In, 3.5mm
Digital Audio Inputs : USB, HDMI, RTMP(From internet), Local video (From SD card)
Digital Audio Input Connectors : USB-A,HDMI,USB-C
Audio Input Mute : Yes
Audio Input Format : 32KHZ/44.1KHZ/48KHZ:16bit
Audio Encoded Format
(AA : C)44.1K/48KHZ 2Ch 16bit
Analog Audio Output : 3.5mm headphone jack

4G Network
4G Network Countries & Frequency Band For Users : (EU: Variant for EMEA/India/Korea/Taiwan/South Asia/Latin/America/Australia/New Zealand)
Please note that the certification of YoloBox Ultra is in line with the mainstream open 4G band requirements of operators in this country or region.
For details, please refer to the approval report of this country or region.
Record Formats : MP4
Wi-Fi : 2.4G/5G Support Wifi 6)
USB Communication Standard : USB 2.0 and USB 3.0
Ethernet Data Rate : 10/100M/1000M, half/full duplex with autodetect
SIM Card Size : Nano-SIM Card
SD Card format : FAT 32 (Under 1 TB), NTFS,EX-FAT

1x YoloBox Ultra
1x USB Charge Cable (2)
1x Hotshoe Mount
1x YoloBox Ultra User Manual
1x SIM Card Eject Pin
