MON-CINE-7
SmallHD
811786030842
7" 1920 x 1200 Touchscreen Display, 1800 cd/m² (L-Series), 3G-SDI IN/OUT
go to the technical sheet
₦ 4,541,175.00
₦ 4,224,349.00 VAT excl.

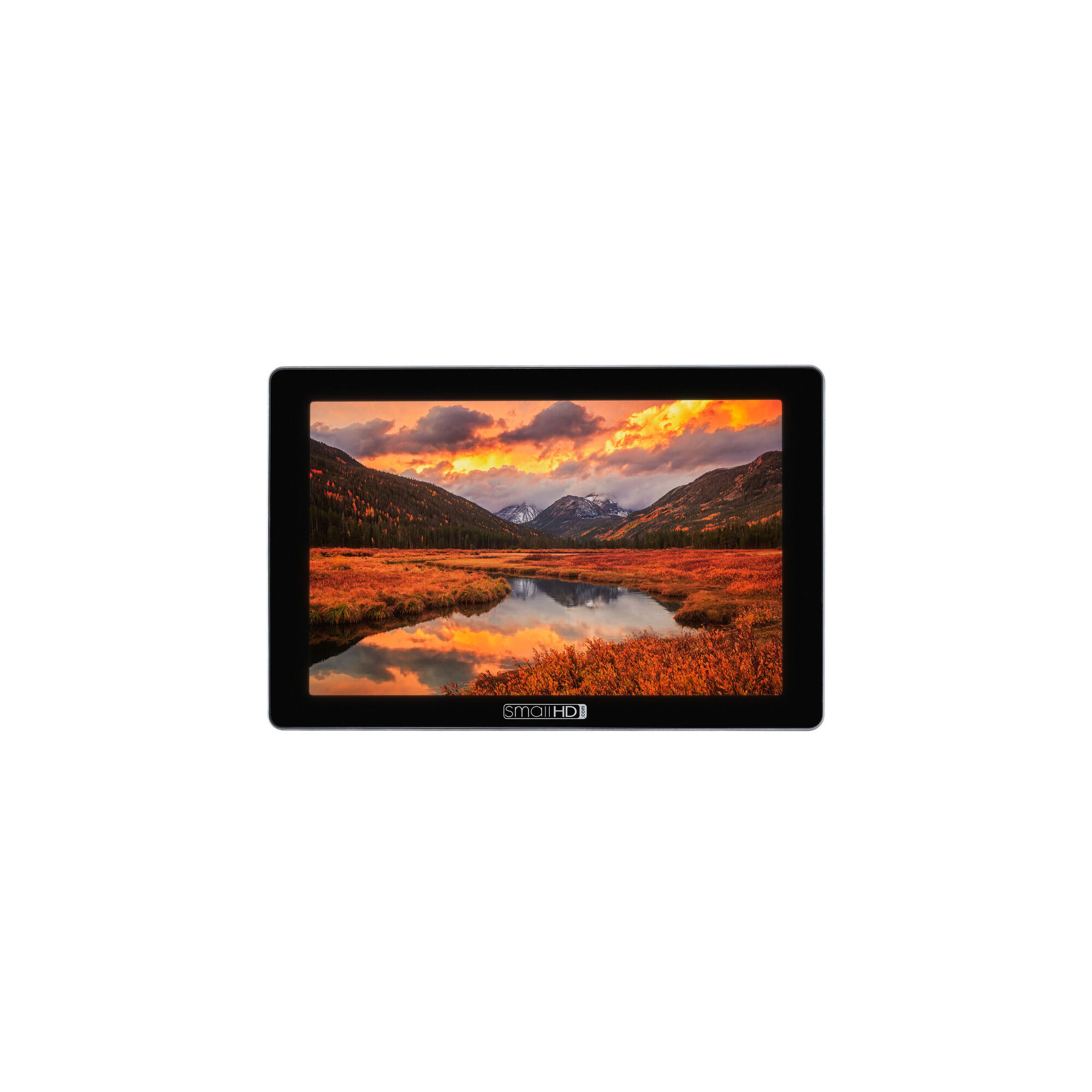

SmallHD Cine 7 Touchscreen On-Camera Monitor (L-Series), resolution 1920 x 1200, 1800 nits / cd/m2, 3G-SDI IN/OUT
Camera Monitor from SmallHD. Featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output.
The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility.
Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.
RED Control
- Run/stop
- Color controls
- Exposure controls
- Status
- Color temperature
- Video format
- Playback
- Shutter
- Menu control
Software
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to 8 channels
Camera Monitor from SmallHD. Featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output.
The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI.
The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility.
Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.
RED Control
- Run/stop
- Color controls
- Exposure controls
- Status
- Color temperature
- Video format
- Playback
- Shutter
- Menu control
Software
- Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
- DSLR scale: Canon 5D Mk II and Canon 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
- Image flip: Auto and manual
- Image rotation: Auto and manual
- Color focus assist: Adjustable style and intensity
- Peaking: Adjustable intensity
- False color: Spectrum, ARRI-style, and customizable
- Dual zebra: Customizable
- Waveform: Luma and RGB, customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: Customizable
- Histogram: Luma and RGB
- Image capture: With dedicated button and image gallery
- Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: HDMI and SDI up to 8 channels
9.VE5090
₦ 207,904.00
VAT included
Available in 19 days
9.VD5089S
₦ 168,451.00
VAT included
Available in 14 days
9.XA1008
₦ 40,849.00
VAT included
Available in 14 days
9.VG5096D
₦ 103,468.00
VAT included
Available in 14 days
9.XA10071
₦ 27,573.00
VAT included
Available in 19 days
9.VB5081A-H
₦ 120,506.00
VAT included
Available in 14 days
9.XA1015
₦ 30,099.00
VAT included
Available in 19 days
9.VP5081E
₦ 80,086.00
VAT included
Available in 19 days
9.XS1005
₦ 111,154.00
VAT included
Available in 14 days
SR 2059
₦ 31,013.00
VAT included
Available 3 unit in 4 Days
9.VE5091
₦ 260,203.00
VAT included
Available in 19 days
9.VD5089XS
₦ 159,529.00
VAT included
Available in 19 days
237HD
₦ 132,761.00
VAT included
Available in 14 days
9.VB5080
₦ 101,748.00
VAT included
Available in 14 days
026
₦ 101,855.00
VAT included
Available 60 unit in 4 Days
9.XA10075
₦ 15,318.00
VAT included
Available in 19 days
9.XL1012
₦ 35,420.00
VAT included
Available in 19 days
9.VB5105
₦ 150,553.00
VAT included
Available in 19 days
9.VE5085
₦ 168,451.00
VAT included
Available in 19 days
9.VP5081A
₦ 82,989.00
VAT included
Available in 14 days
9.VG5096A
₦ 114,916.00
VAT included
Available in 19 days
9.VP5081
₦ 65,520.00
VAT included
Available in 19 days
9.XG1029
₦ 59,984.00
VAT included
Available in 19 days
9.XA10072
₦ 22,198.00
VAT included
Available in 19 days
9.XS1006
₦ 70,250.00
VAT included
Available in 19 days
9.VP5081B
₦ 102,285.00
VAT included
Available in 19 days
9.VB5079
₦ 31,389.00
VAT included
Available in 19 days
9.VD5089M
₦ 193,176.00
VAT included
Available in 19 days
9.VD5095
₦ 321,693.00
VAT included
Available in 14 days
9.VP5081C
₦ 92,395.00
VAT included
Available in 14 days
9.XA1016
₦ 15,318.00
VAT included
Available in 19 days
9.VG5096
₦ 84,225.00
VAT included
Available in 19 days
9.VP5081D
₦ 102,285.00
VAT included
Available in 19 days
9.VB5083
₦ 50,685.00
VAT included
Available in 19 days
9.XS1004
₦ 66,326.00
VAT included
Available in 19 days
PWR-ADP-C7T-GM
₦ 330,185.00
VAT included
Available 1 unit in 4 Days
Director Monitor Cage v3
₦ 705,306.00
VAT included
Available in 14 days
PWR-ADP-C7T-SONY
₦ 330,185.00
VAT included
Available in 14 days
PWR-ADP-C7T-VM
₦ 314,436.00
VAT included
Available in 14 days
S-3602F
₦ 218,385.00
VAT included
Available 3 unit in 4 Days
LC-D421F KIT
₦ 310,244.00
VAT included
Available in 11 days
Display
______________________
Panel Type: IPS-Type LCD
Display Size: 7.0" / 17.8 cm
Screen Area: 5.95 x 3.72" / 15.11 x 9.45 cm
Native Resolution: 1920 x 1200
Aspect Ratio: 16:10
Touchscreen: Yes
Maximum Brightness: 1800 nits / cd/m2
Contrast Ratio: 1000:1
Color Support: 1.07 Billion Colors (10-Bit)
HDR Support: No
Pixels Per Inch (ppi): 322 ppi
Color Gamut: 100% DCI-P3
Image Controls: Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
Inputs / Outputs
______________________
Video I/O:
- 1x HDMI (Unspecified Signal) Input
- 1x HDMI (Unspecified Signal) Output
- 1x BNC (3G-SDI) Input
- 1x BNC (3G-SDI) Input/Output
Embedded Audio:
- HDMI: 8-Channel
- SDI: 8-Channel
Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: No
Power I/O: 1x LEMO 2-Pin (34 VDC) Input
Other I/O: 1x Micro-USB 2.0
Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC
Wi-Fi: No
Bluetooth: No
Mobile App Compatible: No
Power
______________________
Input Power: 6 to 16 VDC at 2.5 A
Battery Type: 2x L-Series
Mounting
______________________
Mounting: 4x 1/4"-20 Female
General
______________________
Certifications: CE, IC, RoHS
Operating Conditions: 30 to 100°F / -1 to 37°C
Storage Conditions: 0 to 120°F / -17 to 48°C
Dimensions: 7.1 x 4.7 x 1.3" / 18 x 11.9 x 3.3 cm
Weight: 20.00 oz / 567.00 g
1x Cine 7 Touchscreen On-Camera Monitor (L-Series)
1x Dual L-Series Battery Plate for 702 Touch & Cine 7 Monitors
