Shinobi II

Name: Shinobi II
Brand: Atomos
SKU: Shinobi II
Price: 704568 NGN
Availability: InStock

Atomos

EAN: 0814164022941

5-inch 1500nit HDMI monitor, 4K DCI + UHD up to 30fps - ATOMSHB003

go to the technical sheet

₦ 704,568.00

₦ 655,412.24 VAT excl.

Available 2 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

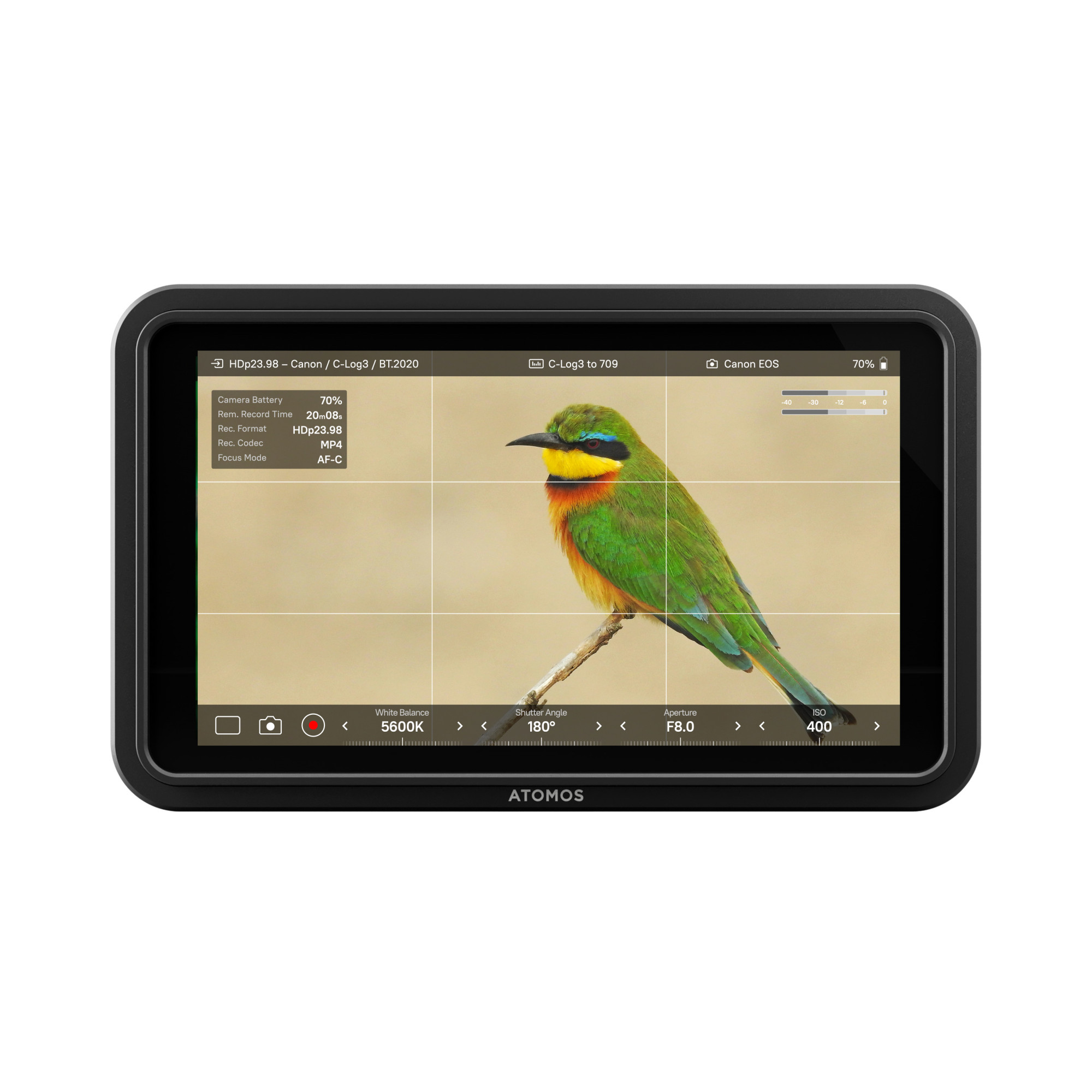

Atomos 5-inch 1500nit HDMI monitor, 4K DCI + UHD up to 30fps, resolution 1920x1080 - ATOMSHB003

The slim, lightweight, high brightness, 5-inch 1500nit HDMI monitor that's perfect for vloggers, creatives and photographers.

- Slimmer body - weighs just 210 gms
- 1500nit peak brightness touchscreen
- Camera control via USB-C and LANC
- Power the Shinobi II via USB-C PD
- Power / charge your camera via USB-C PD

Atomos invented the ProRes monitor-recorder, and the Ninja and Shogun lines are market leaders in that field.
In response to customer feedback, the first monitor-only device, Shinobi, was launched in 2019 and has been very successful, selling over 100.000 units worldwide.
One of the most common requests from Shinobi users has been camera control, which requires a USB-C port for the widest-possible compatibility with modern mirrorless/DSLR cameras.
At launch, Shinobi II will be able to control most Canon, Panasonic, and Sony mirrorless cameras via USB-C, and all Z CAM E2 models through our USB-C to Serial Cable (ATOMCAB018), purchased separately.
With future firmware updates Atomos plans to support cameras from Fujifilm, Nikon, OM System and Sigma.

The camera control interface has been designed by Atomos, with a focus on common settings that need to be adjusted on a shot-by-shot basis.
The exposure triangle is an essential element of all photography.
Shinobi II has sliders for adjusting lens aperture, shutter speed and ISO.
With immediate and responsive access to these settings, getting perfect exposure on every shot is a breeze, especcially when used in combination with the powerful monitoring tools.
These include histogram, waveform, false color, zebra, focus peaking and zoom (same as Shinobi).

The camera's White Balance can also be adjusted via a slider.
If you need to control recording remotely, for example if your camera is mounted on a gimbal, that is also possible via the Shinobi II's camera control bar.
Recording status is shown by a red edge display, irrespective of whether the recording is triggered by the camera or from the Shinobi II.
Adding a USB-C port gave us the opportunity to restyle the form factor.
The slimmer body meant that we could add more hardare functionality without significantly affecting the qeight of the device.
Shinobi II weighs just 210gms, compared with its Shinobi's 196gms.

The touchscreen has also been upgraded, at 1500nits peak brightness it is 50% brighter than its predecessor.
The USB-C PD port can also be used to power or charge the camera from the NPF battery.

Display
Size: 5.2"
Touch Screen: Capacitive touch
Resolution: 1920x1080
Brightness (cd/m2 / nits): 1500nit
Gamut: Rec.709
Bit Depth: 8+2
Viewing Angle: 178+H&V
PPI: 423

Construction
Design Style: New slim look
Body: ABS polycarbonate
Cooling: Passive heat sing
Mounting Points: Bottom: 1x1/4-inch 20 with anti-rotational points
Multi-function Button: Power / lock screen

Connection
HDMI in: 1x1.4
HDR: HDMI auto detection
USB: Camera control + USB-PD power

Input resolution
4K: 4K DCI + UHD up to 30fps
1080p: 1080p up to 60fps

Color management
Calibration: Calibrator app&USB-C to serial + simple on-device calibration
3D LUTs: Monitor

Monitoring
SDR: SDR native, 709 LUT, User LUT
HDR: HDR HLG, HDR PQ

Audio
Headphone In: 3.5mm jack

Timecode
HDMI: Embedded (display only)

Power
DC In: Battery eliminator (optional)
Voltage range: 6.2 - 16.8v
USB PD In: < 10W
USB PD Out: > 13W
Battery: 1x NPF
Power Function: Button on/off

On-Screem Tools
MultiScope Analysis View: Image, WFM, vector, histogram
Waveform: 3 sizes - adjustable opacity & brightness
Histogram: 3 sizes - adjustable opacity & brightness
Waveform RGB Parade: 3 sizes - adjustable opacity & brightness
Vector Scope: 1 sizes - adjustable opacity & brightness
1x Zoom: Tap to zoom
2x Zoom: Tap to zoom
4x Zoom: Tap to zoom
Focus Peaking: 4 modes (color, black&white, outline, edge sharpening) with adjustable outline color&peaking intensity
Zebra: Adjustable threshold (50% to 105%)
False Color: Atomos false color
Isolate Color Channel: Blue only
Cine Frame Guides: Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social Frame Guides: Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe Areas: SMPTE safe title area - 93% & 90%
Grid Markers: 9 grid
Anamorphic Desqueeze: 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Fip: Horizontal & vertical

Camera Control Tools
Supported Vendors (Launch): Canon, Panasonic, Sony, Z Cam
Supported Vendors (Post-Launch): Fujifilm, Nikon, OM System (Olympus), Sigma
Record Trigger: Start/stop camera recording
Shutter Speed: Freely adjustable settings slider
Shutter Angle: Freely adjustable settings slider (if supported by camera)
Aperture: Freely adjustable settings slider
ISO/Gain: Freely adjustable settings slider
Camera Overlay: Hides/shows camera live view overlays (if supported bu camera)
Record Indicator: Red outline when camera is recording
