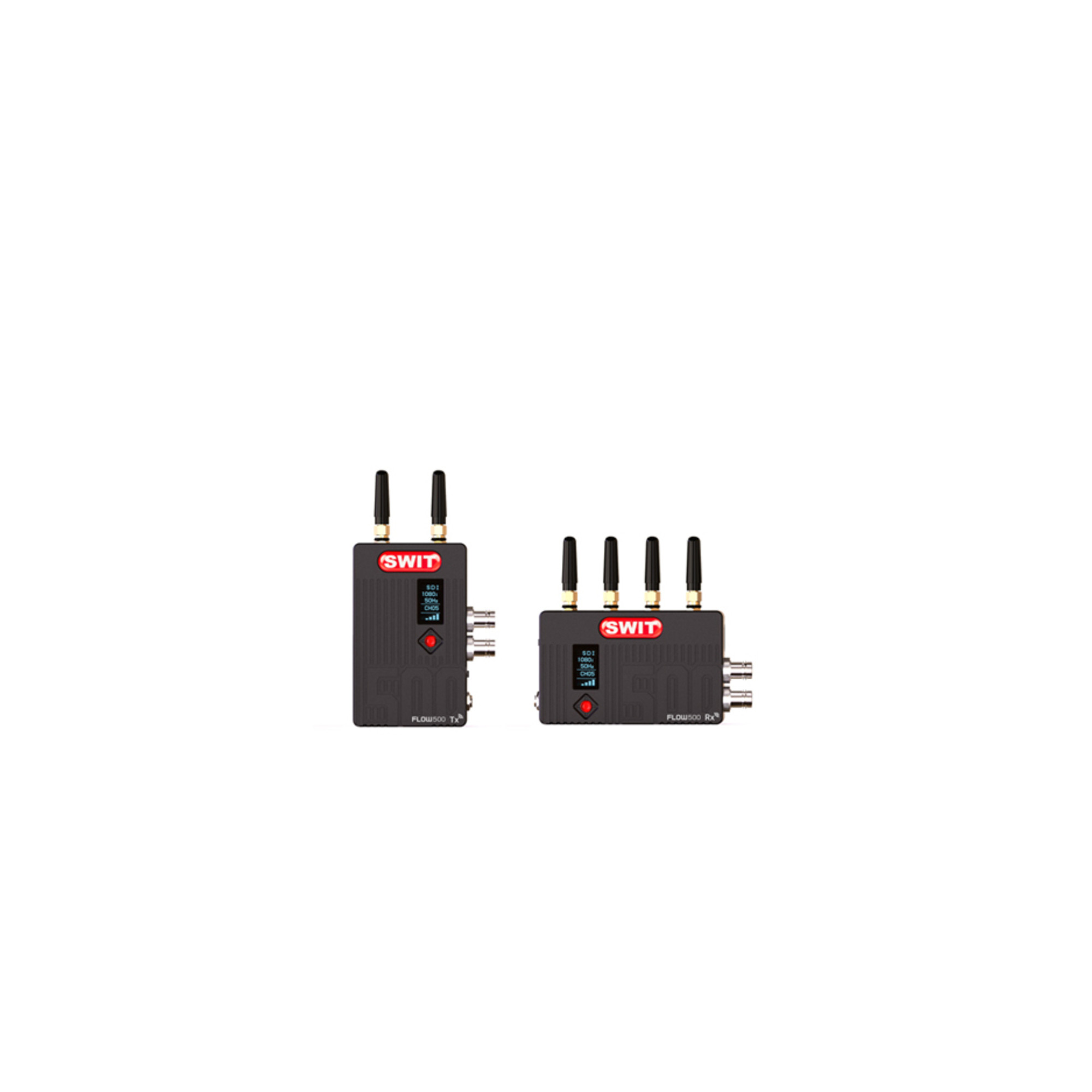

FLOW500 SDI&HDMI 500ft/150m Wireless System
go to the technical sheet
€ 1.066,21

€ 991,82 VAT excl.

Available in 11 days
Not sure if this is the right product for you? Talk to a consultant
FLOW500 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 500 feet (150 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam

New generation wireless by SWIT unique technology:
500feet(150m) FHD Video Transmitter with full DFS-Comply;
Much more robust and smooth connection with higher quality picture even in very complex wireless environment; Much stronger anti-interference ability;
Much longer practical distance; Stronger Wall-through;
Much smaller! Robust with Aluminum housing;
No signal loss, accurate color and clock reproduction(algorithm by SWIT);
Completely quiet; No fan;
No delay with ~32ms stable and invisible latency; Much better than Wifi solutio
OLED display on both Tx&Rx for visibility and best channel selection;
Auto or Manual Pairing(All under your control), both DFS-Comply;
SDIx2+HDMI on both Tx&Rx;
Chip-level Content Encryption;
16-ch Audio, Timecode & Trigger;
No-stop Replay for Alexa Mini;
Support >7 pairs in one location, 1Tx to N Rx, N>4;
Tx&Rx wide range DC in; Tx&Rx: NP-F mount"

Input / Output
Transmitter 3G/HD-SDI input×1; loop out x1 HDMI 1.3 input ×1
Receiver
3G/HD-SDI output×2 HDMI 1.3 output ×1
Video Formats
SDI
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
HDMI
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Wireless Frequency
5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Modules
OFDM 16QAM, 64QAM, QPSK, BPSK
RF Power 128mW
Transmission Distance
500 feet / 150 meters (Line of sight)
General
Input voltage
Transmitter DC 7-34V
Receiver DC 7-34V
Power Consumption
Transmitter 8W
Receiver 8W
Dimension(w/o antenna)
Transmitter 66×106.5×24.7 (mm)
Receiver 106.5×66×24.7 (mm)
Net weight
Transmitter 236g
Receiver 245g; With package 2.55kg
Working Temperature
0°C -+40°C
