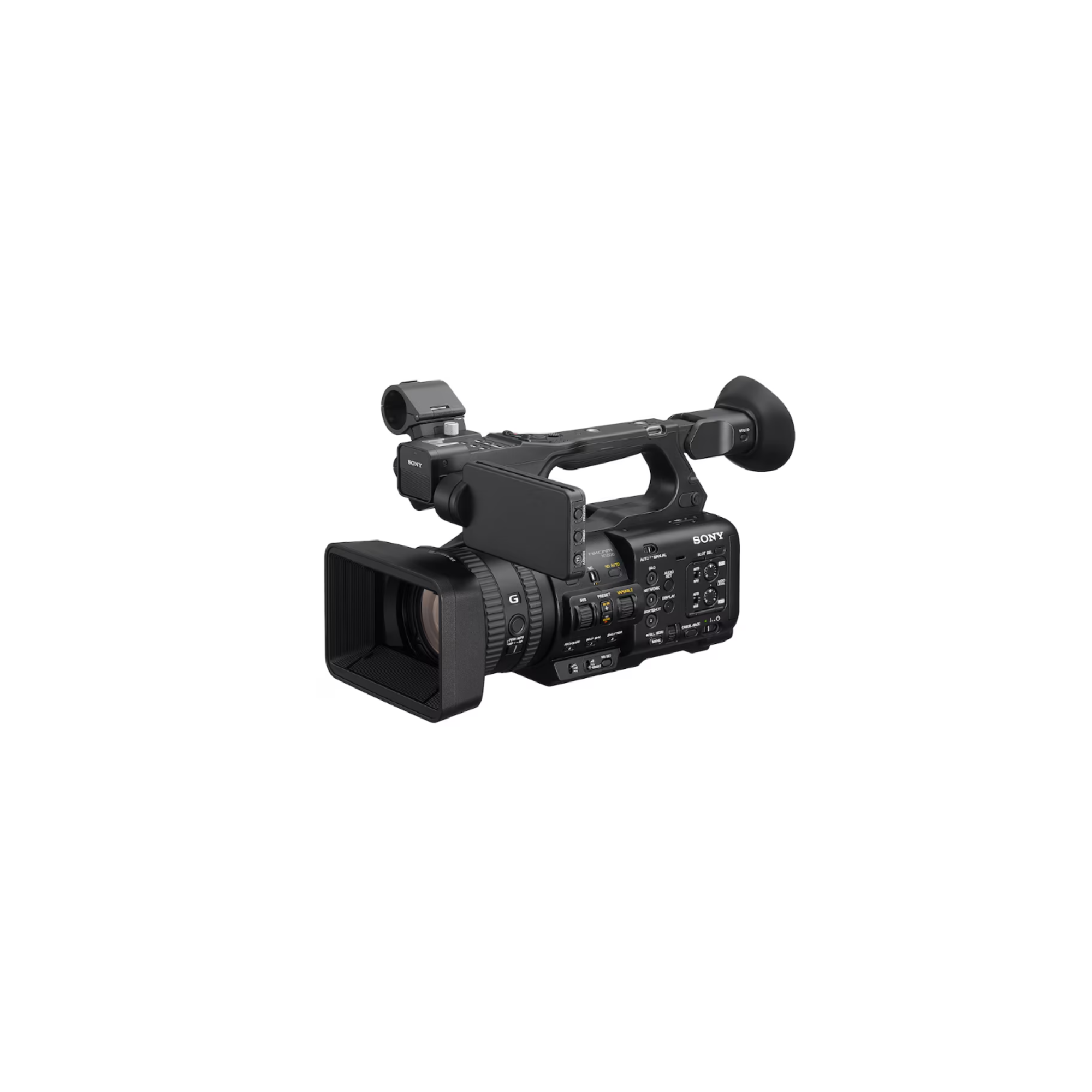

HXR-NX800B
Sony
₦ 5,956,099.00 VAT excl.
Crisp details and vivid colors, every time
Capture stunning 4K HDR footage, with colors, textures and details that stand out.
The NX800's powerful 1.0-type Exmor RS™ stacked CMOS sensor delivers images with high sensitivity and low noise, at up to 120fps* in 4K, 240fps in FHD. Preserve every detail with full-pixel readout and real-time BIONZ XR™ image processing, while compatibility with 709tone and S-Cinetone™ makes color matching to Cinema Line and Sony system cameras easy.
* With approx. 23% crop. Please refer to Operating Instructions for minimum memory card requirements to ensure correct operation.
Reliable streaming and remote operation
Built-in 2.4 GHz and 5 GHz Wi-Fi - in concert with our C3 Portal (paid) or XDCAM Pocket apps - powers simple, high-quality streaming direct from the camera.
Remote operation via our Monitor and Control* app allows you to check angles and monitor shooting from your smartphone or tablet.
The NX800 is ideal for solo operators who want a simple, high-speed workflow.
1.0-type Exmor RS CMOS sensor
For imaging performance otherwise unobtainable for a compact camcorder, the NX800 relies upon a large approx. 14.0 megapixel (effective) 1.0-type Exmor RS CMOS image sensor.
Its unique stacked structure - with back illuminated pixels layered over integrated signal processing circuits - enables both faster read-out speeds and superior low-light performance due to more light reaching the sensor.
BIONZ XR image processing
Integrated within the image sensor, our latest generation BIONZ XR image processor enables higher frame-rates, faster autofocus, improved Auto Trace White Balance (ATW) control and superior noise reduction.
It extracts maximum performance from the high-resolution image sensor, effortlessly capturing the most subtle textures and finest detail.
5K oversampling with full-pixel readout condenses ample image information into stunning 4K (3840 x 2160) 60p video.
Enhanced White Balance Accuracy
The NX800's Auto Tracing White Balance (ATW) control has evolved alongside the BIONZ XR and AI capabilities.
The camera's AI Processing Unit enables more precise ATW control, even in challenging lighting conditions, such as when the targeted person is in shadow.
Advanced AI Processing Unit for next generation AF
A specialized AI Processing Unit, working in concert with BIONZ XR, uses deep learning based on the human form and posture data to recognize human subjects with high precision.
The Fast Hybrid AF system offers wide 81% coverage to better support Subject Recognition AF and Real-time Tracking.
The NX800 can effortlessly track and maintain focus on subjects just about anywhere in the frame.
Auto Framing
With Auto Framing engaged the camera will automatically track a recognized human subject and adjust framing so that the subject is always prominently positioned in the frame.
The resulting footage can look as though a human operator was manually adjusting framing throughout a shoot - even though the camera was actually stationary the entire time.
Solo operators can concentrate on engaging with an interviewee without constantly checking on camera positioning.
4K 120fps for stunning slow motion footage
The high readout speed of the Exmor RS sensor enables 4K high frame rate (HFR) recording at up to 120fps and FHD at 240fps.
Achieve 4x slow motion in 4K at 30p or 5x slow motion at 24p.
Whatever your creative choice, high speed AF helps ensure your subject is kept in focus. Slow & Quick Motion is supported for up to 4K 120fps and FHD 240fps recording.
20x optical zoom
One superb 20x power zoom G Lens™ covers everything from wide angle in-car interviews to telephoto close-ups for sports.
Delivering an optical zoom range of 24-480 mm (35 mm full-frame equivalent), it's backed up by Sony's Clear Image Zoom technology, which adds the ability to achieve 30x zoom when recording 4K or 40x zoom in FHD.
And you can explore maximum apertures of F2.8 (wide) and F4.5 (telephoto) while zooming quickly, smoothly and silently.
Built-in Electronic Variable ND Filter
Seamlessly adjust the Electronic Variable ND Filter to suit a variety of light levels.
Move from 1/4 to 1/128 ND with a simple dial adjustment or rely on the Auto ND function to maintain the optimum exposure for you—especially useful when moving quickly between indoor and outdoor environments.
LB-SU75
BP-U90 Blueshape
LB-SU98
BP-U100
BP-U35
LB-SU98 2KIT - Swit
SF-G256T.SYM
CEA-G160T
SDSDXXD-256G-GN4IN
SF-M64T.SYM
SF-M128T.SYM
SDSDXXU-064G-GN4IN
SF-64TG
SF-M512.SYM
CEA-G80T
SF-G2M
SF-E256.AE
SF-M256T.SYM
SDSDXXD-512G-GN4IN
SDSDXXD-128G-GN4IN
SF-G1TG
SDSDXEP-064G-GN4IN
SDSDXEP-128G-GN4IN
SDSDXEP-256G-GN4IN
SDSDXEP-512G-GN4IN
SF-E64A.AE
SF-E128A.AE
CEA-M960T.CE7
CEA-M1920T.CE7
SDSDXXD-1T00-GN4IN
V15P AL G Tripod Kit
MVK612TWINFA
MVK504XSNGFC
MVK504XTWINMA
Focus 10 - KF10-RLG
MVK509TWINFC
MVK504XTWINGC
MVK608TWINMC
DV6P AL M Tripod Kit
Focus 10 - KF10-RLM
Focus 8 - KF08-RLM
MVK502AM-1
DV6P AL G Tripod Kit
Focus 10 - KSDS10-A
MVK504XTWINGA
Focus 8 KSDS08-C
MVK608TWINGC
MVK504XTWINFA
MVK608TWINFA
GA-05VTS
LX7
LX7 M
Focus 8 - KF08-RLG
V12 AL G Tripod Kit
MVK500190XV
Focus 10 - KSDS10-C
MVK608TWINMA
MVK500AM
MVK608TWINGA
MVK504XTWINMC
Focus 8 KSDS08-A
V5 AL M Tripod Kit
MVK608TWINFC
MVK509TWINFA
System Ace M GS Mk II
System Ace XL AL MS Mk II
Ace XL Mk II flowtech75 MS
FSB 6 752 CF MS Mk II
System Ace XL CF MS Mk II
Focus 10 - KF10-3CS
FSB 6 752 AL HD GS Mk II
FSB 6 752 AL HD MS Mk II
FSB 6 752 AL GS Mk II
FSB 6 752 CF GS Mk II
FSB 6 752 AL MS Mk II
System Ace XL CF GS Mk II
System Ace M MS Mk II
Solidcom C1 Pro-2S
Ultralite UL2D KIT HD
Solidcom C1 Pro-4S
Ultralite UL4S KIT HD
Evade EVX2SD
Solidcom C1-3S
Ultralite UL7 HUB7SMXS HD
Ultralite UL7 HUB7-16 HD
Evade EVX4S
Ultralite UL4-22 Kit HD
Ultralite UL2S KIT HD
Ultralite UL3-12 KIT HD
Solidcom C1-2S
DT-108 m200 h50-B
EW-D EM R1-6
EW-D SK R1-6
EW-D SKM-S BASE SET R4-9
UWP-D26K21
EW-D ME2 SET Q1-6
UWP-D22K33
UWP-D27K33PRO
EW-D SKM-S Q1-6
UWP-D26K33
EW-D ME2 SET R1-6
UWP-D27K33
EW-D 835-S SET R4-9
UWP-D21K33
UWP-D27K21PRO
EW-D ME3 SET Q1-6
UWP-D22K42
UWP-D27K42
EW-D ME4 SET Q1-6
EW-D 835-S SET R1-6
UWP-D21K21
UWP-D27K21
EW-D CI1 SET R1-6
UWP-D21K42
EW-D SK BASE SET R4-9
UWP-D26K42
UWP-D22K21
EW-D ME3 SET R1-6
UWP-D27K42PRO
EW-DP ME2 SET Q1-6
EW-DP ENG SET Q1-6
EW-DP ME2 SET R1-6
EW-DP ME4 SET Q1-6
EW-DP 835 SET Q1-6
EW-DP ENG SET R4-9
EW-DP 835 SET R4-9
EW-DP 835 SET R1-6
EW-DP ME4 SET R4-9
EW-DP ME4 SET R1-6
LARK MAX SOLO
Wireless Go II TX
Wireless PRO
DJI MIC 2 1Tx + 1 RX
DJI MIC 2
EW-DX SKM Q1-9
EW-DX 835-S SET Q1-9
EW-DX 835-S SET R1-9
EW-DX MKE 2 835-S SET Q1-9
EW-DX MKE 2 835-S SET R1-9
YoloBox Mini
Instream
V-1HD+
V-8HD
V-02HD MK II
VR-120HD
V-160HD
YoloBox Pro
VR-6HD
GoStream Deck
GoStream Deck Kit
YoloBox Ultra
GoStream Duet
RCC-6-SDI
RCC-25-SDI
RCC-200-SDI
RCC-16-SDI
RCC-10-SDI
RCC-50-SDI
RCC-3-SDI
RCC-100-SDI
Nanlite - 2x PavoTube II 15X
Nanlite - FS-200
Amaran COB 60d S
Nanlite - 4x PavoTube II 30X
Nanlite - 2x PavoTube II 30X
Nanlite - Forza 60B II
MT Pro
Amaran COB 60x S
Nanlite - Forza 300 II
Nova P300c
Amaran 200d S
Nanlite - PAVOTUBE II 6C 30W
Nanlite - Forza 300B II
LS 600D
LS 300X
Amaran 100d S
LS C300d II VL
Nova P600c
Nanlite - Forza 500B II
LS 600x Pro
Nanlite - Forza 500 II
Amaran 200x S
Nanlite - FS-300B
FC-60B
Orca OR-10
MB PL-RL-A55
MB PL-RL-A50
MB PL-RL-S55
MB PL-CL-M
MB PL-CL-L
Orca OR-69
K 52
DT-109 m200 h50-B
K 371
K 240 MKII
K 72
K 92
ATH-M60x
ATH-M50x
ATH-E40
K271 MKII
MDR-75061
HD 280 Pro
HD 300 Pro
Solidcom M1 Double Headset
HD 26 Pro
K 361
ATH-M20x
ATH-M50xSTS
TC-1 3pc Kit
MB PL-RL-H55
MB PL2-BP-FX-L
MB PL2-BP-ML-M
MB PL2-BP-FL-M
F3
MixPre-10 II
Portacapture X8
Q8n-4K
H8
H2n
MixPre-3 II
F8n PRO
DR-60DMK2
Portacapture X6
H6essential
H4essential
Video Assist 5 3G
Video Assist 7 12G HDR
Video Assist 5 12G HDR
Video Assist 7 3G
Ninja Ultra
Ninja
Shogun Ultra
RM-30BP
ZC-LP
VZRL100
RM-1BP
VZ-Pro-L
VZ-Stealth-LX
MVR901ECPL
VZ-Rock
ZFC-L
REC-LA
ECM-MS2
ECM-678
MKE-600
VideoMic NTG
PODCASTER
MKE-40EW
AT875R
AG-MC200G
ECM-VG1
ECM-680S
ECM-674
ECM-673
Livetrak L-20
Livetrak L-8
Livetrak L-12
MON-CINE-7
CT770S
CK550S
CK710-12G
P2150S
CT7S
Shinobi 7
LCD-28FK-12G
LCD-T5
LCD-17FH-R
CK1016S
CK1250
Sumo19 SE
BM7IIDS
LH7P
LH7H
LCM215-HDR+
Shinobi II
LS 1200 4-Light Bracket
DJI Video Transmitter
FLOW6500
FLOW500
MARS 4K
FLOW10K
LB-SU90Cx2+S-3602U KIT - Swit
LB-SU98x2+S-3602U KIT - Swit
LB-SU75x2+S-3602U KIT - Swit
PDT-FP1B
Lens
Zoom Ratio: 20x
Focal Length: f=7.71-154.21 mm
Focal Length (35 mm Format Equivalent): 24-480 mm
Iris: F2.8-F4.5
Focus Range (from the front of the lens): Approx. 10 mm to 8
Filter Diameter: 72 mm
Camera Section
Imaging Device (Type): 1" (13.2 mm x 8.8 mm) Exmor RS CMOS sensor
Number of Pixels (Total): Approx. 20.9 megapixels
Number of Pixels (Effective): Approx. 14.0 megapixels max
Built-in ND Filter: Linear variable ND (1/4 ND - 1/128 ND)
Minimum illumination: 1.2 lx (typ)
Optical Low-Pass Filter: Yes
Shutter Type: Electronic shutter
Shutter Speed: 1/8000 sec to 64F
Slow & Quick Motion (S&Q): Yes
White Balance: 2000 K - 15000 K
Gain: -3 to 36 dB (Every 1 dB)
Base Look: S-Cinetone, ITU709, 709tone, s709, 709 (800%), S-Log3, HLG (Live / Mild / Natural)
Image Stabilization (Type): Lens shift mechanism and electronic
Image Stabilization (Mode): Active / Standard / Off
Lens Compensation: Peripheral Shading, Chromatic Aberration, Distortion
ISO Sensitivity: ISO 250-16000 equivalent (Using SDR Reset look), AUTO (ISO 250-16000, selectable lower limit and upper limit)
Focus Type: Fast Hybrid AF (Phase-detection AF / contrast-detection AF)
Focus Point: Max. 475 points (Phase-detection AF)
Focus Recognition Target: Human
Other Focus Features: AF Subj. Shift Sensitivity, AF Transition Speed, AF Assist
Proxy Recording: Yes
Clear Image Zoom: Approx. 1.5x (4K), approx. 2x (HD)
Interface
Audio Input: 3.5 mm Stereo minijack, XLR 3-pin (Female) x2
Multi Interface Shoe: Yes (With Digital Audio Interface)
Built-in Microphone: Built-in, stereo
Headphone Terminal: Yes (3.5 mm Stereo mini jack)
Built-in Speaker: Built-in, monaural
Recording System (Audio): LPCM 4ch (48 kHz 24 bit)
HDMI Output: HDMI connector (Type-A)
TC/UB: Yes
USB Terminal: Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)
DC Input: Yes
Remote: Yes (2.5 mm Stereo mini-mini-jack)
Remote (Wireless): Yes (Bluetooth remote control)
Wired LAN: Yes (1000BASE-T, 100BASE-TX, 10BASE-T)
Wireless LAN (Built-in): Yes (Wi-Fi Compatible, IEEE 802.11a / b / g / n / ac (2.4 GHz band / 5 GHz band))
PC Interface: Mass-storage / MTP
Other Function: FTP Transfer Func. (Wired LAN (USB-LAN), USB Tethering, Wi-Fi)
Monitoring
Type (Viewfinder): 1.0 cm (0.39-type) electronic viewfinder (XGA OLED)
Number of Dots (Viewfinder): 2,359,296 dots
Magnification (Viewfinder): Approx. 1.07x with 50 mm lens at infinity, -1 m-1
Diopter Adjustment (Viewfinder): -4.0 to +3.0 m-1
Eye Point (Viewfinder): Approx. 22 mm from the eyepiece lens, at -1 m-1
Type (LCD Screen): 8.8 cm (3.5-type) type TFT
Touch Panel (LCD Screen): Yes
Number of Dots (Total) (LCD Screen): 2,764,800 dots
Streaming
Protocols: RTMP, RTMPS, SRT
Video Data Format: MPEG-4 AVC / H.264 | MPEG-H HEVC / H.265
Video Resolution: 3840 x 2160 (using RTMP / RTMPS), 1920 x 1080, 1280 x 720
Audio Data Format: AAC-LC 2ch (16 bit 48 kHz)
General
Camera Type: Solid state memory camcorder
Battery: BP-U35, BP-U70, BP-U100
Battery: Yes (Available with USB Type-C Terminal. USB Power Delivery compatible)
Power Requirements: DC 19.5 V
Normal Power Consumption: 16 W
Maximum Power Consumption: Approx. 32 W
Operating Temperature: 0 to 40 °C (32 °F to 104 °F)
Storage Temperature: -20 to 60 °C (-4 °F to 140 °F)
Battery Operating Time (Continuous Shooting): 120 minutes
Recording Format (Video): XAVC S: MPEG-4 AVC / H.264 | XAVC HS: MPEG-H HEVC / H.265
Mass (Main Body Only): Approx. 1930 g (4 lb 4.1 oz.)
Mass (including Supplied Accessories and Battery): Approx. 2380 g (5 lb 4.0 oz.)
Dimensions (W x H x D): Approx. 175.6 x 201.3 x 371.1 mm (7 inch x 8 inch x 14 5/8 inch)
1x 1" Exmor RS CMOS Sensor NXCAM Camcorder, 20x optical, 30x Clear Image Zoom in 4K
1x AC Adapter
1x Power Cable
1x BC-CU1 Battery Charger
1x Rechargeable BP-U35 Battery
1x LCD Sun Hood
1x Lens Hood
1x Viewfinder
1x Microphone Mount
1x Cold Shoe Kit
