Z Cam

6970130770347
Full Frame 6K Cinema Camera 6K 60fps* & 4K 120fps max, 15 stops 12G-SDI
go to the technical sheet
₦ 7,988,431.43

₦ 7,431,099.00 VAT excl.

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 798,843.14
Available in 24 days
Not sure if this is the right product for you? Talk to a consultant
Z-Cam Full Frame 6K Cinema Camera 6K 60fps* & 4K 120fps max, 15 stops 10-bit color

- Full-Frame CMOS Sensor, up to 6K60 Video
- Detachable 5" Touchscreen Monitor
- Interchangeable Canon EF Lens Mount
- Optional ARRI PL and Leica M Mounts
- 12G-SDI and HDMI Outputs
- 15-Stop Dynamic Range, 10-Bit Encoder
- Integrated V-Mount Plate
- 4 User-Assignable Buttons
- Genlock and Timecode Support

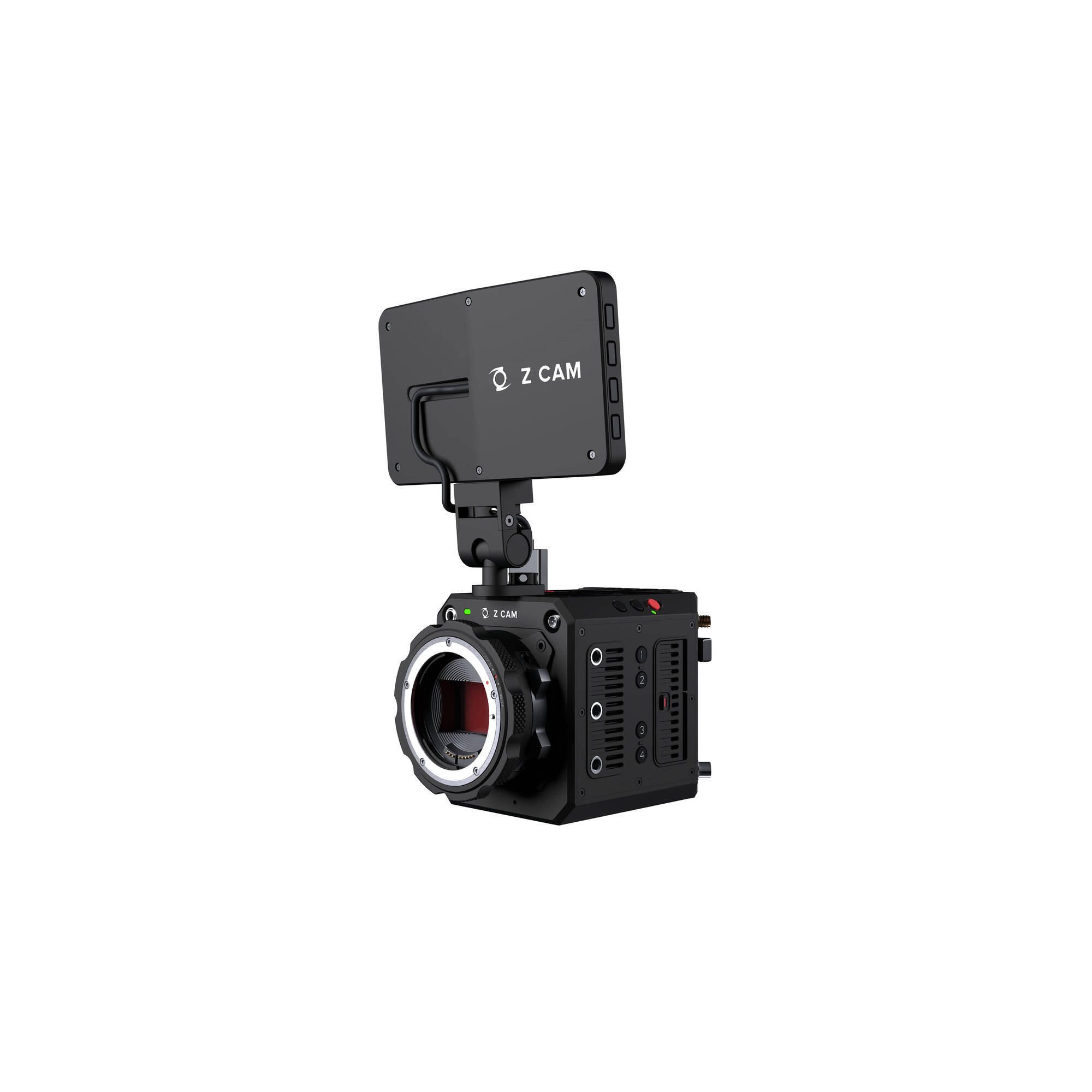

Add both versatile lens compatibility and a detachable onboard monitor to your cine-style capture with the Z CAM E2-F6 Pro Full-Frame Cinema Camera.
This compact camera comes with a Canon EF lens mount and can be used with separately available ARRI PL and Leica M mounts.
The E2-F6 Pro captures up to 10-bit 6K60 full-frame video and offers both pro 12G-SDI and HDMI video outputs.
The included 5" touchscreen monitor is detachable and can be tilted for optimal viewing.
It captures a nominal 15 stops of dynamic range, supports timecode and genlock, and incorporates four user-assignable buttons along the side of the camera.

Firmware Update 0.9.9
- Adds raw recording over HDMI: ProRes raw recording on Atomos Ninja V.
- Adds DCI 4K 4096 x 3072 50 fps maximum frame rate.
- Optimizes the timecode function.
- Provides additional bug fixes.

Interchangeable Lens Mount
Packaged with an interchangeable Canon EF lens mount, the Z CAM E2-F6 Pro can also be used with separately available Leica M and ARRI PL mounts, expanding your options to include a wide array of both still and cine-style lenses.

6K Capture and Recording
- Record up to 10-bit 6K60 and DCI 4K120 video internally and via 12G-SDI output.
- Z-Log2, 10-bit color, ProRes 422, 422 LT, 422 Proxy, and ProRes 422 HQ options.

Cfast 2.0 and Zblade Media
- Capture your video using Cfast 2.0 cards or custom Zblade 1, 2, or 4TB cards.
- Zblade cards capture ProRes 422 HQ at rates up to 6K60 and 4K120.
- Data recovery services are offered by Exascend for Zblade cards.

V-Mount and LEMO Power
The E2-F6 Pro can be powered by a separately available battery using the built-in V-mount plate or via a separately available power adapter and the 2-pin LEMO port.

Imaging
Lens Mount: Canon EF
Lens Communication: Yes
Sensor Resolution: Effective: 26 Megapixel (6064 x 4040)
Image Sensor: 37.09 x 24.75 mm (Full-Frame) CMOS
Image Stabilization: No
Built-In ND Filter: No
Capture Type: Video Only

Exposure Control
Shutter Type: Electronic Rolling Shutter
ISO Sensitivity Range: 400 to 2500 in Manual, Auto Mode (Extended: 400 to 51,200)
Shutter Angle: 1 to 360°
Advertised Dynamic Range: 15 Stops
White Balance:
- Range: 2300 to 7500K
- Presets: Preset Manual, Manual, Auto

Video Capture
Internal Recording Modes:
MOV/MP4/ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT 4:2:2 10-Bit
6064 x 4040 up to 30.00 fps
4848 x 4040 up to 30.00 fps
5376 x 4032 up to 30.00 fps
5760 x 3240 up to 48.00 fps
6064 x 3196 up to 48.00 fps
4096 x 3072 up to 50 fps
4064 x 2712 up to 60.00 fps
5120 x 2700 up to 60.00 fps
4800 x 2700 up to 60.00 fps
6064 x 2560 up to 60.00 fps
4096 x 2160 up to 90 fps
3840 x 2160 up to 90 fps
4096 x 1728 up to 120 fps
1920 x 1080 up to 120 fps
Video Output:
10-Bit via SDI/BNC / HDMI
4096 x 2160 up to 90 fps
3840 x 1920 up to 90 fps
1920 x 1080 up to 120 fps
Fast-/Slow-Motion Support: Yes
Gamma curve: FLAT, HDR-HLG, Rec709, Z-Log2
Audio Recording: MOV: 16-Bit 48 kHz AAC Audio
IP Streaming: Yes

Interface
Media/Memory Card Slot: Single Slot: CFast / ZBlade (CFast 2.0)
Video I/O:
- 1x BNC (12G-SDI) Output
- 1x HDMI 2.0 Output
Audio I/O:
- 1x 1/8" / 3.5 mm TRS Stereo Input
- 1x 1/8" / 3.5 mm TRS Stereo Output
Power I/O:
- 1x LEMO 2-Pin (12 to 18VDC) Input
- 1x LEMO 2-Pin (12VDC up to 3 A) Output
Other I/O:
- 1x USB-C (Camera Interface) Control/Data Input/Output
- 1x RJ45 (Gigabit Ethernet, LAN) Control/Data/Monitor/Video Input/Output
- 1x BNC (Genlock, Timecode)
- 1x Proprietary (Serial)
Wireless: 5 GHz Wi-Fi 4 (802.11n)
Mobile App Compatible:
Yes: Android & iOS
App Name: Z CAM
Global Positioning (GPS, GLONASS, etc.): No

Monitor
Display Type: Primary Monitor: Included External 5" Touchscreen LCD
Resolution: Primary Monitor: 1920 x 1080

Viewfinder
Type: Optional, Not Included

Focus
Focus Mode: Manual Focus Only

Power
Battery Type: V-Mount

Environmental
Operating Conditions: 32 to 72°F / 0 to 40°C
Storage Conditions: -4 to 140°F / -20 to 60°C

General
Shoe Mount: No
Tripod Mounting Thread: 1/4"-20 Female (Bottom)
Accessory Mounting Thread: 1x 1/4"-20
Material of Construction: Aluminum
Dimensions (W x H x D): 6.2 x 4.3 x 4.2" / 156.7 x 108.5 x 107.9 mm
Weight: 3.70 lb / 1.68 kg (With Monitor)

1x E2-F6 Pro Full-Frame Cinema Camera with 5" Touchscreen Monitor (Canon EF)
1x 5" Touchscreen Monitor
1x D-Tap Power Cable
