PB-M45S

45Wh Pocket V-mount Battery Pack


- Tiny V-mount battery, Pocket fit
- 45Wh/3.1Ah fly-friendly capacity
- Max 150W/12A constant load
- 1x D-tap output & charging input
- 1x USB 5V/2A output
- 5-step LED power indicator
- Power info for both SONY & RED
- Wire-Free internal technic
- Multiple circuit protections

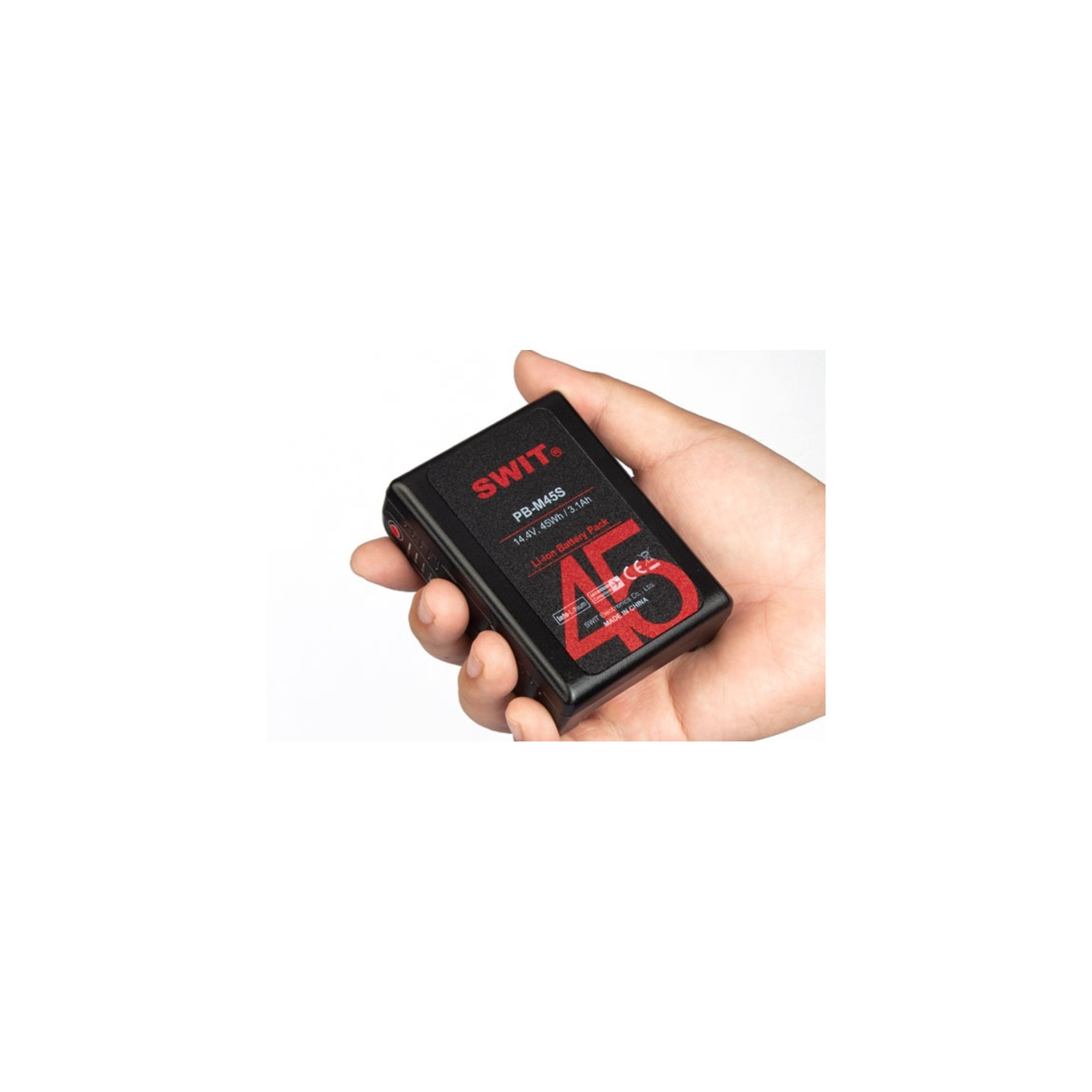

Tiny V-mount battery

Pocket fit size

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras.
PB-M45S Pocket V-mount battery is a perfect solution!
It's only a DV battery size, 45Wh capacity, and without any compromise on the DC sockets!


45Wh Fly Friendly

150W/12A constant high load

PB-M45S consists of 4pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 45Wh / 3.1Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The Constant load is as high as 150W, 12A, applicable for high power lightings.


Built-in D-tap and USB

The pocket size PB-M45S still has D-tap and USB sockets built-in. The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.


5-LED Power Indicator

Low battery warning
PB-M45S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.


3A Fast Charging

PB-M45S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A. The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M45S: Approx. 75 min
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M45S: Approx. 75 min
Charge 2x PB-M45S: Approx. 2 hours


Hot-Swap Adaptor

You can use 2x PB-M45S hot-swapable on cam- eras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.



Wire-Free Internal Tech

PB-M45S has innovative "Wire-Free" internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

HS Code 8507600090
