Eartec

Intercom Ligh-Industrial Wireless EVADE series bi-aurali with hard bag
go to the technical sheet
₦ 3,158,725.00

₦ 2,938,349.00 VAT excl.

Available 1 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant
Eartec EVADE EVX422 Light-Industrial Full-Duplex Wireless Intercom System with 2 Single-Ear Headsets (2.4 GHz)

Eartec EVADE are a new class of Light Industrial wireless team communication systems designed for professional crews that need instantaneous, hands free voice contact. Operating in full duplex mode they allow crews to talk simultaneously and hands free. They feature deluxe padding and a sleek, fully adjustable headband that provide outstanding comfort. EVADE have the capacity to link up to nine users within a 400-yard range enhancing coordination, productivity, and safety.

EVADE headsets are self-contained with a compact full duplex transceiver built inside the ear cups eliminating wires and belt packs. Each complete intercom includes one "MAIN" headset that relays the digital signals generated by up to eight "Remotes". The headsets link automatically without a base station which makes the EVADE series easy to operate, reliable, and affordable.

A digital wireless technology known as Frequency Hopping controls the operation of all EVADE intercoms. These specialty headsets monitor the surrounding environment, and actually switch or "HOP" automatically to clear channels. This is the same wireless protocol utilized by the U.S. Armed Forces to keep communications completely secret and interference free.

EVADE headsets are offered in three models, Single and Dual speaker with traditional over the head band, and the Xtreme a deluxe dual ear hard hat compatible model. Since they are field programmable it is easy to expand an existing system to meet the growing needs of your crew.

Excellent performance - Range up to 1/4 mile

Radio installed inside earcup, no wires or beltpacks

Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable

Auto Mute Boom - Mute when in UP position

Volume Control - Simple up / down push button adjustment

Sealed for use outdoors in inclement conditions

Light Industrial Design - Wear comfortably for an 8 hour work shift

Field Programmable - Start small and add to your system as needed


Frequency Range 2407MHz-2475MHz

Data Rate 1MBPS

Bandwidth 150KHz

Channel Spacing 1MHz

Modulation Type GFSK

Gain of Antenna 0db

Duplexing Time Division Duplex (TDD)

Speech Encoding ADPCM/16kbit/s

RF Accessing Time Division Multiple Access (TDMA)

Power Supply Rechargeable Li-polymer Battery @ 3.7v/1000mAH

RF Output Power 80mw

Operating Temperature 0 - +50º C

Operating Relative Humidity Range 30% - 90%

Operation Current 110mA

Operation Time 8h

Range 350m (open field)

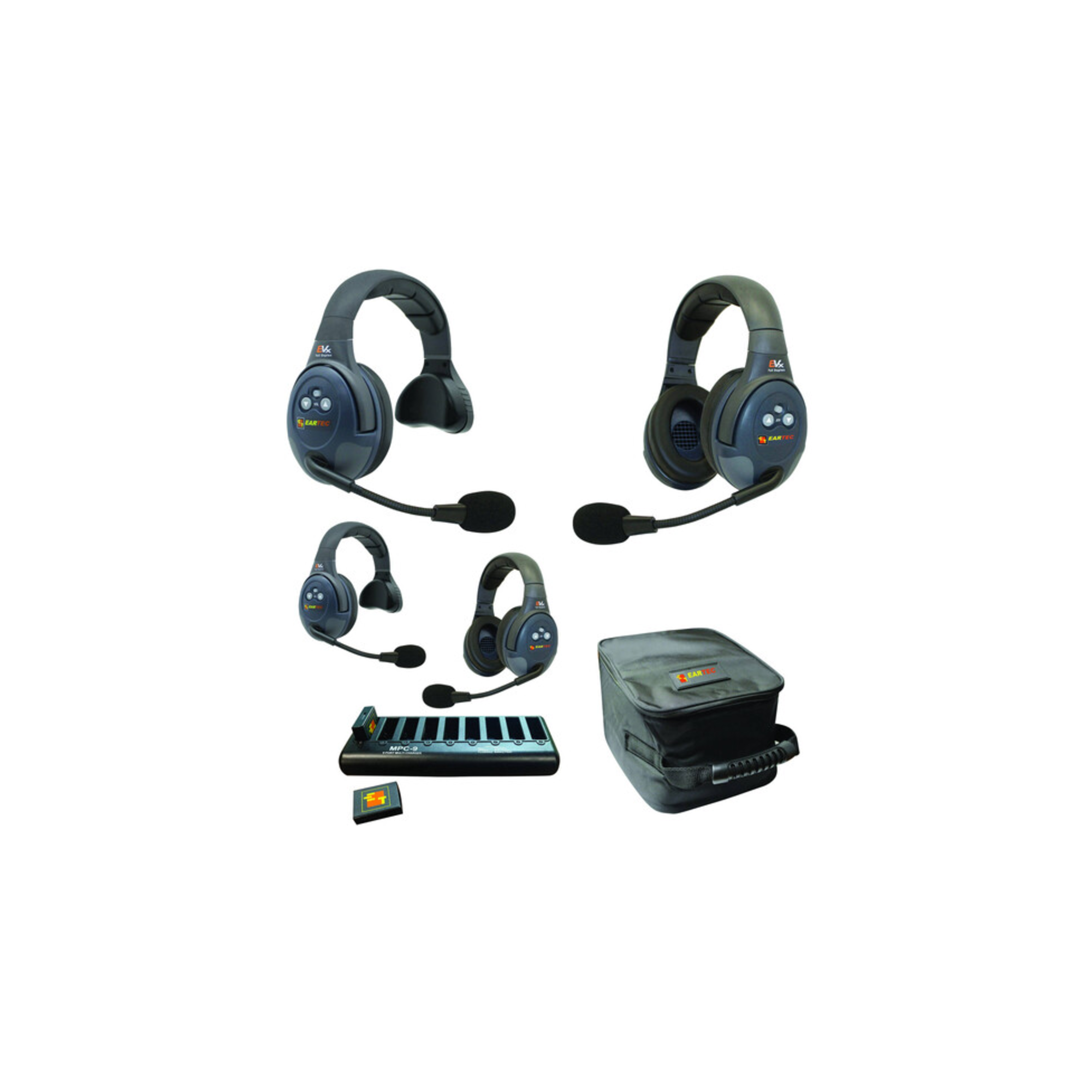

Eartec EVADE EVX422 Light-Industrial Full-Duplex Wireless Intercom System with 2 Dual-Ear and 2 Single-Ear Headsets (2.4 GHz)
Eartec EVADE EVXSM Light-Industrial Full-Duplex Wireless Intercom Single-Ear Master Headset(2.4 GHz)
Eartec EVADE EVXSR Light-Industrial Full-Duplex Wireless Intercome Single-Ear Remote Headset (2.4 GHz)
2 x Eartec EVADE EVXDR Light-Industrial Full-Duplex Wireless Intercom Dual-Ear Remote Headset (2.4 GHz)
Eartec Evade 9-Port Multi-Charger with US Plug Adapter
4 x Eartec Evade Rechargeable 3.7 Volt Lithium Polymer Battery
Soft Padded Case
