FS215-S4K - SEETEC

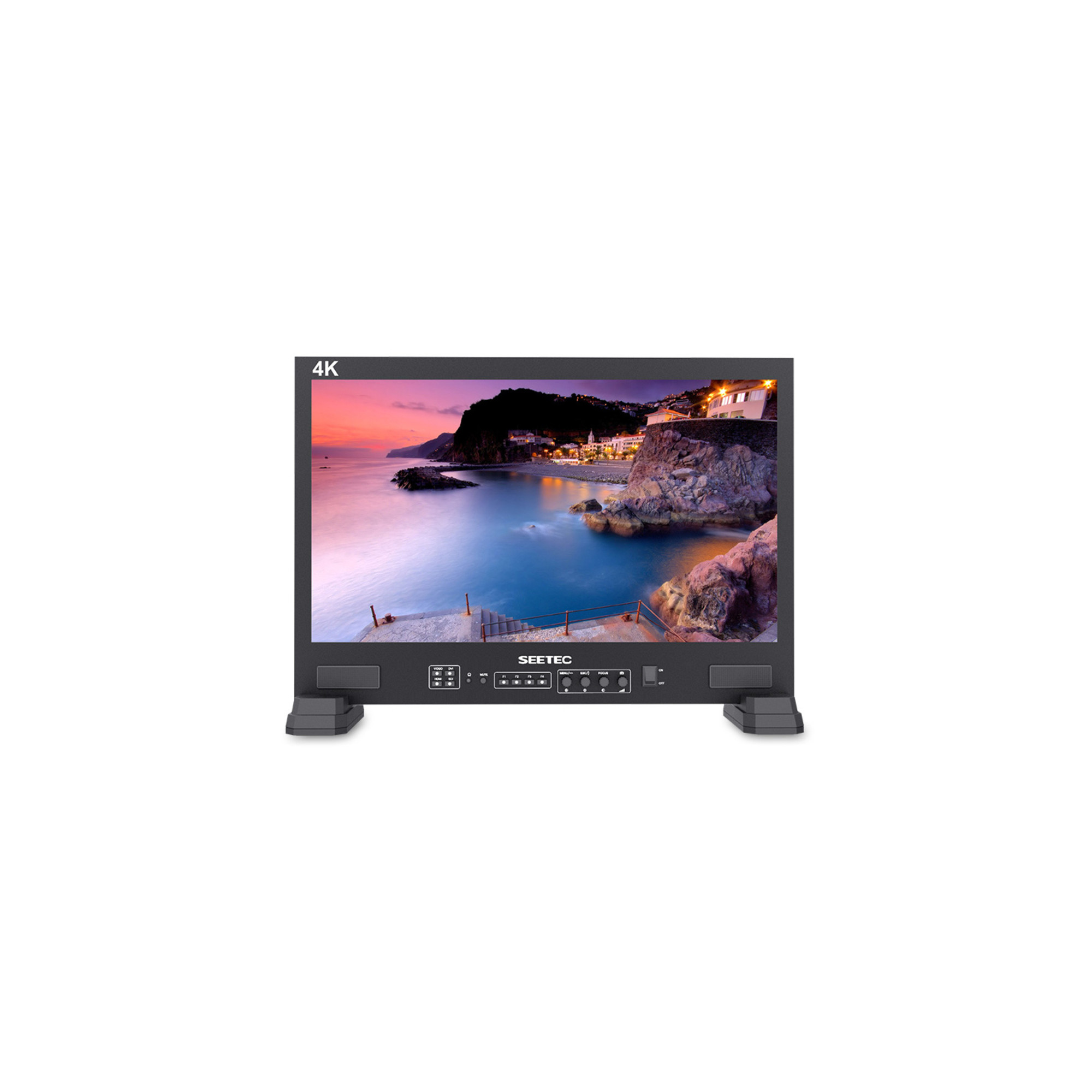

SEETEC 21.5" Broadcast Studio Monitor IPS Full HD 1920x1080, Aspect ratio: 16:9, brightness: 250cd/m².
Input : 3G-SDI, HDMI, Video, Audio(L/R), DVI-I, RS485
Output : 3G-SDI, HDMI, Video, RS485, Stereo Headphone, Speaker(built-in)

Special Features:
* UMD and Text-Tally Display (TSL 3.1/4.0 Protocol)
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
* Built-in LED tally indicators (Red, Green, Yellow) optional
* Power using included 12-volt supply or use standard 4-pin XLR

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

Camera Mode Function
It will be full screen under camera mode.

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%,2.35:1)

Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.
