FLOW2000

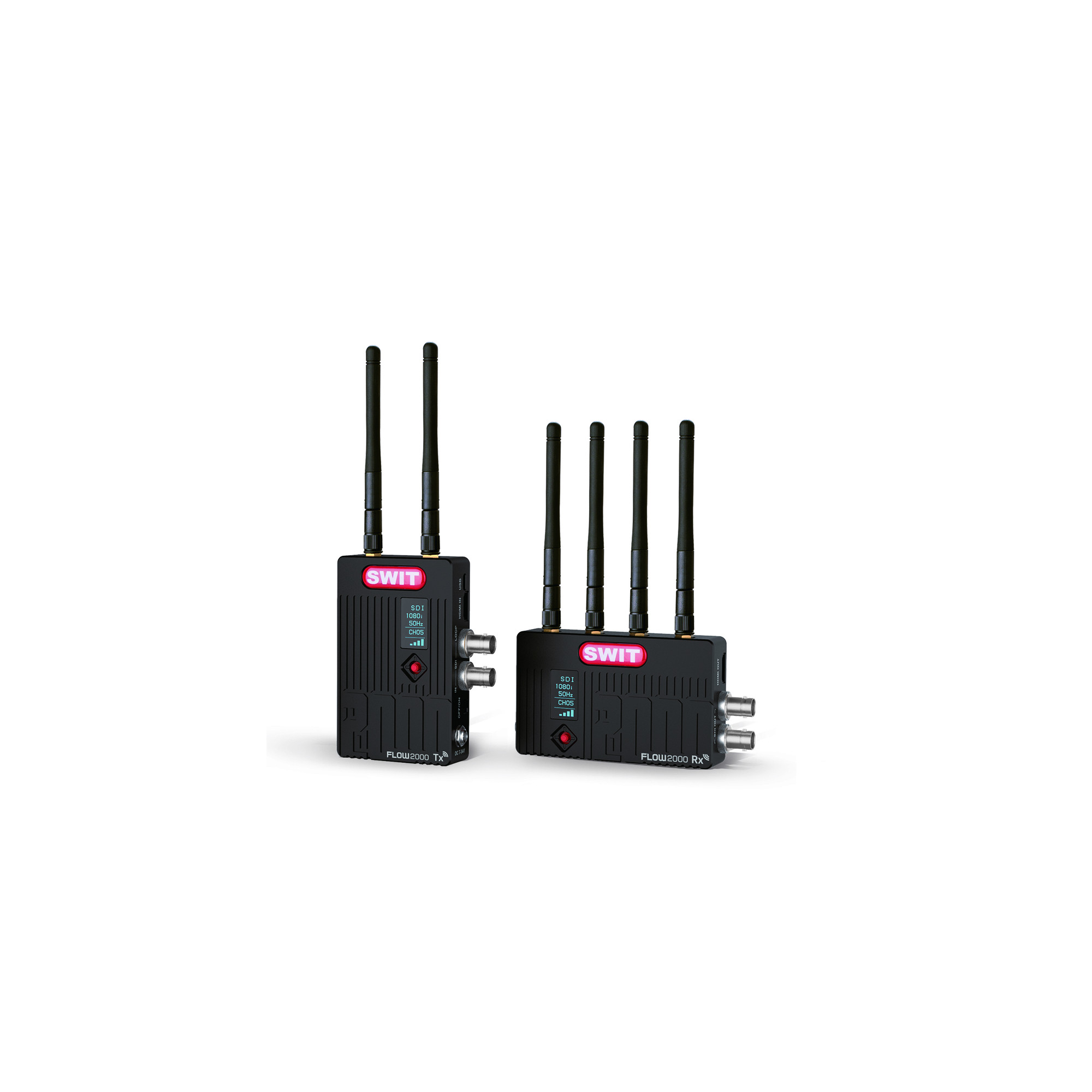

FLOW2000 Kit Wireless
Wireless HD video transmission set (1x transmitter, 1x receiver) with 3G-SDI / HD-SDI / SD-SDI and HDMI. All received signals are re-clocked to ensure a formally perfect signal and strict adherence to color reproduction. The system supports multicast with unlimited receivers with AES128 encryption to protect the footage. Power consumption is less than 8W. Both TX and RX can be powered by the standard Sony Type LP-F series or by an external 7-34 volt lockable DC input, for example from a D-Tap source.

Consisting of:
- 1x transmitter 3G-SDI / HDMI (TX)
- 1x receiver 3G-SDI / HDMI ( RX)
- 1x DC adapter cable Anton Bauer (D-Tap)
- 2x AC / DC adapter
- 6x external antenna
- 1x articulated arm with 1/4 "thread
- 1x carrying case

Main Features:
- OLED display for displaying the video format and Frequency
- Range up to 600 m (in visual contact)
- External antennas
- Frequency range: 5.17 - 5.23 GHz and 5.75 - 5.83 GHz
- DFS (Dynamic Frequency Selection)
- Encryption: AES128
- 2-channel audio transmission
- Power supply transmitter / receiver via NP-F battery
- Transmitter also has a DC In 7 - 34 V
- Use of up to 4 sets in one location possible
- Up to 4 receivers can be coupled with a transmitter (Multicast)
- Transmission power : 125 mW
- 2 years manufacturer 's warranty
