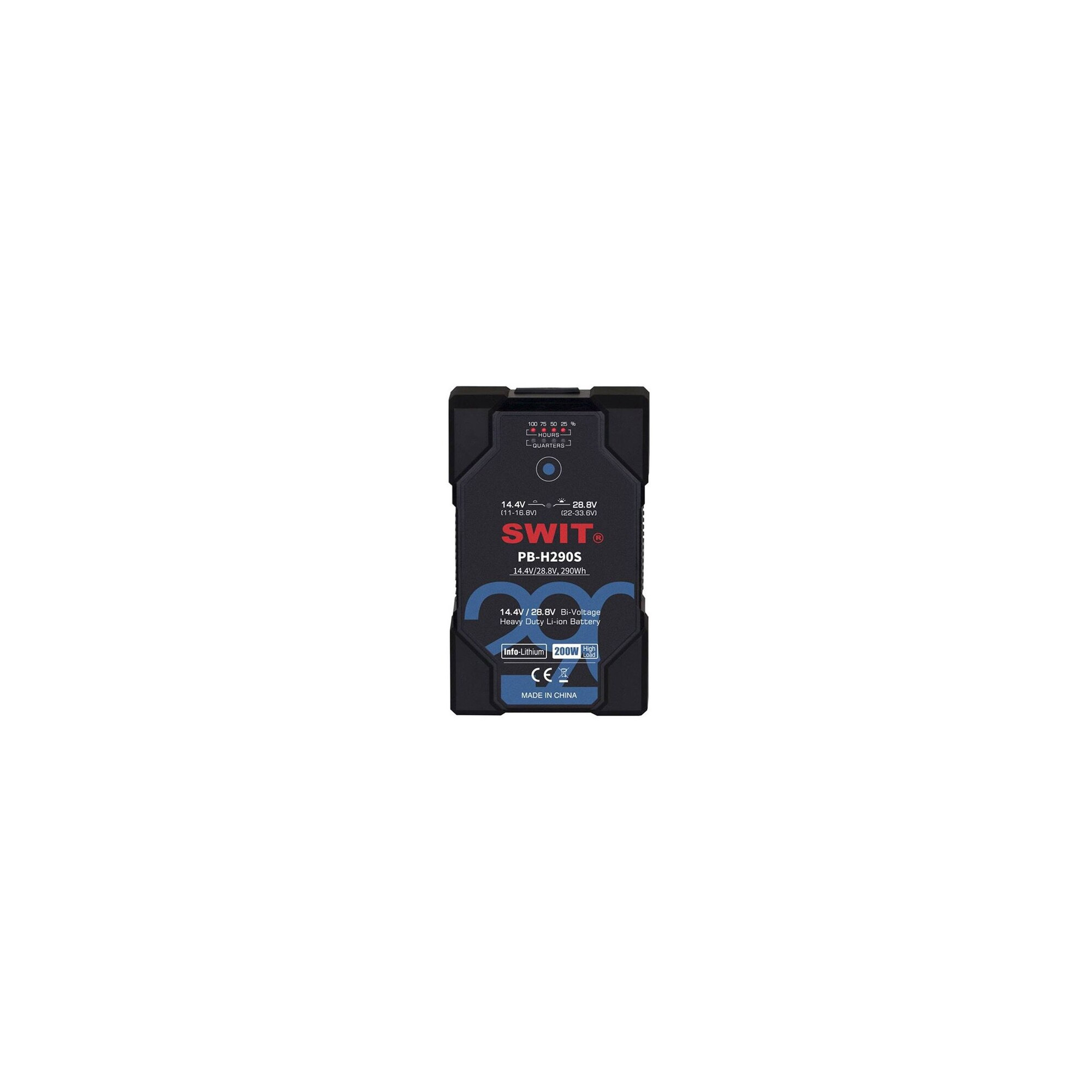

PB-H290S

Power ENG and cine cameras with V-mount bays using this V-mount PB-R290S+ 290Wh Heavy-Duty IP54 Battery Pack from SWIT. The PB-R290S+ features an IP54 weatherproof rating for use outdoors and has a 290Wh 14.4V capacity. A constant high load of 250W/20A can keep your ENG camera rolling for eleven hours.

290Wh Lithium-Ion V-Mount Battery
IP54 Rating for Outdoor Use
250W/20A Load
Powers ENG Cameras for 11 Hours
D-Tap DC Output with 10A Current
8-LED Power Gauge, SMBUS Technology
6A Fast Charging
Dual Housing and Rubber Cover


You can even power additional accessories at the same time using the integrated D-Tap DC output and its 10A current. An 8-stage LED gauge keeps you appraised of the battery's power status, and an internal SMBUS technology can display the remaining minutes on your Sony or RED camera's viewfinder. Once depleted, 6A fast charging with a compatible charger can get it back up and running in 3.8 hours.
Features at a Glance

Intelligent SMBUS compatible with SONY and RED camera info systems to display remaining minutes on the viewfinder
Powers ENG cameras for 11 hours
Powers ARRI ALEXA cine camera for 3.5 hours
Supports 6A fast charging via SWIT PC-P461A or S-3812A chargers
Charges from 0 to 80% in 2.5 hours, fully charged in 3.8 hours
The battery can survive a 4.9' drop thanks to dual housing and rubber cover
