Hollyland

6970758744171
Hollyland 450ft (150m) 4K UHD wireless video receiver 5.1 GHz–5.8 GHz
go to the technical sheet
€ 321,03

€ 298,63 VAT excl.

Available 2 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant
Hollyland 450ft (150m) 4K UHD wireless video receiver 5.1 GHz-5.8 GHz

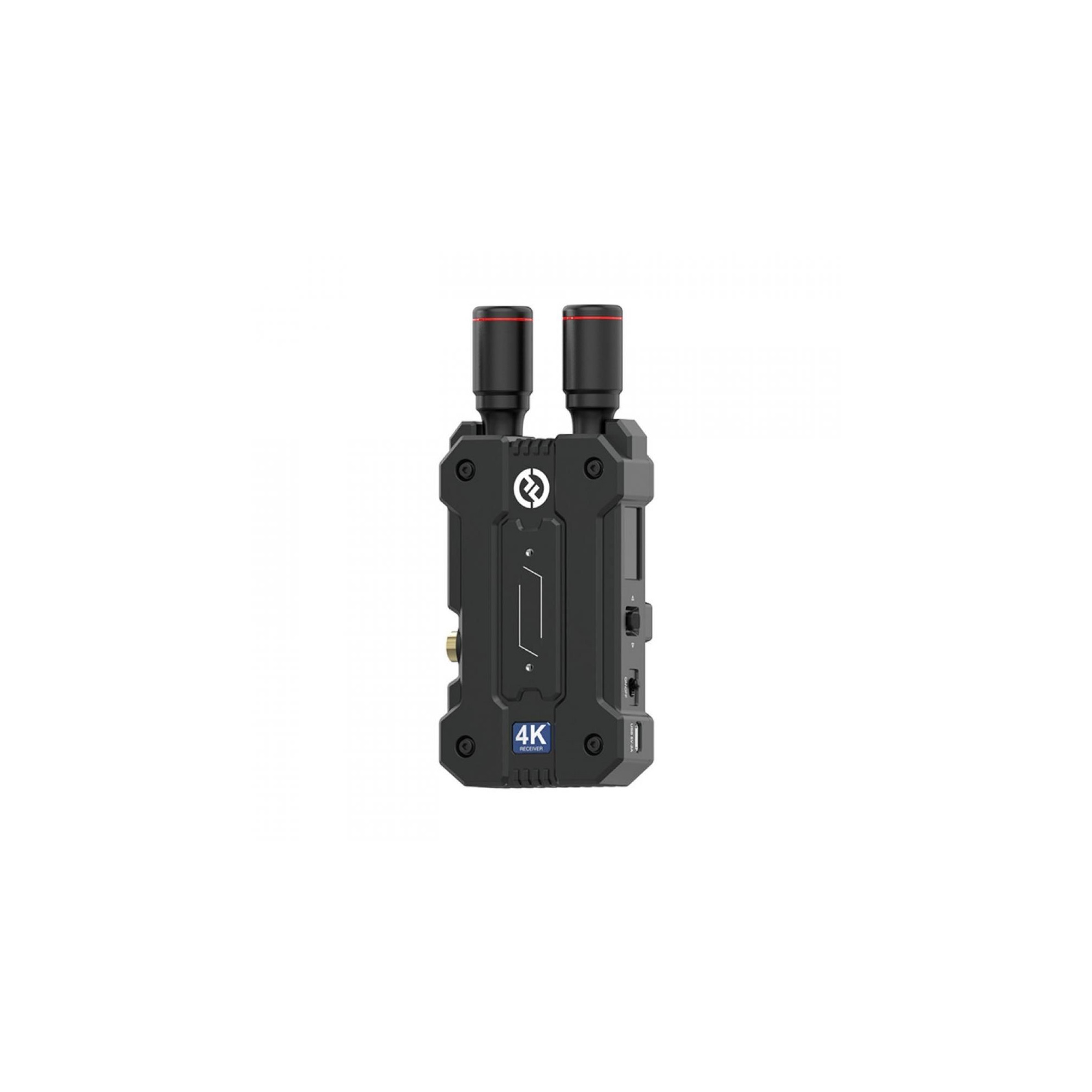

Single Mars 4K receiver capable of receiving a 4K video signal at 30fps over a distance of 150m with a latency of only 60ms from the respective transmitter.
The Mars 4K system is designed to offer the best synergy between high performance, compatibility and reliability and extends the already well-known family of Hollyland wireless transmitters and receivers with a product with unique characteristics.
Of course, the unit also supports FHD and HD formats with variable frame rates: 24p, 30p and 60p.

The performance of the new dual-core codec chip also contributes to the range of 150 m as the crow flies and the ultra-low latency of only 0.06 s, capable of reaching a data transfer rate of 12 Mbps.
Channel assignment options allow for interference-free transmission; intelligent channel scanning helps determine which ones are busy and select which ones are free.
Mars 4K also enables HDMI and SDI inputs and outputs for extended connectivity and compatibility. SDI offers greater frame rate flexibility for both broadcast and production standards, another of the system's standout features.

The transmitter is compatible with up to two receivers or four mobile devices with the appropriate app installed.
Four mobile devices allow four people (such as the director, producer, lighting manager and sound engineer) to monitor the shoot at the same time.
Mars 4K features the proverbial resistance to corrosion and wear that Hollyland customers already know, for exceptional durability.
Further features are the "bullet" style antennas, the color LCD display and its multiple DC power options: from 6V to 16V, with NP-F batteries and USB Type-C charger.


Interface:
Antenna (RP-SMA M.)
HDMI 1.4 b output (Type-A F.)
3G-SDI output
DC input (2.0 mm core socket)
USB Type-C (USB 2.0 OTG)

Voltage:
DC input: 6 V - 16 V
USB Type-C: 5 V / 2.5 A
(not supporting the QC and PD protocols)
NP-F battery: 6.8 V - 8.4 V

Power consumption: <5 W (typical)

Weight: 223 g (7.9 oz) (excluding the antennas)

Dimension: 115 x 65 x 32 mm (4.5 x 2.5 x 1.3)

Operating frequency: 5.1 GHz-5.8 GHz

Modulation mode: 802.11n

TX power: 21 dBm (max.)

RX sensitivity: -90 dBm

Bit rate: 8 Mbps-20 Mbps
Latency: 0.06 s (test data when 1080p60 signals are transmitted in a laboratory)
Range: 450 ft (150 m) (test data in an open, interference-free outdoor environment)
Bandwidth: 20 MHz
Audio format: 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b
Operating temperature: -10° C to 60° C
Storage temperature: - 40° C to 60° C
ESD protection: Contact discharge: ±6kV; air discharge: ±8kV (test data)
