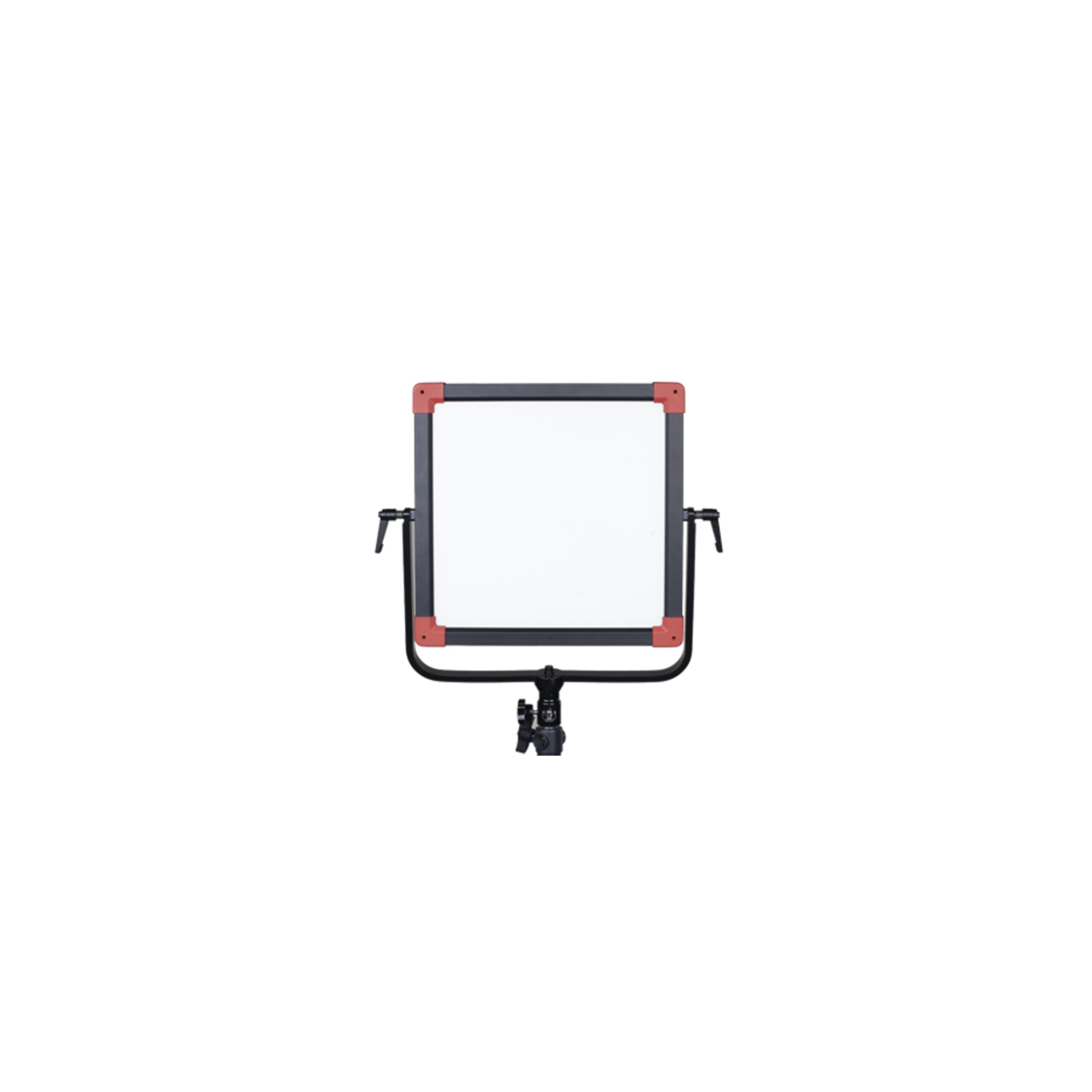

PL-E60D

Swit 60W Portable Bi-color SMD Panel LED Light, 2700K~6500K, CRI 98, TLCI 99, DMX V-Mount

° 320pcs Edge Mounted LEDs
PL-E60D is specially designed for field portable lighting applications.
320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60D can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

° Laser Dots 90° Light Guide
The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there's reflection board, there's still a lot of light lost.
SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost.
Then the slim edge mounted light can also be high brightness.

° 1500 Lux @ 1 meter (0-100% flick-free dimming)
PL-E60D outputs 60W power, feeds 1500Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels.
The effective beam angle reaches 70°, bounded by 50% decline.
PL-E60D also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

° Bi-color Temperature, 2700K-6500K continuously adjustable
PL-E60D alternated with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between 2700K and 6500K.

° High Color Render Index, CRI Ra 98; TLCI 99
CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source.
And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor (Max value 100).
The normal LED light has 80-85 CRI or TLCI, while PL-E60 offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colors.

° LCD Screen Display, Dimmer / color / DMX channel, battery info
The rear LCD screen can display the current dimmer percentage, color temperature value, DMX channel and CH channel, and remaining battery indications.

° DMX512 control
PL-E60D adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.
Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512
