Bolt 6 XT MAX DELUXE SET VM
Teradek
818264027295
12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount) 5000' / 1524 m
go to the technical sheet
₦ 30,699,419.00
₦ 28,557,599.00 VAT excl.
Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount), Wireless Range 5000' / 1524 m (Line-of-Sight) - 10-2320-V
Transmit and receive lossless HD video up to 5000' line-of-sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek.
The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available.
The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI.
A V-mount battery plate is included to power each unit with a professional V-mount battery.
The transmitter sends up to 4K60 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers.
The system features improved metadata, range, and compatibility over its predecessors.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The Deluxe kit includes a carry case as well as multiple cables and mounting options.
- Supports New 6 GHz Frequency Band
- Transmit Video up to 5000' Line-of-Sight
- HDMI and 12G-SDI Inputs and Outputs
- V-Mount Battery Plate on Both Units
- Transmit up to 4K60 Video
- 10-Bit 4:2:2 Support, No Delay
- Compatible with Bolt 6/4K TX/RX Units
- AES-256 Encryption, 7 x Antennas
- Bluetooth Mobile App, Spectrum Analyzer
Transmit and receive lossless HD video up to 5000' line-of-sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek.
The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available.
The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI.
A V-mount battery plate is included to power each unit with a professional V-mount battery.
The transmitter sends up to 4K60 video to any Bolt 4K series receiver, and it can also simultaneously transmit to up to six receivers.
The system features improved metadata, range, and compatibility over its predecessors.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The Deluxe kit includes a carry case as well as multiple cables and mounting options.
- Supports New 6 GHz Frequency Band
- Transmit Video up to 5000' Line-of-Sight
- HDMI and 12G-SDI Inputs and Outputs
- V-Mount Battery Plate on Both Units
- Transmit up to 4K60 Video
- 10-Bit 4:2:2 Support, No Delay
- Compatible with Bolt 6/4K TX/RX Units
- AES-256 Encryption, 7 x Antennas
- Bluetooth Mobile App, Spectrum Analyzer
Bolt 6 LT RX 10-2262
₦ 3,436,666.00
VAT included
Available in 34 days
Inputs / Outputs
_____________________
Antenna I/O:
- Transmitter: 4x RP-SMA Female
- Receiver: 5x RP-SMA Female
Video I/O:
- Transmitter: 1x HDMI 2.0 Input
- Transmitter: 1x BNC (12G-SDI) Input
- Transmitter: 1x BNC (12G-SDI) Loop Output
- Receiver: 1x HDMI 2.0 Output
- Receiver: 1x BNC (12G-SDI) Output
Embedded Audio:
- HDMI: 2-Channel
- SDI: 2-Channel
Audio I/O: No
Power I/O: Transmitter/Receiver: 1x LEMO 2-Pin (28 VDC) Input
Other I/O:
- Transmitter/Receiver: 1x USB-C 2.0 Input
- Transmitter/Receiver: 1x LEMO 5-Pin 2.0 Output
Encryption: 256-Bit AES
Wireless
_____________________
Wireless Range : 5000'' / 1524 m (Line-of-Sight)
Channel Bandwidth : 40 MHz
Frequency Range:
- Non-DFS Frequencies: US: 5.94 to 6.42 GHz | US: 5.19 to 5.23 GHz | US: 5.75 to 5.79 GHz
- DFS Frequencies: US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: No
Bluetooth: Yes
Mobile App Compatible: Yes: Android & iOS
Cellular Support: No
Format Support
_____________________
Video Format:
° HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
° SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format : 2-Channel 24-Bit 48 kHz
Timecode Support : Yes
Power
_____________________
Input Power : 6 to 28 VDC
Power Consumption:
- Transmitter: 20 W
- Receiver: 18 W
Environmental
_____________________
Environmental Protection: No
Certifications: No
Operating Temperature: 32 to 72°F / 0 to 40°C
General
_____________________
Material of Construction: Aluminum, Polycarbonate
Dimensions:
- Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm
- Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm
Weight:
- Transmitter: 12.1 oz / 344 g, Excluding Battery Plate
- Receiver: 15.2 oz / 430 g, Excluding Battery Plate

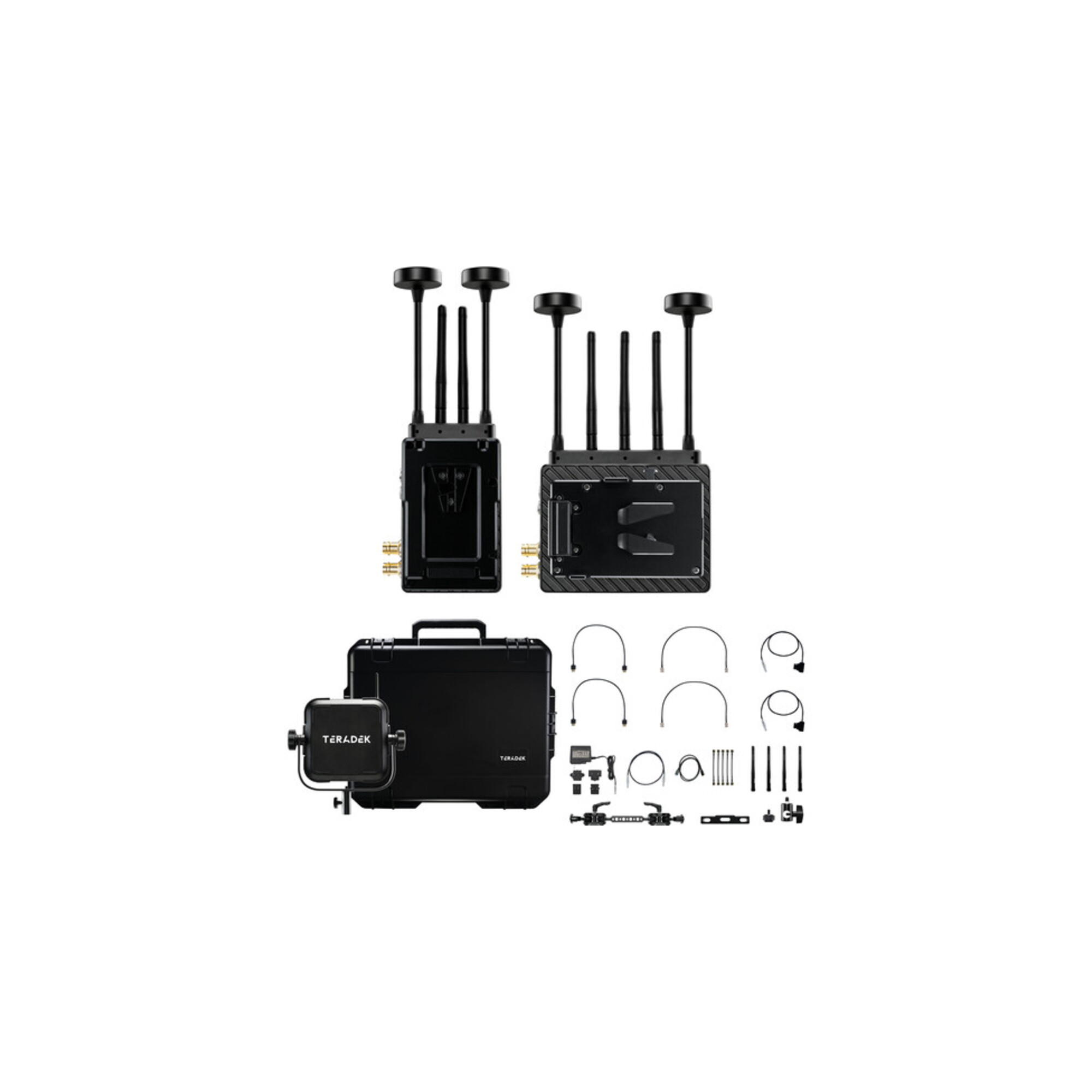

1x Bolt 6 XT MAX 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
1x Bolt 6 XT MAX 12G-SDI/HDMI Transmitter (V-Mount)
1x Bolt 6 XT MAX 12G-SDI/HDMI Receiver (V-Mount)
1x Bolt 6 XT MAX 12G-SDI/HDMI Receiver (V-Mount)
1x Antenna Array
2x 2-Pin to D-Tap Power Cable (18")
1x Micro-USB to USB Type-A Cable (36")
2x HDMI Type A Cable (18")
2x BNC Cable (18")
2-Pin Cable for ALEXA (18")
1x 18W AC Adapter with Cable (6'')
2x Bolt Battery Cover (Front)
2x Bolt Battery Cover (Rear)
5x RP-SMA Cable (4")
1x 1/4"-20 Light Stand Adapter
1x Shoe Adapter
1x Screw Set
1x Allen Wrench
1x Wooden Camera Monitor Mount
1x Carry Case
5x Standard Antenna
4x Mushroom Antenna
