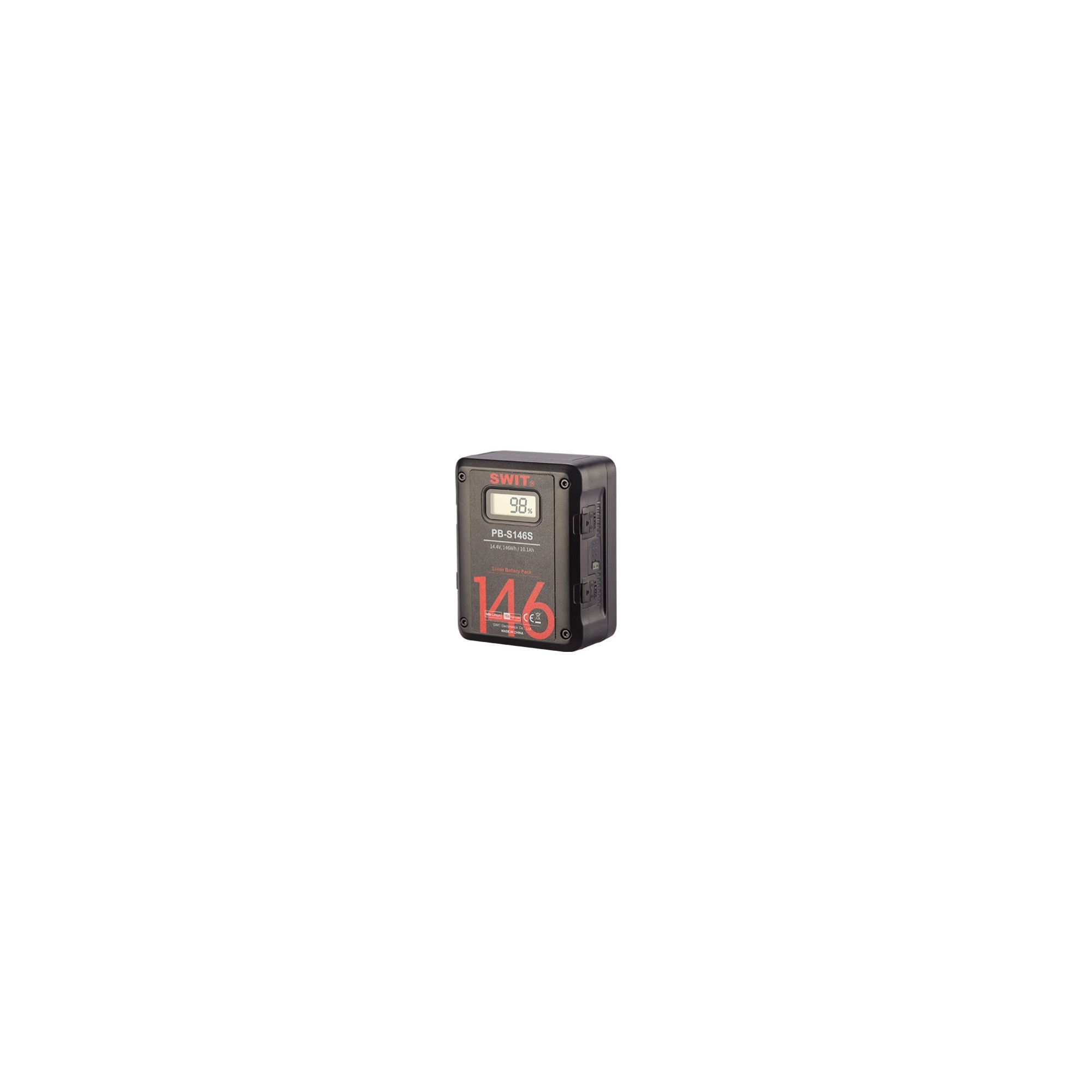

PB-S146S

The Battery PB-S146S consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 146Wh / 10.1Ah high capacity. Can run approx 5 hours for normal 30W cameras. It provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 18A.

The Battery provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.


Key Features:

Square shape design for Cine-cameras

146Wh, 10.1Ah larger capacity

At least 200W, 16A constant high load

2× D-tap output sockets (120W/10A in total)

1× USB 5V/2A power output sockets

LCD display accurate remaining run time

Display power info in both SONY & RED

Multiple circuit protections
