Tilta

6972835230430
Nucleus M Wireless Lens Control System with 2 Channels
go to the technical sheet
₦ 2,381,823.00

₦ 2,215,649.00 VAT excl.

Available 1 unit in 4 Days
Manuale: Download
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant
The Nucleus-M Lens Control System allows connections between the hand unit or handles to the motors which are completely wirelesses (no MDR required). It can be used with a gimbal, shoulder mount system or even a drone. The Nucleus-M features a wireless range of 1 1/4 miles which is ideal for long distance drone work.
This system is compatible with DSLR and cinema cameras and has full control of focus, iris and zoom for cinema lenses.
Each motor has a wireless module to receive signal without the MDR, which will help save space and set-up time

It comes with:
1x Hand Unit
2x Wireless Motor
2x Wireless Handles
1x Motor Power Cables
1x Motor Connection Cable
2x Accessories for Wirelss Handles
1x Battery Charger
1x Case

The batteries are not included. So they must be bought separately. Please among all accessories.
The system requires 6 batteries to work, a couple more as spare are suggested

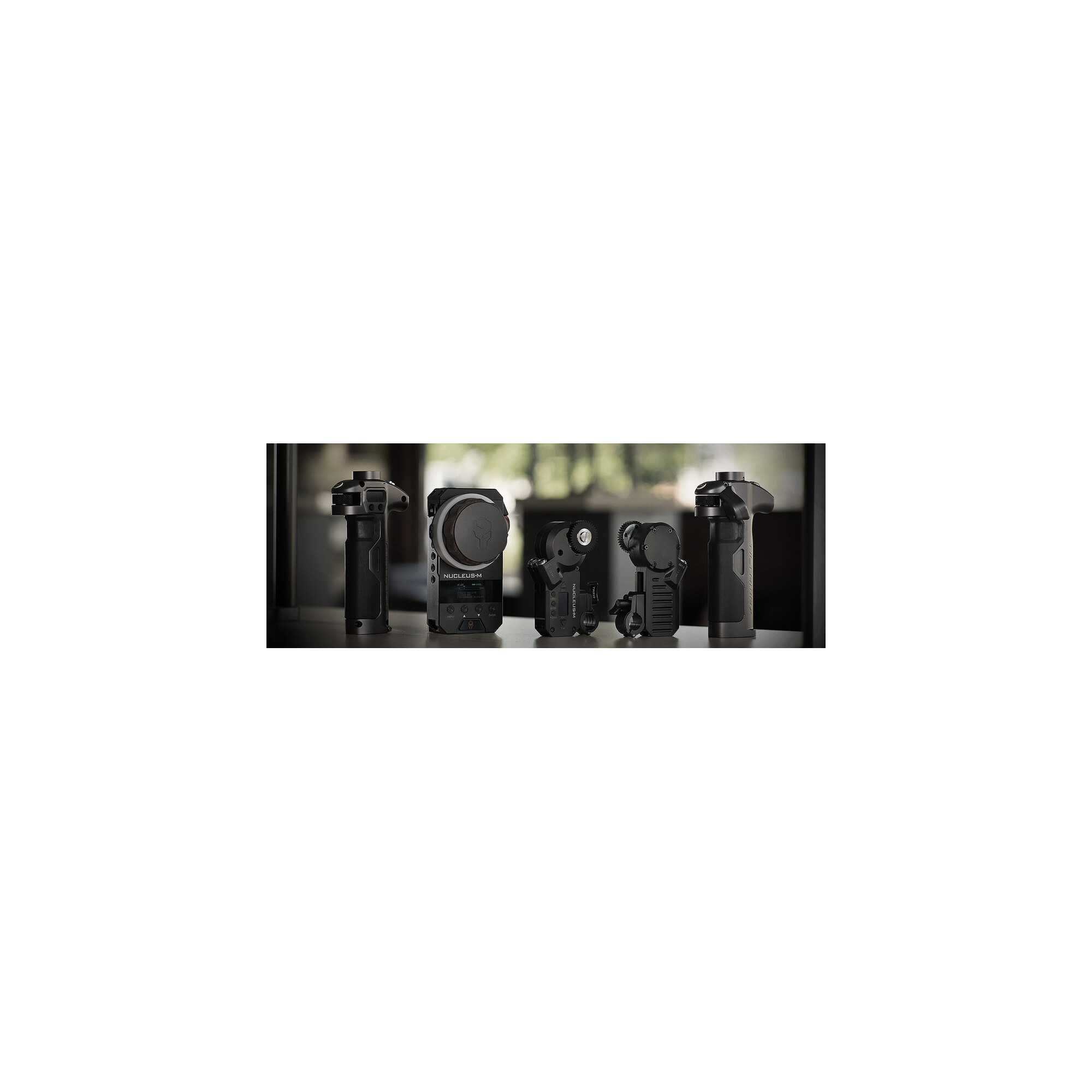

The Tilta Nucleus-M Wireless Follow Focus System features a 1000' transmission range, and comes with two lens drive motors with built-in wireless receivers, a FIZ hand controller, and two handgrips—one to control focus, and the other iris and zoom. The lens drive motors each feature a cine standard 0.8 MOD drive gear and two 7-pin connectors, which enables you to freely swap or interchange each motor. The motors power by daisy-chaining using the 7-pin cables, and each motor includes a 19mm rod clamp with 19 to 15mm reducing bushing.

The FIZ hand controller allows you to control focus, iris, and zoom, and includes a neck strap. The handgrips feature adapters that enable mounting the controllers onto ARRI-compatible rosettes or onto 25/30mm diameter rods, such as those used with gimbals. The system comes packed in a waterproof hard case that protects your gear during transport and storage.

Please note that batteries are not included and must be sourced separately.

The system features three ranges: low, medium, and high. It supports up to 15 channels to select from, and the controllers pair with each motor via the motor ID.

The FIZ hand unit can control three channels (focus, zoom, and iris), as well as override the handgrips.

The motors can calibrate on lenses with or without hard stops, such as a photo lens with follow focus gears.

The motors feature cine standard 0.8 MOD 32 pitch drive gears. Each motor includes a 19mm rod clamp and a 15 to 19mm adapter bushing, allowing you to mount the motors onto either a 15mm or 19mm rod.

The motors power from a D-Tap connector, and then pass power by daisy-chaining via the 7-pin connectors with the included cables.

The FIZ hand controller and each handgrip power via two 18650 3000mAh, 3.7V Li-ion batteries.

The batteries in the FIZ hand controller will last for more than 10 hours, and up to 48 hours in each handgrip, when idle.




TA-FGR-5658
Tilta

TA-FGR-5658

₦ 83,634.00 VAT included
Available 3 unit in 4 Days
WLC-T03-RA-02
Tilta

WLC-T03-RA-02

₦ 186,780.00 VAT included
Available 1 unit in 4 Days
RS-03-AM
Tilta

RS-03-AM

₦ 143,081.00 VAT included
Available in 14 days
TA-FGR-4648
Tilta

TA-FGR-4648

₦ 83,634.00 VAT included
Available in 14 days
TA-FGR-8587
Tilta

TA-FGR-8587

₦ 83,688.00 VAT included
Available in 14 days
TA-FGR-6264
Tilta

TA-FGR-6264

₦ 6,449.00 VAT included
Available 2 unit in 4 Days
RS-01-KF
Tilta

RS-01-KF

₦ 136,309.00 VAT included
Available in 34 days
RS-03-RD
Tilta

RS-03-RD

₦ 143,081.00 VAT included
Available in 14 days
TA-FGR-4951
Tilta

TA-FGR-4951

₦ 30,421.00 VAT included
Available 2 unit in 4 Days
TA-FGR-7577
Tilta

TA-FGR-7577

₦ 83,634.00 VAT included
Available in 14 days
WLC-T03-FIZ
Tilta

WLC-T03-FIZ

₦ 769,215.00 VAT included
Available in 24 days
RS-02-AM
Tilta

RS-02-AM

₦ 143,081.00 VAT included
Available in 14 days
TA-FGR-8890
Tilta

TA-FGR-8890

₦ 83,634.00 VAT included
Available in 14 days
TA-FGR-5961
Tilta

TA-FGR-5961

₦ 30,421.00 VAT included
Available in 14 days
WLC-T03MA
Tilta

WLC-T03MA

₦ 215,375.00 VAT included
Available in 14 days
WLC-T03-RS
Tilta

WLC-T03-RS

₦ 188,930.00 VAT included
Available in 14 days
TA-FGR-6668
Tilta

TA-FGR-6668

₦ 6,449.00 VAT included
Available 1 unit in 4 Days
TA-FGR-8183
Tilta

TA-FGR-8183

₦ 30,475.00 VAT included
Available in 14 days
RS-01-LANC
Tilta

RS-01-LANC

₦ 143,081.00 VAT included
Available in 14 days
TA-FGR-5355
Tilta

TA-FGR-5355

₦ 6,449.00 VAT included
Available 1 unit in 4 Days
FR-T03
Tilta

FR-T03

₦ 17,091.00 VAT included
Available in 14 days
WLC-T03-HL
Tilta

WLC-T03-HL

₦ 585,551.00 VAT included
Available in 24 days
TA-FGR-7880
Tilta

TA-FGR-7880

₦ 30,421.00 VAT included
Available 2 unit in 4 Days
RS-02-SY
Tilta

RS-02-SY

₦ 145,446.00 VAT included
Available in 14 days
TA-FGR-6971
Tilta

TA-FGR-6971

₦ 83,634.00 VAT included
Available in 14 days
RS-02-RD
Tilta

RS-02-RD

₦ 143,081.00 VAT included
Available in 14 days
TA-FGR-7274
Tilta

TA-FGR-7274

₦ 83,634.00 VAT included
Available 4 unit in 4 Days
RS-01-FJX
Tilta

RS-01-FJX

₦ 136,309.00 VAT included
Available in 34 days
RS-01-USBC
Tilta

RS-01-USBC

₦ 141,200.00 VAT included
Available in 14 days
M4 Allen Key
Tilta

M4 Allen Key

₦ 17,898.00 VAT included
Available in 14 days
M6 Allen Key
Tilta

M6 Allen Key

₦ 17,898.00 VAT included
Available 2 unit in 4 Days

Download

Manuale

Download (18.97MB)

Wireless Range 1000'' / 304 m
Material of Construction Aluminum alloy, stainless steel, ABS plastic, rubber, Brazilian Rosewood
Batteries Required
Hand Controller: 2 x 18650
Handgrip: 2 x 18650 in each

Note: Battery must have a raised anode (positive) end, not a flat end
Power Batteries
3.7 VDC, 3000 mAh

Battery Charger
100 to 240 VAC, 50/60 Hz, 0.15 A
5 VDC, 2 A
Dimensions Motor
4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm

Battery
Diameter: 0.6875" / 1.7463 cm
Length: 2.5625" / 6.5088 cm
Weight Motor
0.42 lb / 0.19 kg
0.50 lb / 0.22 kg (with 15mm rail adapter)
0.49 lb / 0.22 kg (with 19mm rail adapter)

FIZ Hand Unit
0.97 lb / 0.44 kg (with focus disk, no batteries)
1.16 lb / 0.53 kg (with focus disk and batteries)

Handgrips
Right Grip: 0.58 lb / 0.26 kg (no batteries or adapters)
Left Grip: 0.53 lb / 0.24 kg (no batteries or adapters)

Rosette
Rosette Male to Handle Grip Adapter: 0.16 lb / 0.07 kg
25 mm/30 mm Gimbal to Handle Grip Adapter: 0.10 lb / 0.04 kg
