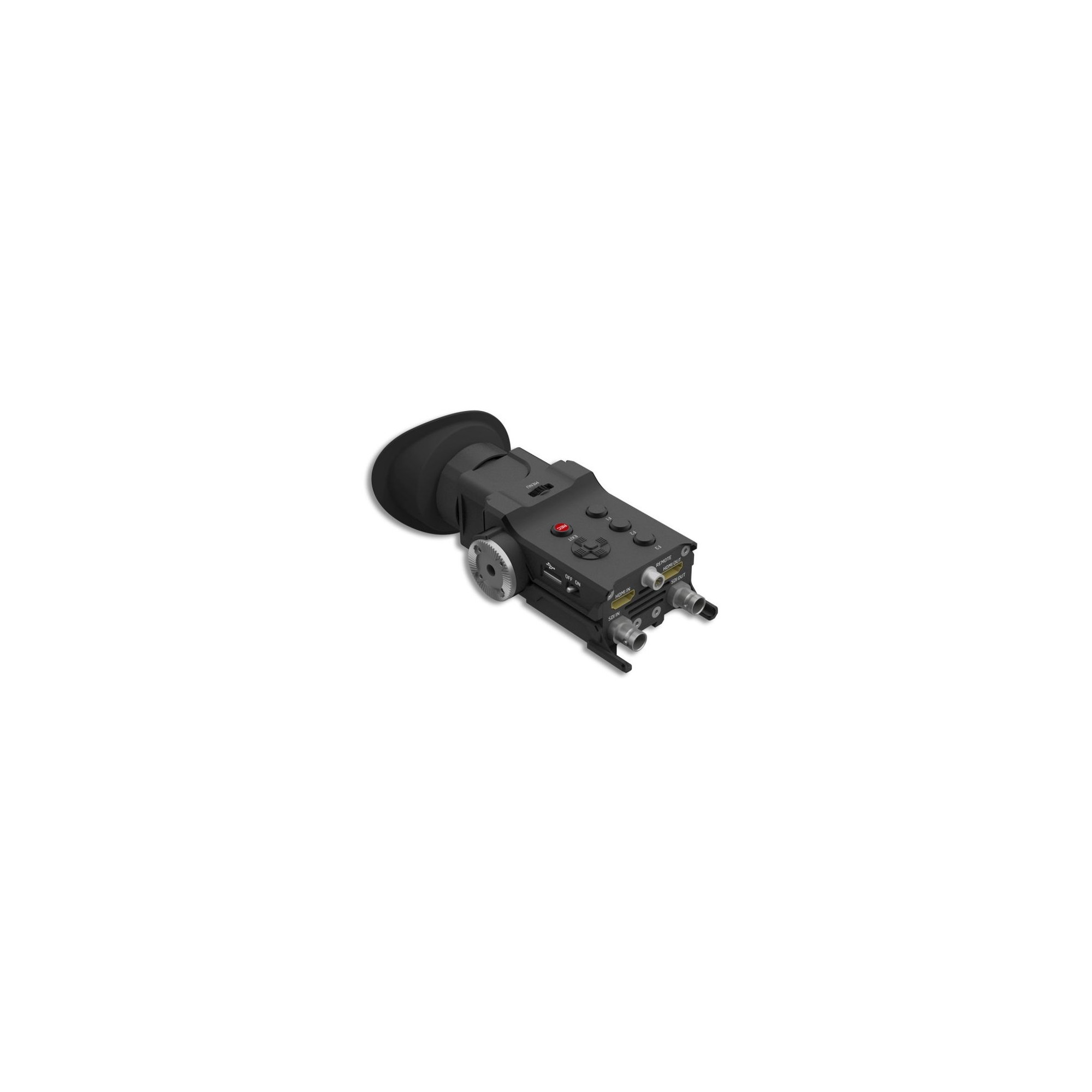

OEYE-RED EVF

This new OEYE-RED EVF supports 3G-SDI input / output and simultaneously 4K HDMI input / output, specially for RED camera.
The Portkeys OEYE-RED EVF, a new and advanced electronic Oled viewfinder with extensive functions and possibilities.

1920 x 1080 Resolution Micro-OLED EVF
Allows RED DSMC2 Menu Control
3G-SDI and HDMI Inputs/Loop Outputs
Built-In +8 to -3 Adjustable Diopter
100,000:1 Contrast, 200 cd/m² Brightness
Rosette Mount Allows Rotation
Synchronization with RED Fan Mute
Waveform, 3D LUTs, Audio Meters, Zoom
False Color, Peaking, Grids, HSD Flip
Durable Aluminum Construction

If you're in need of a display that can help simplify your RED camera rig, add a high-resolution OLED EVF with RED camera menu control with this OEYE 4K 3G-SDI/HDMI EVF from PORTKEYS. The OEYE electronic viewfinder offers a bright, sharp OLED micro-display with a comfortable eyepiece to view your camera video, and it also allows you to view and control the menu navigation and overlays on your RED DSMC2 camera right from the EVF.

Video connectors include HDMI input and loop output that support resolutions up to DCI 4K24, and 3G-SDI input and loop output that support resolutions up to 1080p60, so you can preview your cinema video in high-resolution as well as send it to external displays. The OEYE connects to the camera control port using one of the included LEMO-type control cables, and it uses RCP (REDLINK Command Protocol) for communication.

The durable aluminum chassis is lightweight at only 14 oz, and it features mounting threads on the bottom and an ARRI-style rosette on the side that offer multiple mounting options and 360° rotation. The unit also features cooling fans that synchronize with the RED camera fan mute feature when silence is required on set.
RED Camera Menu Control Compatibility
RED MONSTRO 8K VV
RED HELIUM 8K S35
RED GEMINI 5K S35
RED DRAGON-X 6K S35
SCARLET-W 5K
Key EVF Features
0.71", 1920 x 1080 micro-OLED EVF display with comfortable eyecup
200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
HDMI input and output support resolutions up to DCI 4K24
3G-SDI input and output support resolutions up to 1080p60
5-pin LEMO-type remote control output port
Built-in adjustable +8 to -3 diopter
Fan synchronization with RED camera
Rosette mount on the side
Durable aluminum construction
Monitoring and Image Analysis Tools
3D LUT
Audio meters
Pixel-to-pixel
Brightness
Contrast
Chroma
Backlight
Zoom
OSD flip
Grids
Peaking
False color
Waveform
Sharpness
Tint
Color temperature
Aspect
Check field
H/V delay
Guides
Crosshairs
Zebra
Underscan

In the Box

PORTKEYS OEYE 4K 3G-SDI/HDMI EVF with RED Camera Menu Control
4-Pin to D-Tap Power Cable
5-Pin to 5-Pin Power Cable
4-Pin to 3-Pin Control Cable
9-Pin to 3-Pin Control Cable
SDI Cable
Mounting Clamp
Allen Wrench
Plastic Storage Case
