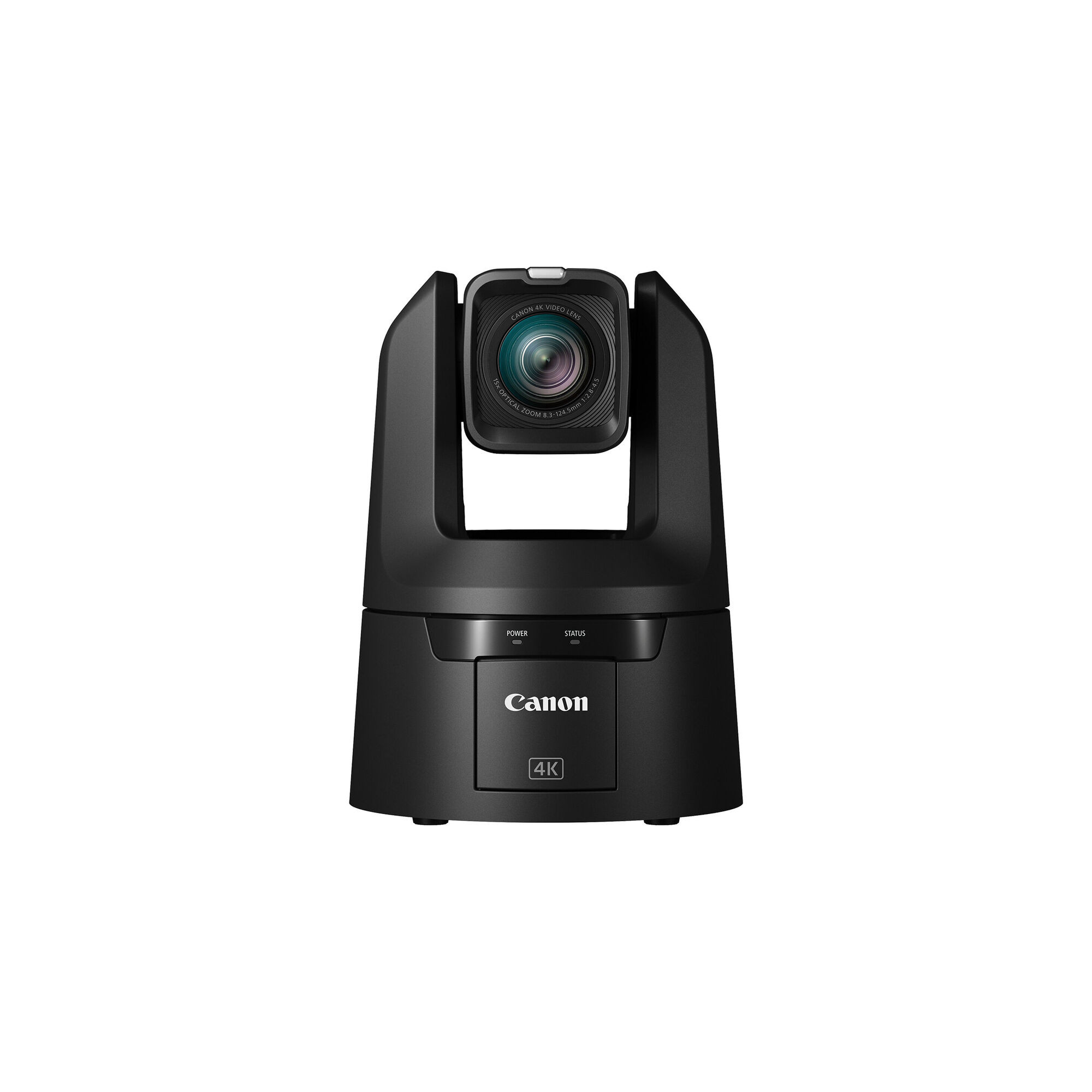

CR-N700 BK Auto Tracking
Canon
€ 8.900,02 VAT excl.
Additional features of the CR-N700 PTZ camera include deep learning autofocus, 12G-SDI connectivity, flexible connectivity, and compatibility with multiple streaming and control protocols. Region of Interest (ROI) cropping capabilities allow you to highlight areas within the 4K image.
1 "CMOS sensor.
The CR-N700 is equipped with a 1 "Canon 4K CMOS image sensor that supports HDR image quality up to 4K60p 4: 2: 2 10-bit.
Canon DIG! C DV7 processor
Incorporates Canon's DIG! C DV7 image processor for high image quality, advanced performance and convenient operation. This advanced technology provides the power and speed of image processing that enable functions such as 4K UHD video capture and precise hybrid AF.
EOS iTR AF
Intelligent detection and recognition autofocus (EOS iTR AF) helps the camera focus on faces, even when a subject turns to look away from the camera
Advanced zoom lens
Supported IP and control protocols include NDI | HX, SRT, FreeD, RTMP / RTMPS, RTP / RTSP, Canon XC and standard communication options
The CR-N700 features a 15x / 20x digital optical zoom with an advanced 30x zoom in HD that allows you to take tight telephoto shots when physically approaching is not desired or possible
Camera Fiber Converter
VC-100UHD
Studio Fiber Converter
CONVCMICHS03GWPSU HDMISDI
CONVMASA4K
CONVMBHS24K6G
CONVMASA
CONVMCAUDS4K
CONVCMICSH03G SDI HDMI 3G
MD-HX
CONVMCSAUD
CONVMOF12G
CONVCMICSH03GWPSU SDIHDMI
ATEM CAMERA CONVERTER
CONVMBSH4K6G
CONVBDCSDIHDMI03GPS
CONVMUDCSTDHD
CONVMCSAUD4K
CONVCMICHS03G HDMI SDI 3G
CONVMAAS2
ATEM Studio Converter 2
CONVBDCSDIHDMI03G HDMISDI
TZ-001 Lightweight Stand 3stge
KPTZ-001 PTZ Lightweight Stnd
T640B
LX-ePed
LX-ePed Studio
HDMI HDMI 05
HDMI HDMI 002 BK
RCC-6-SDI
HDMI HDMI 002
RCC-25-SDI
HDMI HDMI 05 slim
RCC-200-SDI
RCC-10-HDMI
HDMI HDMI 005 MF
HDMI HDMI 05 BK
HDMI HDMI 002 slim
HDMI HDMI 003 BK
RCC-16-HDMI
HDMI HDMI 100M Fiber
RCC-3-HDMI
RCC-10-SDI
RCC-50-SDI
HDMI HDMI 020 4K
HDMI HDMI 005
HDMI HDMI 015 4K
HDMI HDMI 010 4k
RCC-25-HDMI
HDMI HDMI 001 BK
HDMI HDMI 001
HDMI HDMI 003
HDMI HDMI 003 MF
RCC-3-SDI
RCC-100-SDI
HDMI HDMI 030 A
HDMI HDMI 001 slim
HDMI HDMI 010
RCC-6-HDMI
Belden 1505A HD-SDI 100 - Adcom Cable
Belden 1505 HD-SDI 050 AVV - Adcom Cable
Belden 1505A HD-SDI 075 AVV - Adcom Cable
Belden 1505A HD-SDI 025 AVV - Adcom Cable
Belden 1505A HD-SDI 100 AVV - Adcom Cable
TriCaster Mini 4K CS
TriCaster TC1
Pan2Can
TriCaster Mini 4K
P-20HD
TriCaster TC410 PLUS
TriCaster Mini 4K Bundle
TriCaster TC1 SP
TriCaster TC2 Elite 3RU
M-1073H
DT-G27E
F-10A
EV3285-WT FlexScan
CG2420 ColorEdge
FS173-S4K - SEETEC
CS2731 ColorEdge + EX4
LCD-238FK 12G
CS2740 ColorEdge
CG319X ColorEdge
M-1093H
LCD-15FK-S
DT-V24G2EA
P173-9HSD-CO - SEETEC
DT-V17G25
DT-V21G2
FM-21HDR
DT-G17E
P173-9HSD - SEETEC
LCD-17FH - 12G
LCD-15FK 12G
DT-U31
SC173-HSD-56 - SEETEC
PVM-X1800
S-1243FS
P2150S
LMD-A240
CS2731 ColorEdge
S-1223FS
DT-E17L4G
S-1093F
DT-U27HB
M-1093F
LCD-28FK-S
LCD-28FK-12G
EV3285-BK FlexScan
SP17-HDR
P2150
DT-E21L4
S-1173FS
ATEM156 - SEETEC
DT-G21E
LCD-17FH-R
LMD-A220
S-1093FLUX
LVM-095W-N
PVM-X2400
DT-G24E
P133-9HSD - SEETEC
CK1250
V-1HD
VR-4HD
VP-42H
XS-62S
ATEM 4 ME Broadcast Studio 4K
XS-1HD
V-600UHD
V-1HD+
ATEM Mini PRO
ATEM Mini Extreme
V-1200HDR
V-60HD
ATEM 1 ME Advanced Panel 10
V-1SDI
ATEM Constellation 8K
V-8HD
LIVEPRO L1
V-1200HD
VR-1HD
ATEM Mini Extreme ISO
ATEM Mini Pro ISO
XS-42H
ATEM Mini PRO - ATEM156 KIT - Blackmagic
ST500 Wall Mount B
PGX.CRN500.0
RC-IP100
PTZ-RIG
PTZ PRO v2
RA-AT001
RA-AL001
CONVMSDIDA4K
CONVMSDIDA
U-TAP-SDI-R0
Blackmagic Web Presenter HD
U-TAP-HDMI-R0
APTZ001
CONVMSYNC
APTZ002
Switch8 POE+
ATEM Camera control panel
XLINX-1280 - ON-AIR
Video camera
Image sensor: 1.0 type (1 ") single plate CMOS sensor
Effective Pixels: Approx.8.29 megapixels (3840 x 2160)
Minimum illumination of the subject
Approx.3.0 lux (with 59.94 Hz frame rate, 1/60 s shutter speed, 59.94P frame rate, and 21 dB gain)
Approx.2.5 lux (with frame rate of 50.00Hz, shutter speed of 1/50 s, frame rate of 50.00P and gain of 21dB)
Shutter speed: 1/3 - 1/2000 s (specific values depend on frame rate and frame rate)
Iris: Manual / automatic opening
Gain: -6.0dB - 36.0dB
ND filter: Integrated (Off, 1/4, 1/16, 1/64), motor driven
Night mode (infrared cut filter disabled): Yes
White balance: AUTO (AWB), Set A, Set B, preset settings (daylight: 5600 K1, tungsten lamp: 3200 K2),
Lens
Lens: 15x optical zoom, 9-blade iris diaphragm
Optical zoom: 15x optical zoom (30x with advanced zoom)
Digital Zoom: 20x digital zoom
Focal length:
8.3 - 124.5mm, f / 2.8 - 4.5,
35mm equivalent focal length: Approx.25.5 (wide) - 382.5mm (telephoto)
Field angle
Horizontal: 73.0 ° (wide angle) - 5.7 ° (telephoto)
Vertical: 45.2 ° (wide angle) - 3.2 ° (telephoto)
Control dial
Focus Modes: Manual, AF-Boosted MF, Continuous AF, Face AF, Tracking
AF type: Dual Pixel CMOS AF, Contrast AF
Detection: face detection, eye detection
Minimum focusing distance: 1cm with wide angle, 60cm across the entire zoom range
Gamma: BT.709 Normal, BT.709 Wide DR, BT.709 Standard, Canon Log 3, PQ, HLG
Pan and tilt
Pan operation range: horizontal ± 170 °
Pan operating speed: 0.1 ° to 100 ° / s
Tilt operating range: vertical -30 ° - + 90 °
Tilt operating speed: 0.1 ° to 100 ° / s
Video transmission protocol: Canon XC, RTSP / RTP, NDI3 | HX, RTMP / RTMPS, standard communication (serial), standard communication (IP), SRT, FreeD
Preset: Number of preset stations: max. 100 (including starting position)
Interface
Communications control: LAN, Wi-Fi, serial, IR
Network terminal: LAN x 1, RJ45, 1000Base-T
SDI OUT terminal:
OUT 12G-SDI terminal
BNC jack (output only) x 1, 0.8 Vp-p / 75 O,
compliant with SMPTE ST 2082, 2081, 424, 425, 292, 259, 299, 272
Embedded audio, timecode (VITC / LTC)
OUT 6G-SDI terminal: No
OUT 3G-SDI terminal:
BNC jack (output only) x 1, 0.8 Vp-p / 75 O,
compliant with SMPTE ST 424, 425, 292, 259, 299, 272
Embedded audio, timecode (VITC / LTC)
Genlock Terminal: BNC Jack (Also works as SYNC OUT jack)
TIME CODE terminal: BNC jack (for input / output)
HDMI OUT terminal: HDM connector (type a), both video and audio are output only
RS-422 terminal: RJ45 connector x 1
INPUT 1 / INPUT 2 terminals:
3-pin XLR jack (balanced) ((1) ground, (2) hot, (3) cold), two lines
Sensitivity (MIC): -60 dBV (manual volume center, full scale -18 dB)
Sensitivity (LINE): +4 dBV (manual volume center, full scale -18 dB)
Power supply voltage: 48V DC (Tone resistance: 6.8kO)
MIC terminal:
diameter 3.5 mm stereo mini jack (unbalanced, supports plug-in power)
Sensitivity (MIC): -72 dBV (manual volume center, full scale -18 dB)
Sensitivity (LINE): -10 dBV (manual volume center, full scale -18 dB)
Power supply voltage: 2.4V DC (polarization resistance: 2.2kO)
USB terminal: No
Power
PoE: PoE ++ power via LAN connector (IEEE802.3bt compliant)
- PoE and PoE + cannot be used
External power source: 12V DC
Energy Consumption:
PoE ++ input: Approx.37.4W4 / 1.2A max. (body only)
DC Input: Approx.36.7W / 3.5A max. (body only)
General
Dimensions (W x H x D): Approx. 200 × 269 × 208 mm (excluding protrusions)
Weight: Approx.4.4 kg [body only]
Canon CR-N700 4K PTZ Camera with 15x Zoom (Satin Black)
Ceiling Plate
Ceiling Plate Screw
Safety Cable
Camera-to-Mount Safety Cable
IR Remote Control
Battery for Remote Control
