KBD-1010

Name: KBD-1010
Brand: Bolin
SKU: KBD-1010
Price: 3756801.43 NGN
Availability: OutOfStock

Bolin

EAN: 6973775121321

Remote control for PTZ cameras, up to 255 cameras and 14 via VISCA, PoE

go to the technical sheet

₦ 3,756,801.43

₦ 3,494,699.00 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 375,680.14

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

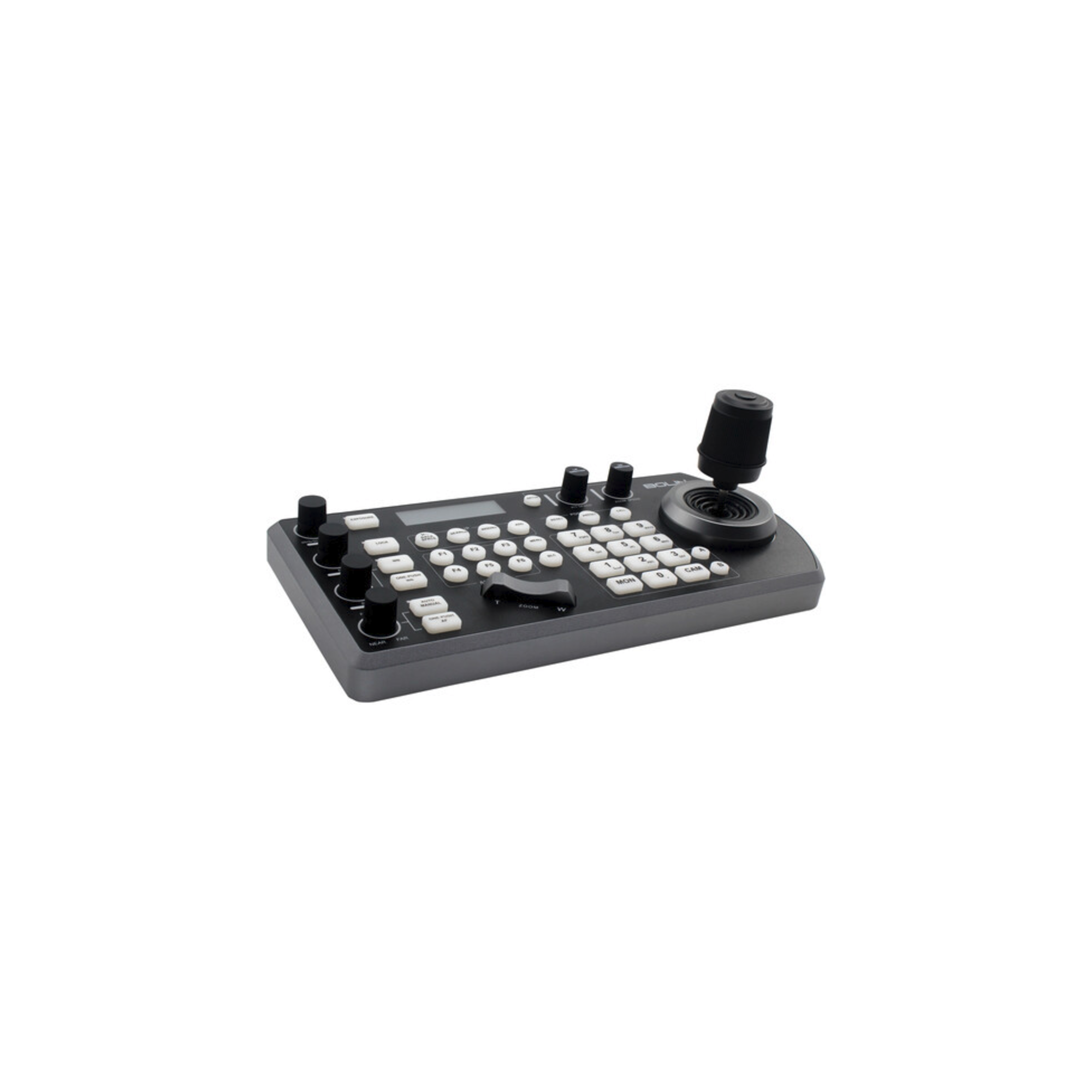

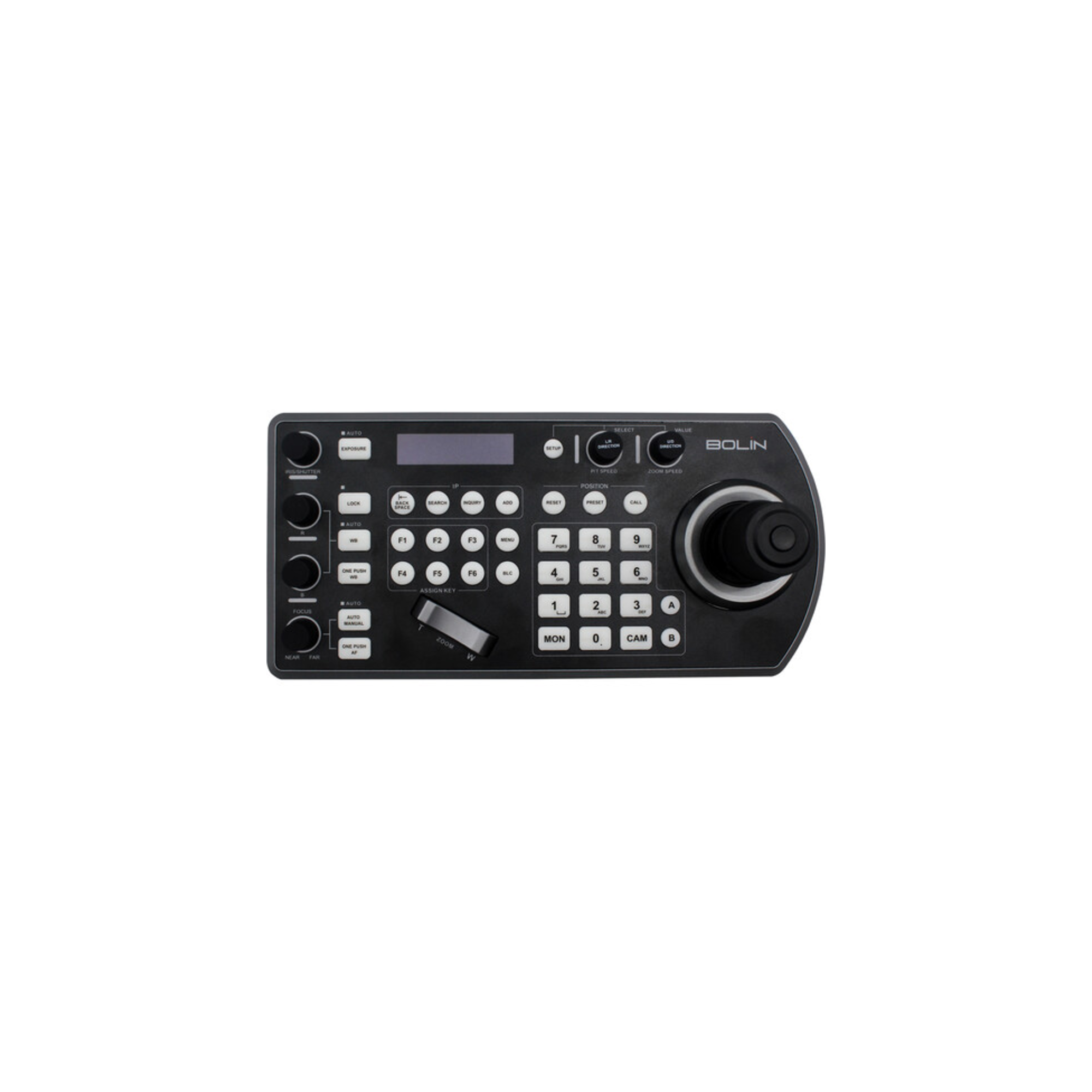

Bolin Technology PTZ Camera IP/Serial Remote Controller, Control up to 255 Cameras, 14 via VISCA, PoE Support

The PTZ Camera IP/Serial Remote Controller from Bolin Technology offers joystick and button control for up to 14 PTZ cameras via the VISCA protocol and up to 255 cameras via ONVIF, VISCA-over-IP, and serial RS-232, RS-485/RS-422 communication.
It enables you to control the speed of your pan, tilt, zoom, and lock moves, it incorporates an LCD status display, and it is compatible with the DanteAV ecosystem.

The controller also offers controls including gain, iris, focus, shutter speed, backlight, white balance, exposure, and speed control settings to control the finer settings on the PTZ camera. There are also assignable buttons for shortcuts to create one-click actions for picture profiles, status display, and more.
The unit comes with a 12 VDC power supply, and it can also be powered using Power-over-Ethernet (PoE). Pan/Tilt/Zoom Camera Control

- IP & Serial RS-232/422/485 Communication
- Control up to 255 Cameras, 14 via VISCA
- VISCA, VISCA-over-IP, Pelco-P/D, ONVIF
- Compatible with DanteAV Ecosystem
- LCD Status Display
- Precision Knobs/Buttons/Rocker/Joystick
- PoE (Power-over-Ethernet) Support
- 12 VDC Power Supply Included

General
_____________________
Number of Supported Cameras: 255 Channels
Supported Control Protocols: IP | Pelco-D | Pelco-P | RS-232 | RS-422 | RS-485 | VISCA
Control I/O:
- 1x RJ45 (RS-232, VISCA) Output
- 2x RJ45 (Pelco-D, Pelco-P, RS-422, VISCA) Output
- 1x RJ45 (IP Control, LAN) Output
- 1x Block 9-Pin Output
Other I/O: 1x USB-A Input
Controls:
- 2x Pan/Tilt, Zoom Knobs
- 1x Zoom Rocker
- 1x Pan/Tilt, Zoom Joystick
- 6x Programmable Buttons

Display
_____________________
Touchscreen: No

Power
_____________________
PoE Support: Yes
Power Connectors: 1x Barrel / Coaxial
Power Consumption: 5 W
Input Power:
- 100 to 220 VAC, 50 / 60 Hz
- 12 VDC at 2 A

Physical
_____________________
Operating Conditions: 32 to 104°F / 0 to 40°C
Storage Conditions: -4 to 140°F / -20 to 60°C
Security Lock Support: No
Dimensions: 10.9 x 5.2 x 3.9" / 278 x 132 x 99.5 mm
Weight: 2.2 lb / 1 kg

1x PTZ Camera IP/Serial Remote Controller
1x RJ45 Control Cable for Keyboard Controller
1x Keyboard Junction Box
1x 9-Pin Phoenix Connector
1x 12 VDC Power Adapter
