ATEM Mini Pro ISO
ATEM Mini Pro ISO
ATEM Mini Pro ISO
Previous keyboard_arrow_left
Next keyboard_arrow_right
ATEM Mini Pro ISO
ATEM Mini Pro ISO
ATEM Mini Pro ISO

ATEM Mini Pro ISO

Blackmagic

9338716006872
4ch HDMI Live Switcher with encoding capabilities, and ISO recordings
go to the technical sheet
₦ 1,091,285.00

₦ 1,015,149.00 VAT excl.

Available 1 unit in 4 Days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

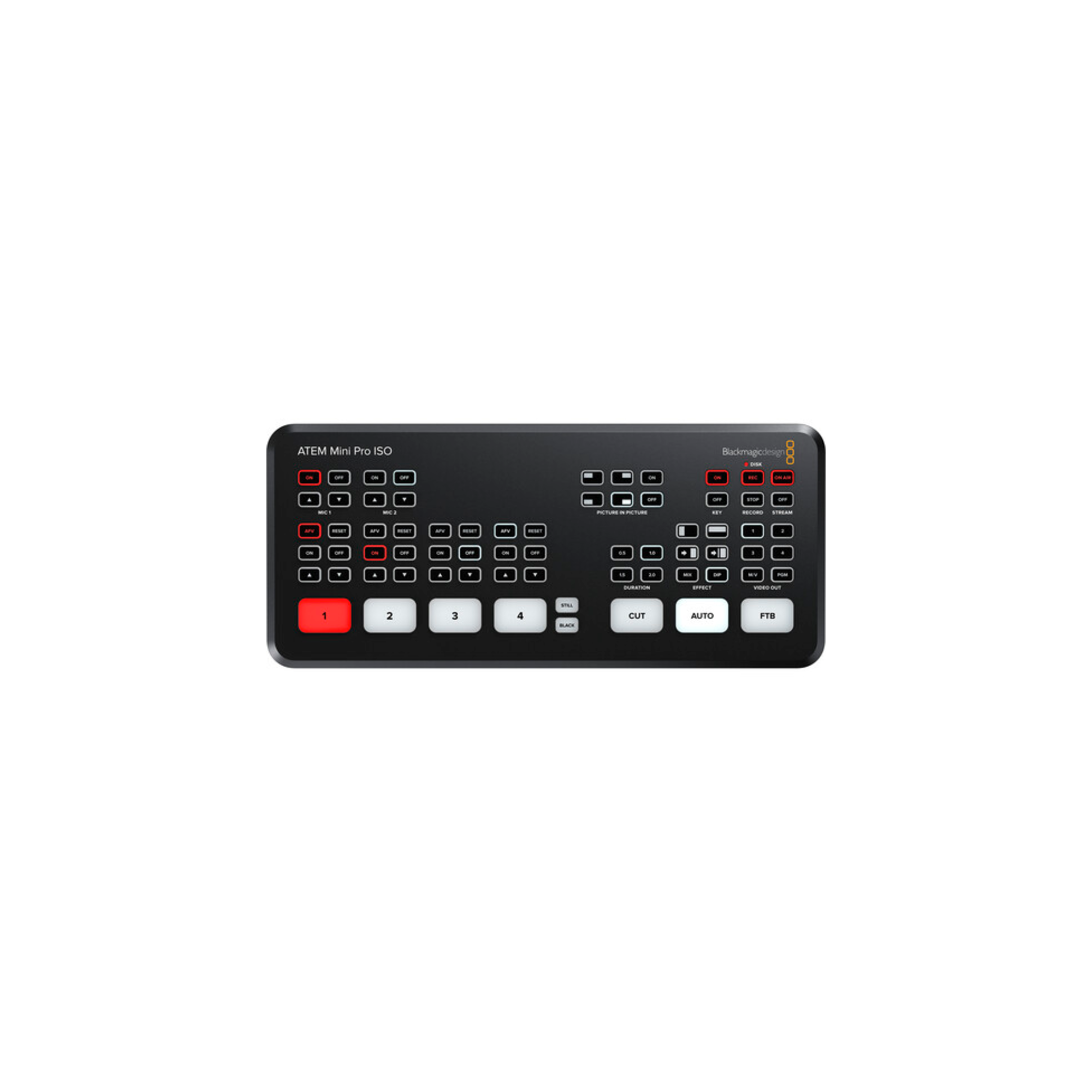

Blackmagic ATEM Mini Pro ISO HDMI Live Stream Switcher, 4-Channel Live Stream HDMI Switcher with recording functioni ISO.

The ATEM Mini Pro ISO HDMI Live Stream Switcher from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output.
It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included).
In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream.
This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

The ATEM Mini Pro ISO retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file.
The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators.
There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats.
The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed.
And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

Audio Mixer
The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels.
The mixer features selectable on/off and audio-follow-video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.

Monitor Output
The HDMI monitor output allows you to see your sources, graphics, preview, and program output on a single screen.

Media Player
Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool.
The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video.
Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.

Main Features

° Stream up to 1080p HD
° Fast streaming, on-air and record buttons
° Hardware encoder so no need for additional streaming software
° Control and setup timecode, stream status
° Full support and control for BMPCC 6K/4K cameras
° Simultaneous USB recording
° Integration with MultiDock for live switching to hard disk
° Customize advanced settings with XML files
° Multiple software views with program previews, graphics, record status, on-air status and audio meters
° Program preview input and output buttons
° Tally light control for BMPCC 6K/4K cameras
° Automatic timecode sync for all cameras
° This unit has the same footprint, layout and connections as the ATEM Mini Pro

HDMI to HDMI 002
Adcom Cable

HDMI to HDMI 002

₦ 20,478.00 VAT included
Available 25 unit in 4 Days
RCC-10-HDMI
Roland

RCC-10-HDMI

₦ 47,138.00 VAT included
Available in 11 days
RCC-16-HDMI
Roland

RCC-16-HDMI

₦ 75,464.00 VAT included
Available in 11 days
RCC-3-HDMI
Roland

RCC-3-HDMI

₦ 14,458.00 VAT included
Available 6 unit in 4 Days
RCC-25-HDMI
Roland

RCC-25-HDMI

₦ 85,139.00 VAT included
Available 9 unit in 4 Days
RP-CHEU15E-K
Panasonic

RP-CHEU15E-K

₦ 9,781.00 VAT included
Available 88 unit in 4 Days
HDMI to HDMI 010
Adcom Cable

HDMI to HDMI 010

₦ 191,833.00 VAT included
Available 11 unit in 4 Days
RCC-6-HDMI
Roland

RCC-6-HDMI

₦ 25,154.00 VAT included
Available 3 unit in 4 Days
BR-300225
ON-AIR

BR-300225

₦ 125,989.00 VAT included
Available 1 unit in 4 Days
BR-235105
ON-AIR

BR-235105

₦ 75,894.00 VAT included
Available 6 unit in 4 Days
BR-235155
ON-AIR

BR-235155

₦ 240,315.00 VAT included
Available 8 unit in 4 Days
BR-430290
ON-AIR

BR-430290

₦ 364,800.00 VAT included
Available 5 unit in 4 Days
CAT5 FUTP 50
Adcom Cable

CAT5 FUTP 50

₦ 74,550.00 VAT included
Available 3 unit in 4 Days
CAT5 FUTP 05
Adcom Cable

CAT5 FUTP 05

₦ 8,545.00 VAT included
Available in 14 days
CAT5 FUTP 20
Adcom Cable

CAT5 FUTP 20

₦ 47,460.00 VAT included
Available 2 unit in 4 Days
CAT5 FUTP 01
Adcom Cable

CAT5 FUTP 01

₦ 3,616.00 VAT included
Available 1 unit in 4 Days
KT-KD50X
Kato Vision

KT-KD50X

₦ 1,242,323.00 VAT included
Available 3 unit in 4 Days
SmartView Duo 2
Blackmagic

SmartView Duo 2

₦ 1,262,748.00 VAT included
Available 1 unit in 4 Days
CT770S
Neway

CT770S

₦ 768,248.00 VAT included
Available 8 unit in 4 Days
LCD-15FK 12G
ON-AIR

LCD-15FK 12G

₦ 4,086,909.00 VAT included
Available in 14 days
PVM-X1800
Sony

PVM-X1800

₦ 18,286,555.00 VAT included
Available in 14 days
CK550S
Neway

CK550S

₦ 1,285,538.00 VAT included
Available in 14 days
LMD-A240
Sony

LMD-A240

₦ 6,186,516.00 VAT included
Available in 14 days
DT-E17L4G
JVC

DT-E17L4G

₦ 4,115,529.00 VAT included
Available in 19 days
LCD-28FK-S
ON-AIR

LCD-28FK-S

₦ 3,638,336.00 VAT included
Available in 14 days
LCD-28FK-12G
Neway

LCD-28FK-12G

₦ 4,816,805.00 VAT included
Available 1 unit in 4 Days
DT-E21L4
JVC

DT-E21L4

₦ 4,140,738.00 VAT included
Available in 14 days
ATEM156
Seetec

ATEM156

₦ 887,143.00 VAT included
Available 4 unit in 4 Days
DT-G21E
JVC

DT-G21E

₦ 4,495,004.00 VAT included
Available 4 unit in 4 Days
LCD-T5
Neway

LCD-T5

₦ 527,716.00 VAT included
Available 2 unit in 4 Days
LCD-17FH-R
Neway

LCD-17FH-R

₦ 2,510,996.00 VAT included
Available 1 unit in 4 Days
LMD-A220
Sony

LMD-A220

₦ 5,575,003.00 VAT included
Available in 34 days
PVM-X2400
Sony

PVM-X2400

₦ 21,417,869.00 VAT included
Available in 14 days
CK1250
Neway

CK1250

₦ 1,874,987.00 VAT included
Available 1 unit in 4 Days
LMD-A180
Sony

LMD-A180

₦ 7,250,068.00 VAT included
Available in 14 days
CONVMBHS24K6G
Blackmagic

CONVMBHS24K6G

₦ 358,350.00 VAT included
Available 1 unit in 4 Days
MD-HX
Decimator

MD-HX

₦ 699,448.00 VAT included
Available in 34 days
DAC-60
Datavideo

DAC-60

₦ 857,526.00 VAT included
Available in 14 days
CONVMBSH4K6G
Blackmagic

CONVMBSH4K6G

₦ 443,974.00 VAT included
Available in 11 days
CONVMUDCSTDHD
Blackmagic

CONVMUDCSTDHD

₦ 358,350.00 VAT included
Available 1 unit in 4 Days
MD-LX
Decimator

MD-LX

₦ 284,390.00 VAT included
Available from 07-14-25
KV-CV180
Kiloview

KV-CV180

₦ 322,768.00 VAT included
Available 3 unit in 4 Days
FLEXTALLY BP
Cerevo

FLEXTALLY BP

₦ 1,169,921.00 VAT included
Available 4 unit in 4 Days
Middle Remote
Middle Things

Middle Remote

₦ 3,346,796.00 VAT included
Available in 19 days
PK1PROMKII
Inux3d

PK1PROMKII

₦ 148,886.00 VAT included
Available 1 unit in 4 Days
MultiDock 10G
Blackmagic

MultiDock 10G

₦ 1,022,808.00 VAT included
Available in 11 days
UV-C BOXER
Cartoni

UV-C BOXER

₦ 16,900,181.00 VAT included
Available in 14 days
MD-QUAD v3
Decimator

MD-QUAD v3

₦ 2,967,644.00 VAT included
Available in 64 days
APC-R
Middle Things

APC-R

₦ 1,170,566.00 VAT included
Available in 14 days

Processing
Switching Type: Pushbutton
Color Processing: 10-Bit 4:2:2 YUV

Input
Number of Video Input Sources: 4
Video Inputs: 4x HDMI Female
Input Video Format:
° HDMI (10-Bit 4:2:2 YUV):
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs: 2x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format: Analog
Embedded Audio Input: HDMI: 2-Channel (per Input)

Output
Video Output Channels: 1
Video Outputs: 1x HDMI
Output Video Format: HDMI / RJ45 (10-Bit 4:2:2 YUV): 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output: HDMI: 2-Channel (per Output)
Multiview Output: Yes
Monitor Output: 1x HDMI

Connectivity
Other I/O:
- 1x RJ45 Control, Firmware, LAN, Sync, Tally, Timecode Input/Output
- 1x USB-C Control, Firmware Input/Output
IP Video: H.264: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols: RTMP
Simultaneous Streams: 1 Streams

Hardware
OS Compatibility:
- macOS 10.14 or Later
- Windows 10
Wi-Fi: No
Bluetooth: No
Power I/O: 1x Barrel (12 VDC) Input
Power Consumption: 36 W

Environmental
Operating Temperature: 41 to 104°F / 5 to 40°C
Storage Temperature: 14 to 140°F / -10 to 60°C
Operating Humidity: 0 to 90%

General
Dimensions : 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
Weight : 19.4 oz / 550 g

1x ATEM Mini Pro ISO HDMI Live Stream Switcher
1x 12V power supply with international adapters
