Blackmagic

9338716006797
4ch HDMI Live Switcher with encoding capabilities
go to the technical sheet
€ 370,60

€ 344,74 VAT excl.

Available in 11 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

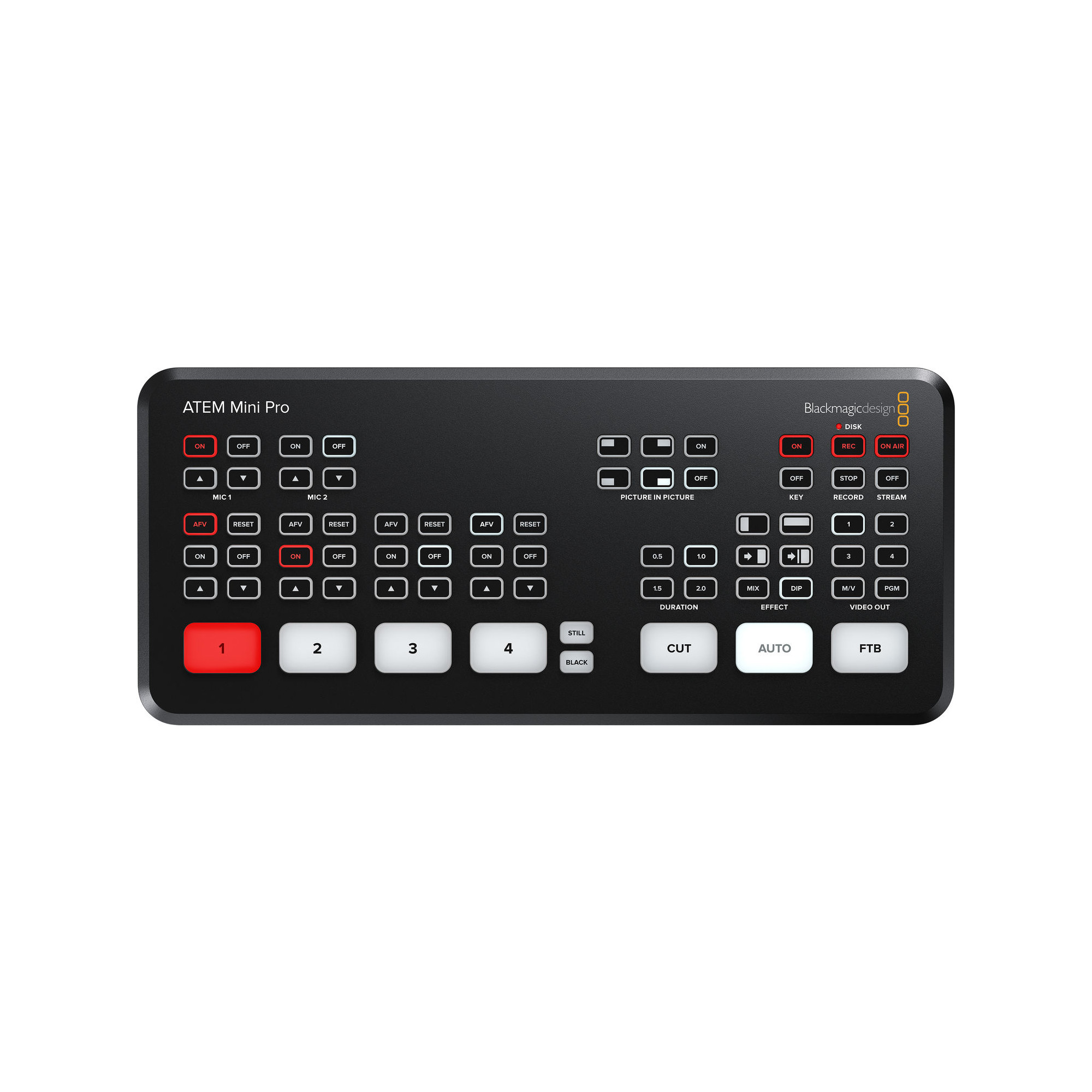

Similar to its predecessor, the ATEM Mini, the ATEM Mini Pro from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Along with the software control update, the Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to utilize as your broadcast sources.

The ATEM Mini Pro retains the same rear-panel setup on which four HDMI inputs are available on the rear of the chassis and they input up to 1080p HD video. There is also an HDMI output for a projector or multiview monitoring, a USB Type-C output as for recording HD video to a computer, and an RJ45 10/100/1000 Ethernet port for direct live streaming as well as system management, remote control, and upgrades. You can adjust frame rate depending on the quality of your stream, and there is no need for additional streaming software because the Pro includes a built-in hardware encoder.

The updated ATEM Software Control Panel is used for control and configuration of the ATEM Mini Pro via USB Type-C or Ethernet, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. The built-in color control panel has the same configuration of DaVinci Resolve, eliminating any learning curve. Advanced features include the ability for engineers to upload an XML configuration file to make it easier to change all your settings at once.

The control surface features the same easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini Pro adds several buttons to the right side such as a quick record button, which allows you to instantly record your live stream to the connected USB source, or by holding it down, you can hot-swap drives when using the Blackmagic MultiDock if you need to quickly get down to editing. On Air and Stream buttons have also been added to instantly start and stop your stream once it is set up in software control. The added Video Out buttons on the right side allow you to select a program preview for each source, so you can make sure each source is ready to go for air.

The ATEM Mini Pro features the same upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats.

New Features
Same rear panel as ATEM Mini with added buttons and software features
Stream video up to 1080p HD
Quick stream, on-air and record buttons
Hardware encoder so there's no need for additional streaming software
Control and configure timecode, stream status
Full support and control features for BMPCC 6K and 4K cameras
Simultaneous USB recording to computer via USB Type-C
Integration with MultiDock for live hard drive switching
Customize advanced settings with XML files
Software multiview with program previews, graphics, record status, on air status, audio meters
Program preview input and output buttons
Tally light control for BMPCC 6K/4K cameras
Automatic timecode sync for all cameras

HDMI HDMI 05
Adcom Cable

HDMI HDMI 05

€ 8,83 VAT included
Available 5 unit in 4 Days
HDMI HDMI 002
Adcom Cable

HDMI HDMI 002

€ 11,83 VAT included
Available 26 unit in 4 Days
RCC-10-HDMI
Roland

RCC-10-HDMI

€ 27,21 VAT included
Available 12 unit in 4 Days
RCC-16-HDMI
Roland

RCC-16-HDMI

€ 42,85 VAT included
Available 8 unit in 4 Days
RCC-3-HDMI
Roland

RCC-3-HDMI

€ 8,34 VAT included
Available 8 unit in 4 Days
HDMI HDMI 005
Lindy

HDMI HDMI 005

€ 66,23 VAT included
Available 12 unit in 4 Days
RCC-25-HDMI
Roland

RCC-25-HDMI

€ 49,17 VAT included
Available 13 unit in 4 Days
-2.49%
RP-CHEU15E-K
Panasonic

RP-CHEU15E-K

-2.49%
€5,62 € 5,48 VAT included
Available 88 unit in 4 Days
HDMI HDMI 001
Adcom Cable

HDMI HDMI 001

€ 10,57 VAT included
Available 10 unit in 4 Days
HDMI HDMIMINI 2
Adcom Cable

HDMI HDMIMINI 2

€ 31,65 VAT included
Available 15 unit in 4 Days
HDMI HDMI 003
Adcom Cable

HDMI HDMI 003

€ 25,99 VAT included
Available 10 unit in 4 Days
HDMI HDMI 010
Adcom Cable

HDMI HDMI 010

€ 110,77 VAT included
Available 12 unit in 4 Days
RCC-6-HDMI
Roland

RCC-6-HDMI

€ 14,51 VAT included
Available 10 unit in 4 Days
BR-300225
ON-AIR

BR-300225

€ 72,75 VAT included
Available 5 unit in 4 Days
BR-235105
ON-AIR

BR-235105

€ 43,82 VAT included
Available in 14 days
BR-235155
ON-AIR

BR-235155

€ 138,76 VAT included
Available 4 unit in 4 Days
BR-430290
ON-AIR

BR-430290

€ 210,64 VAT included
Available 5 unit in 4 Days
CAT5 FUTP 50
Adcom Cable

CAT5 FUTP 50

€ 43,75 VAT included
Available 3 unit in 4 Days
CAT5 FUTP 05
Adcom Cable

CAT5 FUTP 05

€ 5,01 VAT included
Available in 19 days
CAT5 FUTP 20
Adcom Cable

CAT5 FUTP 20

€ 27,40 VAT included
Available 3 unit in 4 Days
CAT5 FUTP 02
Adcom Cable

CAT5 FUTP 02

€ 2,98 VAT included
Available in 19 days
CAT5 FUTP 01
Adcom Cable

CAT5 FUTP 01

€ 2,12 VAT included
Available 1 unit in 4 Days
DT-G27E
JVC

DT-G27E

€ 3.395,68 VAT included
Available 1 unit in 4 Days
DT-V24G2EA
JVC

DT-V24G2EA

€ 4.134,25 VAT included
Available in 14 days
DT-V17G25
JVC

DT-V17G25

€ 3.787,26 VAT included
Available in 19 days
DT-V21G2
JVC

DT-V21G2

€ 3.580,27 VAT included
Available in 14 days
-2.5%
FM-21HDR
Swit

FM-21HDR

-2.5%
€2.077,27 € 2.025,33 VAT included
Available in 34 days
DT-G17E
JVC

DT-G17E

€ 2.438,73 VAT included
Available 1 unit in 4 Days
Shinobi
Atomos

Shinobi

€ 382,15 VAT included
Available 3 unit in 4 Days
-3.35%
LCD-17FH - 12G
ON-AIR

LCD-17FH - 12G

-3.35%
€1.889,76 € 1.826,42 VAT included
Available in 14 days
-10.03%
CT770S
Neway

CT770S

-10.03%
€428,93 € 385,92 VAT included
Available in 14 days
LCD-15FK 12G
ON-AIR

LCD-15FK 12G

€ 2.284,70 VAT included
Available in 14 days
-2.5%
CM-S73H
Swit

CM-S73H

-2.5%
€862,16 € 840,61 VAT included
Available 1 unit in 4 Days
DT-U31
JVC

DT-U31

€ 5.771,22 VAT included
Available in 14 days
-2.5%
PVM-X1800
Sony

PVM-X1800

-2.5%
€8.506,13 € 8.293,48 VAT included
Available in 14 days
-9.72%
CK550S
Neway

CK550S

-9.72%
€719,18 € 649,30 VAT included
Available 1 unit in 4 Days
-2.5%
LMD-A240
Sony

LMD-A240

-2.5%
€3.893,74 € 3.796,40 VAT included
Available 2 unit in 4 Days
DT-E17L4G
JVC

DT-E17L4G

€ 2.376,37 VAT included
Available in 19 days
DT-U27HB
JVC

DT-U27HB

€ 6.834,31 VAT included
Available in 14 days
LCD-28FK-S
ON-AIR

LCD-28FK-S

€ 2.025,30 VAT included
Available 1 unit in 4 Days
-9.6%
LCD-28FK-12G
Neway

LCD-28FK-12G

-9.6%
€2.686,43 € 2.428,43 VAT included
Available 1 unit in 4 Days
DT-E21L4
JVC

DT-E21L4

€ 2.390,93 VAT included
Available in 14 days
-2.5%
ATEM156 - SEETEC
Seetec

ATEM156 - SEETEC

-2.5%
€521,85 € 508,80 VAT included
Available 8 unit in 4 Days
DT-G21E
JVC

DT-G21E

€ 2.595,49 VAT included
Available in 14 days
LCD-T5
Neway

LCD-T5

€ 294,55 VAT included
Available 5 unit in 4 Days
-6.67%
LCD-17FH-R
ON-AIR

LCD-17FH-R

-6.67%
€1.402,72 € 1.309,21 VAT included
Available 2 unit in 4 Days
-2.5%
LMD-A220
Sony

LMD-A220

-2.5%
€3.395,01 € 3.310,13 VAT included
Available in 34 days
-2.5%
PVM-X2400
Sony

PVM-X2400

-2.5%
€12.367,06 € 12.057,88 VAT included
Available in 14 days
DT-G24E
JVC

DT-G24E

€ 3.036,35 VAT included
Available in 14 days
CK1250
Neway

CK1250

€ 1.048,82 VAT included
Available 2 unit in 4 Days
-2.5%
CM-S75F
Swit

CM-S75F

-2.5%
€614,12 € 598,76 VAT included
Available in 11 days
KT-KD50X
Kato Vision

KT-KD50X

€ 710,74 VAT included
Available 2 unit in 4 Days
CONVMBHS24K6G
Blackmagic

CONVMBHS24K6G

€ 194,55 VAT included
Available in 11 days
MD-HX
Decimator

MD-HX

€ 403,89 VAT included
Available in 15 days
DAC-60
Datavideo

DAC-60

€ 471,60 VAT included
Available in 19 days
CONVMBSH4K6G
Blackmagic

CONVMBSH4K6G

€ 243,99 VAT included
Available in 11 days
CONVMUDCSTDHD
Blackmagic

CONVMUDCSTDHD

€ 194,55 VAT included
Available 2 unit in 4 Days
MD-LX
Decimator

MD-LX

€ 164,21 VAT included
Available in 15 days
KV-CV180
Kiloview

KV-CV180

€ 209,70 VAT included
Available in 4 days
MD-CROSS v2
Decimator

MD-CROSS v2

€ 542,19 VAT included
Available in 19 days
-2.5%
FLEXTALLY BP
Cerevo

FLEXTALLY BP

-2.5%
€675,53 € 658,64 VAT included
Available 1 unit in 4 Days
Middle Remote
Middle Things

Middle Remote

€ 1.932,48 VAT included
Available in 19 days
-2.5%
AIR-FLY-4ATEM-V1B
Skaarhoj

AIR-FLY-4ATEM-V1B

-2.5%
€2.042,27 € 1.991,22 VAT included
Available in 11 days
PK1PROMKII
Inux3d

PK1PROMKII

€ 85,97 VAT included
Available 1 unit in 4 Days
UV-C BOXER
Cartoni

UV-C BOXER

€ 9.758,46 VAT included
Available in 14 days
USB 3 USB C
Emmegi

USB 3 USB C

€ 6,39 VAT included
Available 8 unit in 4 Days
MD-QUAD v3
Decimator

MD-QUAD v3

€ 1.713,57 VAT included
Available in 64 days
APC-R
Middle Things

APC-R

€ 675,92 VAT included
Available in 19 days

Available M/E Layers: 5 M/E
Effect Types: 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys:
1 x Chroma, DVE
2 x Luma
Audio Mixing: 2-Channel Mixing
Processing
Switching Type: Pushbutton
Input
Number of Video Input Sources: 4
Video Input Connectors: 4 x HDMI Female
Input Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Input Connectors: 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Input: HDMI: 2-Channel (per Input)
Output
Video Output Channels: 1
Video Output Connectors: 1 x HDMI
Output Video Format:
HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output: HDMI: 2-Channel (per Output)
Multiview Output: Yes
Monitor Output: 1 x HDMI
Connectivity
Other I/O
1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
1 x USB Type-C Firmware, Control Input/Output
Hardware
OS Compatibility: macOS 10.14 or Later
Windows 10
Power Connector: 1 x Barrel (12 VDC) Input
Power Consumption: 36 W
Environmental
Operating Temperature: 41 to 104°F / 5 to 40°C
Storage Temperature: 14 to 140°F / -10 to 60°C
Operating Humidity: 0 to 90%
General
Dimensions: 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
Weight: 19.4 oz / 550 g
Packaging Info
Package Weight: 2.26 lb
Box Dimensions: 11.8 x 5.7 x 4.7"
