F-10A

10", 1920 x 1080, 3G-SDI & HDMI Monitor
Waveform / Vectorscope
160° Viewing Angle
HDR Emulation & 3D-LUT Support

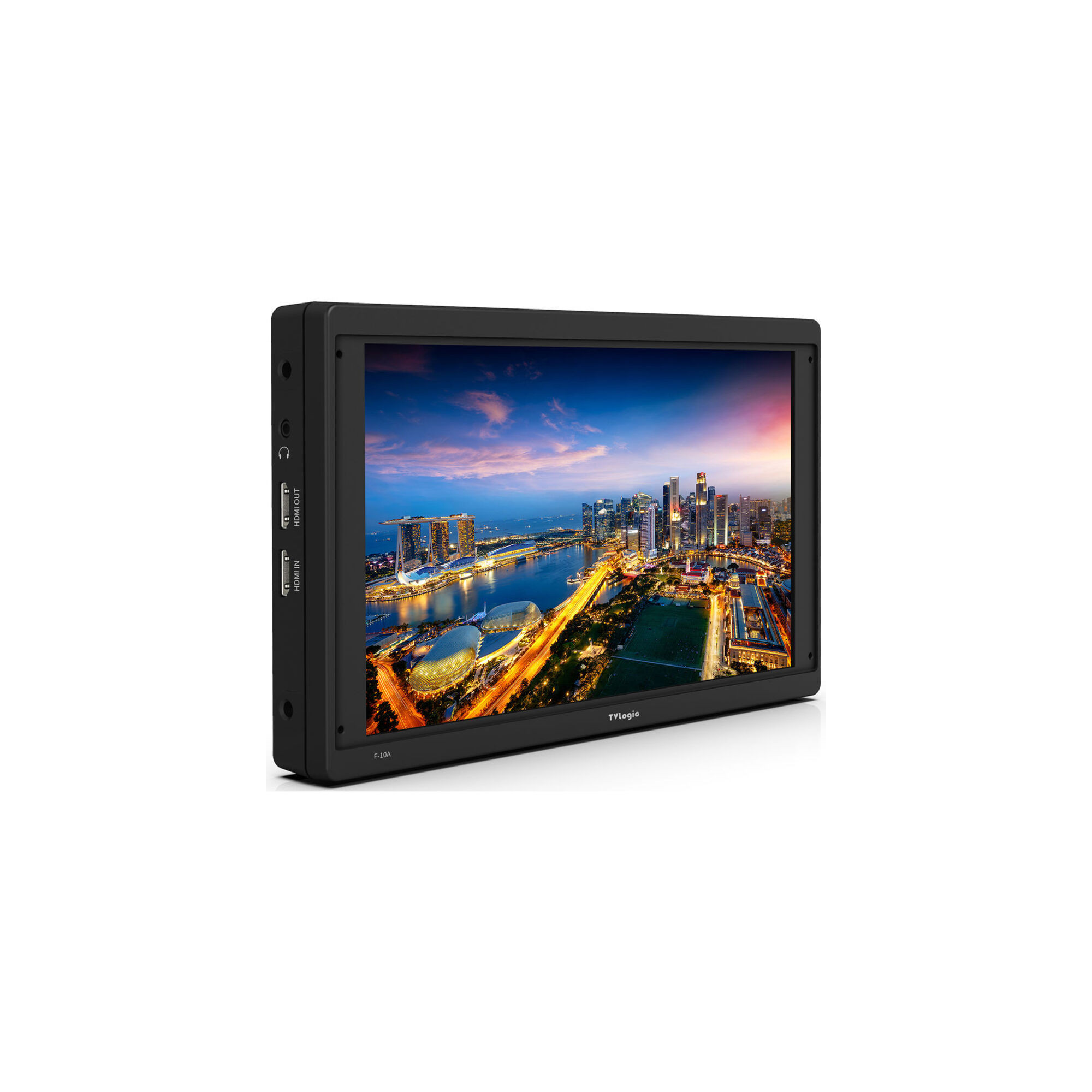

The 10" F-10A HDMI/SDI HDR Field Monitor is well suited for work in the field, on a camera, or in a studio. The slim IPS panel features a 1920 x 1080 resolution with 160° viewing angle. The F-10A features a sharp image, new touch preset buttons on the front of the monitor, and added automatic H/V flip functionality.

The F-10A supports 3G-SDI as well as HDMI, and it can cross-convert between SDI and HDMI. The 300 cd/m² brightness and 1000:1 contrast ratio provide a bright clear image viewable in daylight without a hood. The screen displays HDR imagery and supports HLG, PQ, and SLOG3 modes. It features a top-mounted menu, assignable functions buttons, and a selection knob, leaving the front of the screen uncluttered.

The built-in on-screen menu display allows you to select and adjust the monitor's controls and on-screen markers, load and save 3D LUTs, and select from SDR to HDR. Separately available battery plates can expand the power options of the monitor.
Key Features

Audio level meter display
Blue-only/mono
Focus Assist
H/V delay
Auto H/V flip
Waveform
Vectorscope
Zoom / Split Zoom
3D LUT support
Key lock
Luma(Y') zone check
Marker
Max brightness on/off
Range Error
Timecode display
1-to-1 pixel zoom
ARRI ALEXA metadata support
Anamorphic de-squeeze
HDR emulation
HDMI to SDI conversion
SDI to HDMI conversion
Internal pattern generator (0~100% gray/color bars + pluge)
Center marker, safety area marker, marker mat, marker size, fit marker, thickness adjustment function

3D LUT Support
The monitor internally stores up to three 3D LUTs. You can also load from a list of available 3D LUT files. A LUT for every major camera manufacturer has been included (LOG-C, C-LOG, S-LOG 1/2/3 and RED Gamma 3/4).
HDR
The F-10A supports HDR display using EOTF in PQ, HLG, or SLOG3. In the Auto mode, the HDR image is converted within the range of set peak luminance and black level. In the Off mode, the video will clip.
ARRI ALEXA Metadata over SDI
The Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera and displays it on the monitor.
Aspect Ratio
The monitor supports several formats and resolutions that are suited for anamorphic lenses and aspect ratios. When shooting anamorphic, the image you are monitoring is an "unsqueezed" preview of what's actually being recorded.
On-Screen Display
You can select the type, then adjust the size and transparency of the waveform and vectorscope.
Optional Battery Plates
Optional V-mount and Gold mount battery plates are available to power your monitor.
