Studio Fiber Converter
₦ 6.308.449,07
VAT included
Available in 11 days
fast, traceable and secure delivery
prices dedicated to professionals and resellers
technical support and professional advice
financing and installment payments
Camera Fiber Converter
Blackmagic
9338716005325
Camera Fiber Converter for Ursa Cameras
go to the technical sheet
₦ 6.115.175,51
₦ 5.688.535,36 VAT excl.

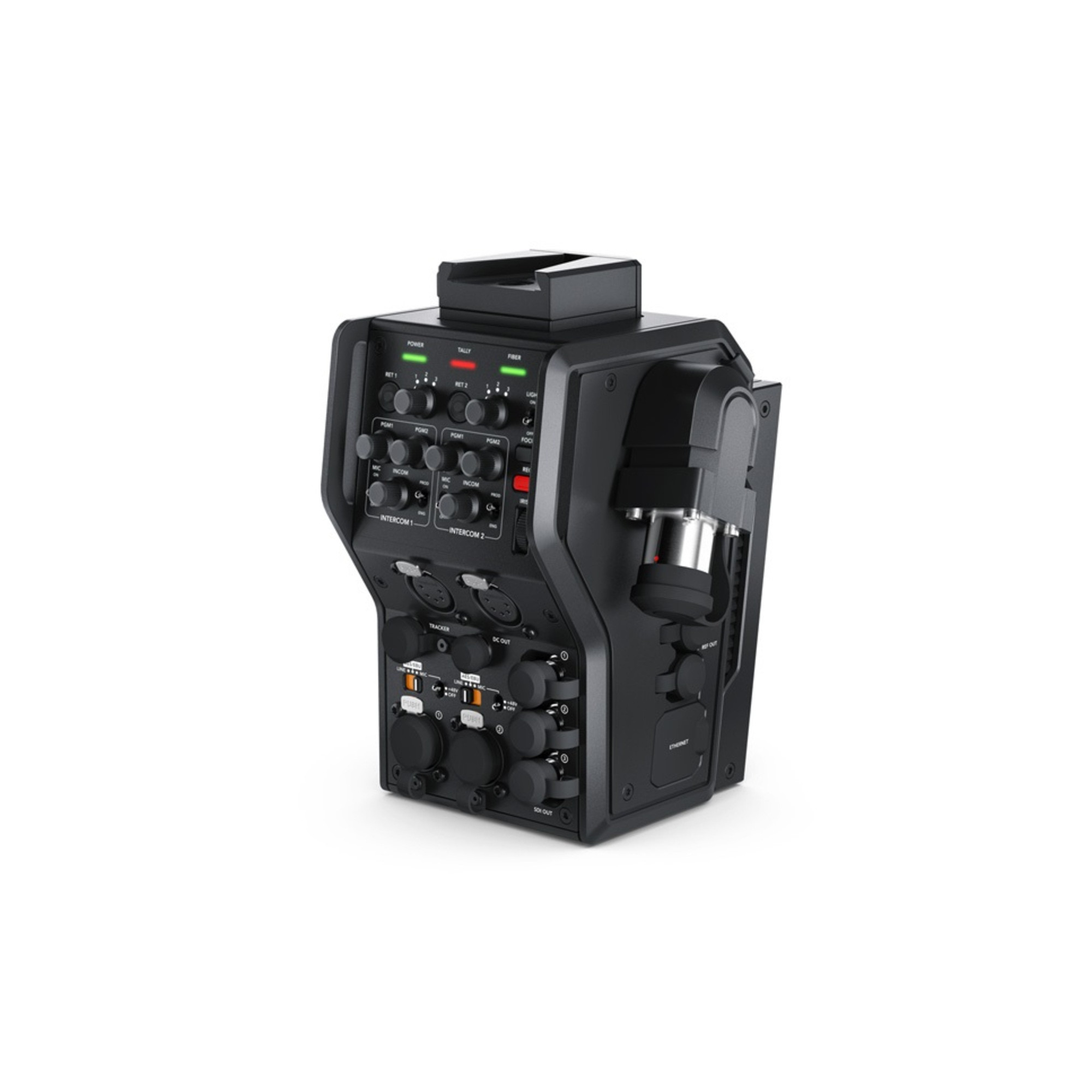

The Blackmagic Camera Fiber Converter lets you extend and power your URSA Broadcast from up to 2 km away using industry standard SMPTE fiber cables. It also includes common live camera controls with multiple channels of talkback and standard television industry talkback headset connections. The Blackmagic Camera Fiber Converter features 1 Ultra HD camera feed, plus 3 HD return feeds in a compact IP video based design.
The Blackmagic Camera Fiber Converter attaches to the back of your URSA Mini or URSA Broadcast camera. In addition to converting all of the audio, video, camera control and talkback into fiber, it also adds professional studio camera controls to the back of your camera. You get control for return feeds, dual intercom controls with the ability to mix in program audio, record, focus and iris controls, headset connectors, audio and more. The camera converter also includes a VLock mount plate on the top for attaching accessories such as a professional Blackmagic Studio Viewfinder. The Blackmagic Camera Fiber Converter has connections for your Ultra HD camera feed, 3 HD return feeds, full remote camera control, PTZ, multiple channels of talkback, tally and more!
The Blackmagic Camera Fiber Converter attaches to the back of your URSA Mini or URSA Broadcast camera. In addition to converting all of the audio, video, camera control and talkback into fiber, it also adds professional studio camera controls to the back of your camera. You get control for return feeds, dual intercom controls with the ability to mix in program audio, record, focus and iris controls, headset connectors, audio and more. The camera converter also includes a VLock mount plate on the top for attaching accessories such as a professional Blackmagic Studio Viewfinder. The Blackmagic Camera Fiber Converter has connections for your Ultra HD camera feed, 3 HD return feeds, full remote camera control, PTZ, multiple channels of talkback, tally and more!
ProLine Double PD5XLRM21
₦ 326.632,32
VAT included
Available 1 unit in 4 Days
ProLine Single PS5XLRM21
₦ 297.641,29
VAT included
Available in 14 days
Ultralite MXS5XLRM
₦ 249.322,90
VAT included
Available in 14 days
Ultralite MXD5XLRM
₦ 278.313,93
VAT included
Available 1 unit in 4 Days
HC201
₦ 4.095.466,78
VAT included
Available in 14 days
HC051 - Canare
₦ 1.824.502,43
VAT included
Available in 15 days
HC050 FCC50N cable
₦ 1.447.618,98
VAT included
Available in 14 days
HDF-PUWYFUWY-BP-200-RG
₦ 2.636.251,39
VAT included
Available in 14 days
HDF-PUWYFUWY-BP-300-RG
₦ 3.370.690,93
VAT included
Available in 14 days
HDF-PUWYFUWY-BP-400-RG
₦ 5.293.762,87
VAT included
Available in 19 days
HDF-PUWYFUWY-BP-500-RG
₦ 6.347.103,78
VAT included
Available in 19 days
HC100 FCC100N cable
₦ 2.394.659,44
VAT included
Available in 14 days
HC150 FCC150N cable
₦ 2.365.668,40
VAT included
Available in 14 days
UMAD-A420
₦ 693.852,09
VAT included
Available in 14 days
Connections
Fiber optic input
1 x SMPTE hybrid fiber optic input, with SMPTE 304 male connector
SDI video input
1 x 12G-SDI input for camera signals
SDI video output
1 x 3G-SDI output for camera return signals, 3 x 3G-SDI outputs for SDI return signals
Talkback audio
2 x 5-pin XLR for headphones, with three-way communication audio mixer for each output. 1 x tracking output
Analog audio
2 x 3-pin XLR inputs for AES, line, or microphone audio. Phantom power available
Computer interface
1 x USB C port
Standard
HD video standard
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD video standard
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60
Compliance with the SDI standard
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M level B, 425M
Audio sampling: 48kHz television standard sampling rate, 24-bit A/D conversion
Video sampling: 4:2:2
Color accuracy: 10 bit
Color space: REC 709, REC 2020
Multirate support
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI
Operating Systems
Mac Icon
Mac OS
macOS 10.12 Sierra or later
Windows Icons
Windows 8.1 or Windows 10
Environmental specifications
Operating temperature: 0° to 40° C
Storage temperature: -20° to 45° C
Relative humidity: 0% to 90% non-condensing
Product includes
1x Blackmagic Camera Fiber Converter
1x Support and screws to mount the device on the URSA Mini and URSA Broadcast cameras
3x short 12G-SDI cables for connecting to the SDI inputs and outputs of URSA Mini and URSA Broadcast
1x SD card with software and manual
1x Warranty (One year limited warranty provided by the manufacturer)
1x Blackmagic Camera Fiber Converter
1x Support and screws to mount the device on the URSA Mini and URSA Broadcast cameras
3x short 12G-SDI cables for connecting to the SDI inputs and outputs of URSA Mini and URSA Broadcast
1x SD card with software and manual
1x Warranty (One year limited warranty provided by the manufacturer)
