AW-UE30WEJ

Imaging
Image Sensor: 1/2.5"-Type MOS
Horizontal Resolution (TV Lines): 1500 TV Lines
Sensor Resolution: Effective: 8.49 Megapixel
Focus Control: Autofocus | Manual Focus

Exposure Control
Shutter Speed: 1/10000 to 1/25 Second
Gain: 0 to 36 dB (Native) | 36 to 42 dB (Expanded)
Precise Scan Rate Control: Yes
Minimum Illumination: 3 Lux
White Balance:
- Range: 2000 to 15,000K
- Presets: ATW, AWB

Lens
Focal Length: 4.12 to 82.4mm (35mm Equivalent: 25 to 500mm)
Optical Zoom Ratio: 20x
Max Digital Zoom: 30x ( in 1080p)
Field of View:
- Horizontal: 74.1 to 3.3°
- Vertical: 46 to 1.9°
- Diagonal: 81.8 to 3.8°
Maximum Aperture: f/1.8 to 3.9
Minimum Focus Distance:
- Entire Zoom Range: 47.2" / 120.0 cm
- Wide: 3.9" / 10.0 cm

Video Capture
External Recording Modes: 4:2:2 10-Bit via HDMI
1920 x 1080
1280 x 720
640 x 360
320 x 180p
Embedded Audio: HDMI/LAN (RJ45)/USB
Audio Recording: AAC Audio
Broadcast Output: NTSC
IP Streaming: H.264, H.265, NDI|HX: 1980 x 1080 at 60p

Control
Pan/Tilt:
- Pan: 350° (-175 to 175°)
- Tilt: 120° (-30 to 90°)
Tally Light: Yes
Supported Control Protocols:
- IP
- NDI|HX2
- RS-422

Interface
Video I/O:
- 1x HDMI 1.4 Output
- 1x USB-C 2.0 Output
- 1x RJ45 (NDI) Output
Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O:
- 1x RJ45 (RS-422) Control
- 1x RJ45 (LAN) Control
Built-In Microphone: No
Built-In Speaker: No

Power
PoE Support: PoE+ 802.3at
Power I/O: 1x Barrel (10.8 to 13.2VDC at 1.8 A) Input

Environmental
Operating Conditions: 32 to 104°F / 0 to 40°C at 20 to 90% Humidity
Storage Conditions: -4 to 122°F / -20 to 50°C

General
OS Compatibility:
- Computer: Windows 10 or Later / macOS 11 or Later
- Mobile: Android/iOS
Dimensions (W x H x D): 6.3 x 7.6 x 6.5" / 160 x 192 x 166 mm (Without Cable Cover, Protrusions)
Weight: 4.0 lb / 1.8 kg (Body Only)

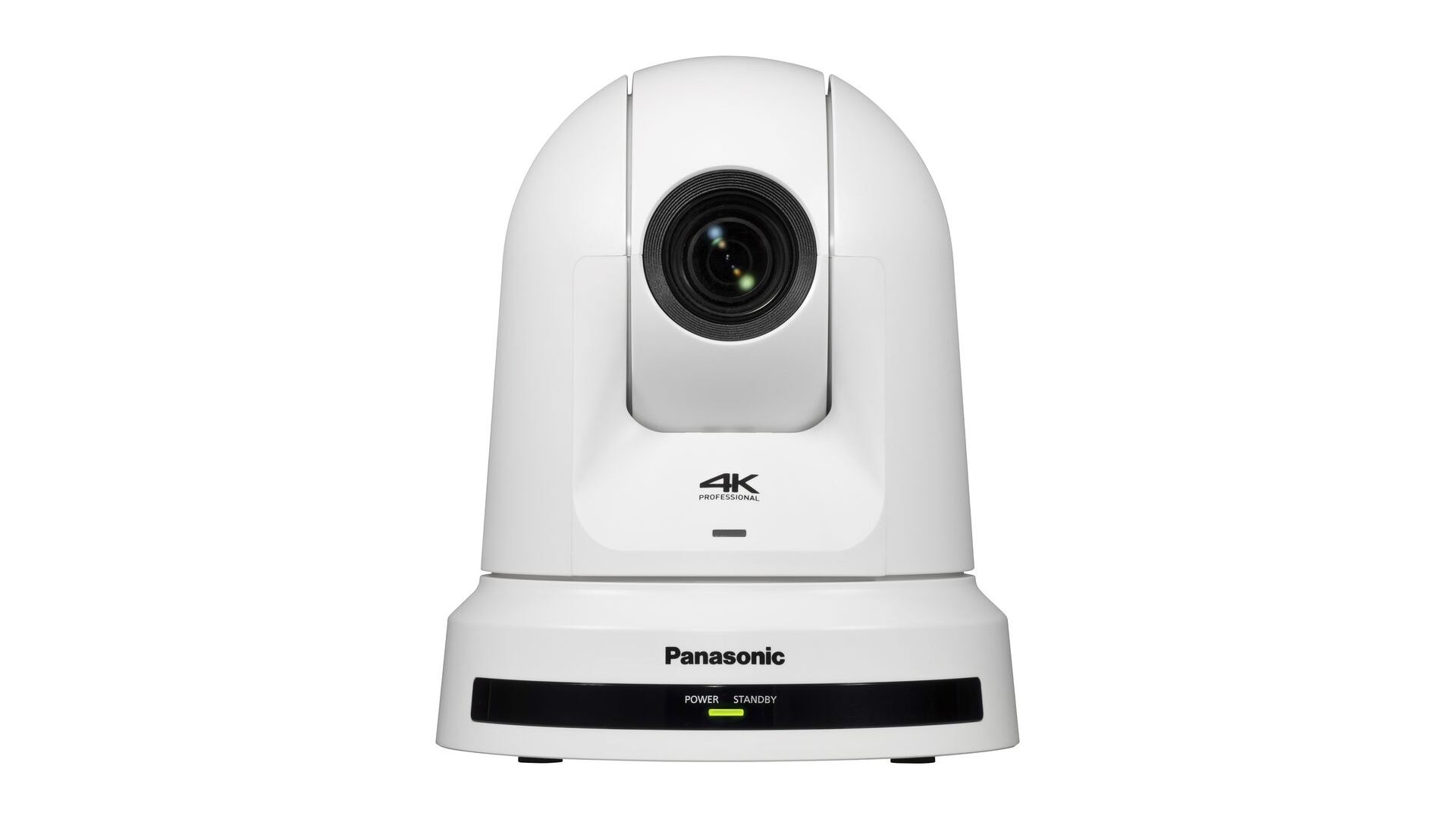

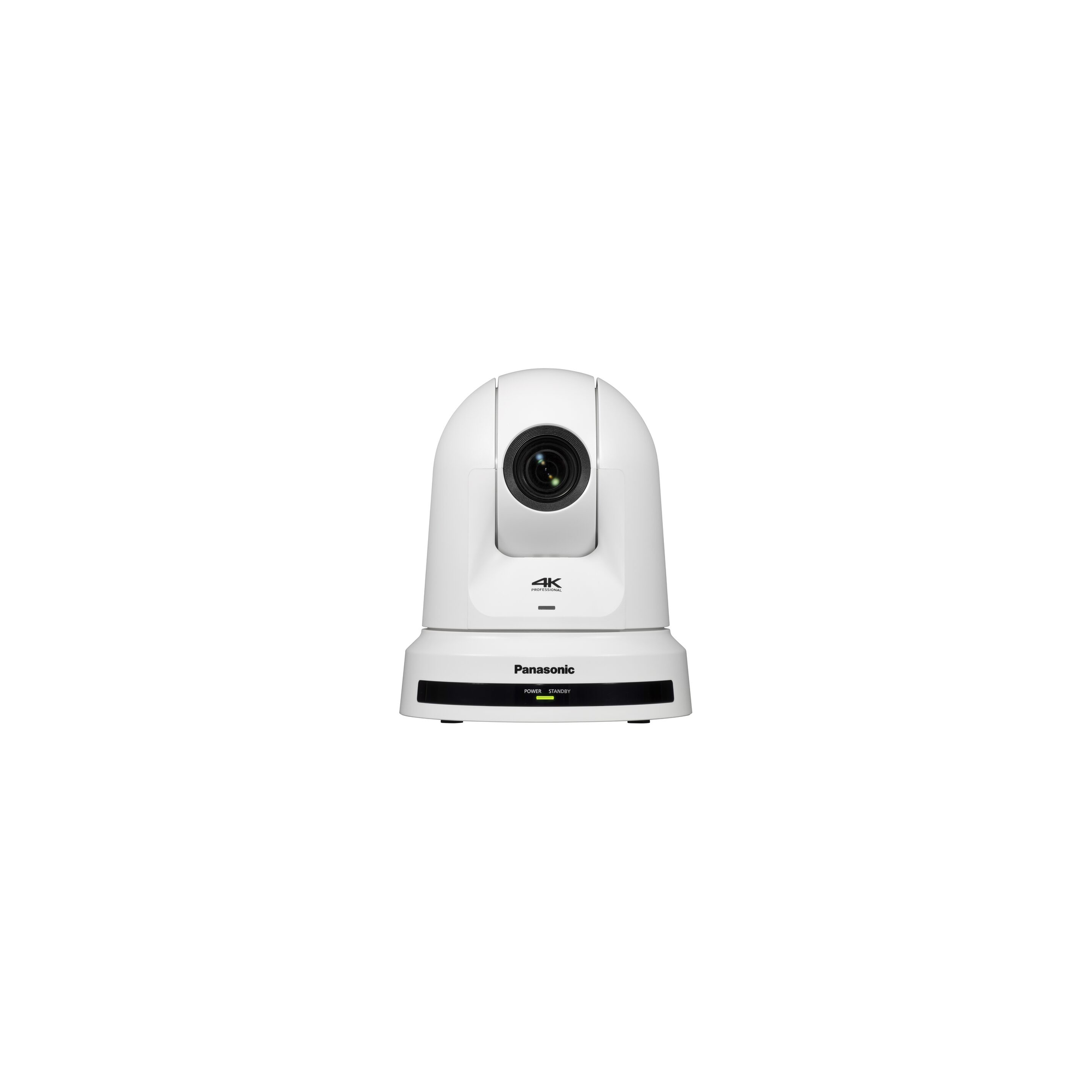

1x UE30 4K30 HDMI PTZ Camera with 20x Optical Zoom (White)
1x Power Supply
