Canon

Skaarhoj Remote Controller for PTZ Cameras, DC Power 12V/PoE+
go to the technical sheet
€ 3.459,41

€ 3.218,06 VAT excl.

Available in 19 days
Not sure if this is the right product for you? Talk to a consultant

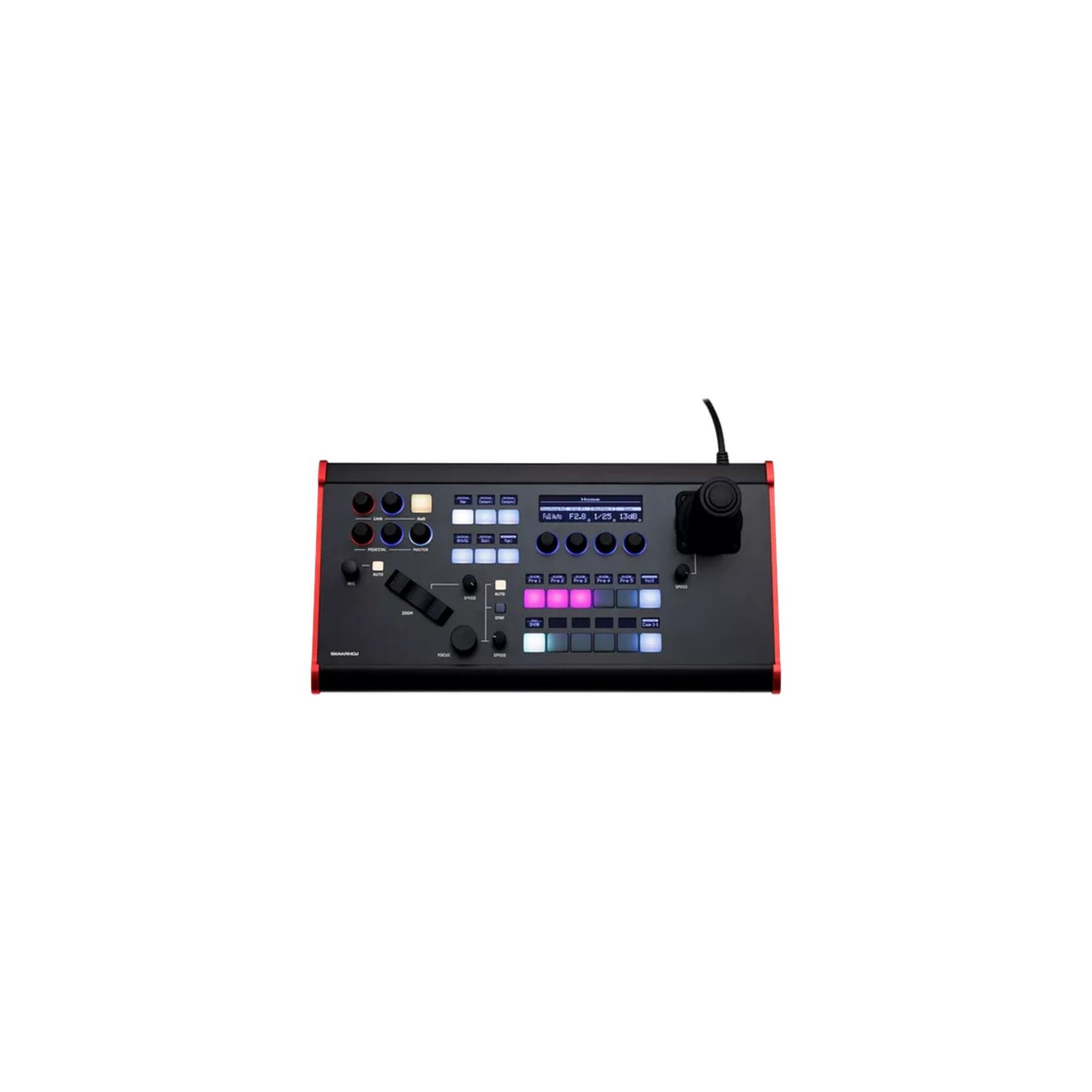

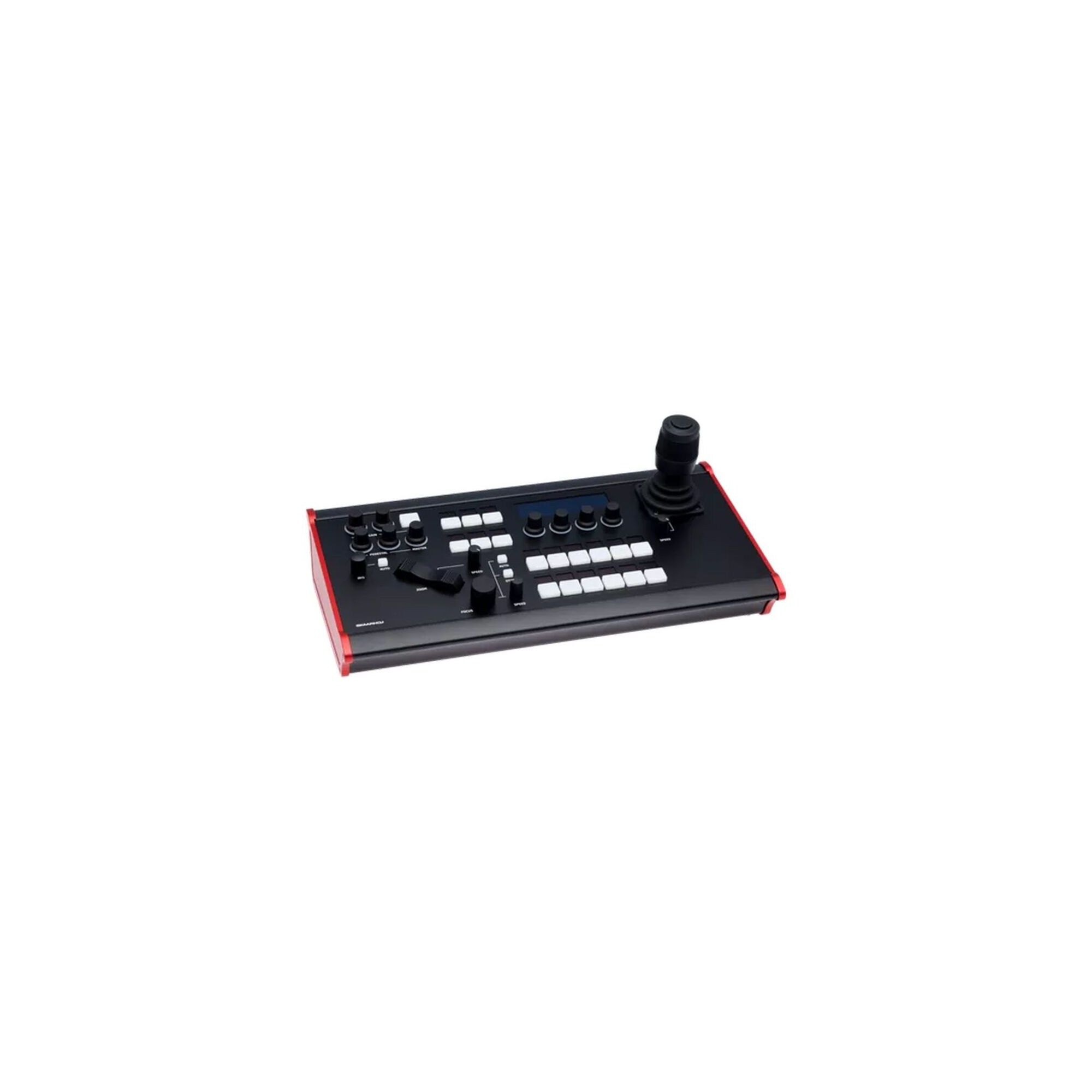

Canon Skaarhoj Remote Controller for PTZ Cameras, DC Power 12V/PoE+

Made by renowned panel manufacturer SKAARHOJ exclusively for Canon, the RC-SK5 controller combines Canon's they shine with creative innovation, at the center of which is you.

Integrate and control multiple PTZ cameras and Canon video cameras into your production via IP network, thanks to the Canon XC protocol.

° Precision control and adjustment
The professional-quality, ergonomically designed joystick offers a tactile, responsive connection to every connected camera, for intuitive control and precision.

° Monitor with smooth, accurate control
Easily switch from wide angle to telephoto with a zoom lever that works like a professional camcorder.
Stay in control with dedicated Iris, Focus, R and B Gain, Master and Pedestal buttons.

° Versatile control with multiple command sets
The RC-SK5 has 20 command set choices that control four activities each, giving you up to 80 command sets.
Get greater responsiveness and flexibility by pre-programming angles and transitions.
All presets are displayed on the panel for monitoring and control.

° Connect to the broader SKAARHOJ ecosystem
The RC-SK5 can be connected to other SKAARHOJ products, such as the Frame Shot Pro side panel, which offers even more intuitive control with color images of stored positions.

° Connect to third-party devices
With an additional paid license, SKAARHOJ's RC-SK5 offers the freedom to extend, customize and connect to other products and devices from different manufacturers.

General
Power (Adapter): DC 12V
Power (PoE): Yes (PoE)
External dimensions (W x H x D): 349 x 143 x 179 mm
Weight: 1.95kg
Operating temperature: From 0 to 40°C
Supported Protocols: XC Protocol (IP)
*Optional add-on license for greater connectivity

Connection specifications
No. of connectable cameras: 10 (IP) (The registered camera can be changed from the user interface)

Input/Output
Power: DC 12V/PoE+
Tally/GPIO: IP (requires additional license)
USB: Yes

Memory
Preset: Up to 100 for each camera (depending on camera specifications)
Hard button support for presets: Yes
Track: Yes

Control Panel
Menu Control: Yes (20 sets of menus)
No. of selectable camera buttons: 5+1

RC-SK5 controller
AC power adapter/cord
Getting started guide
