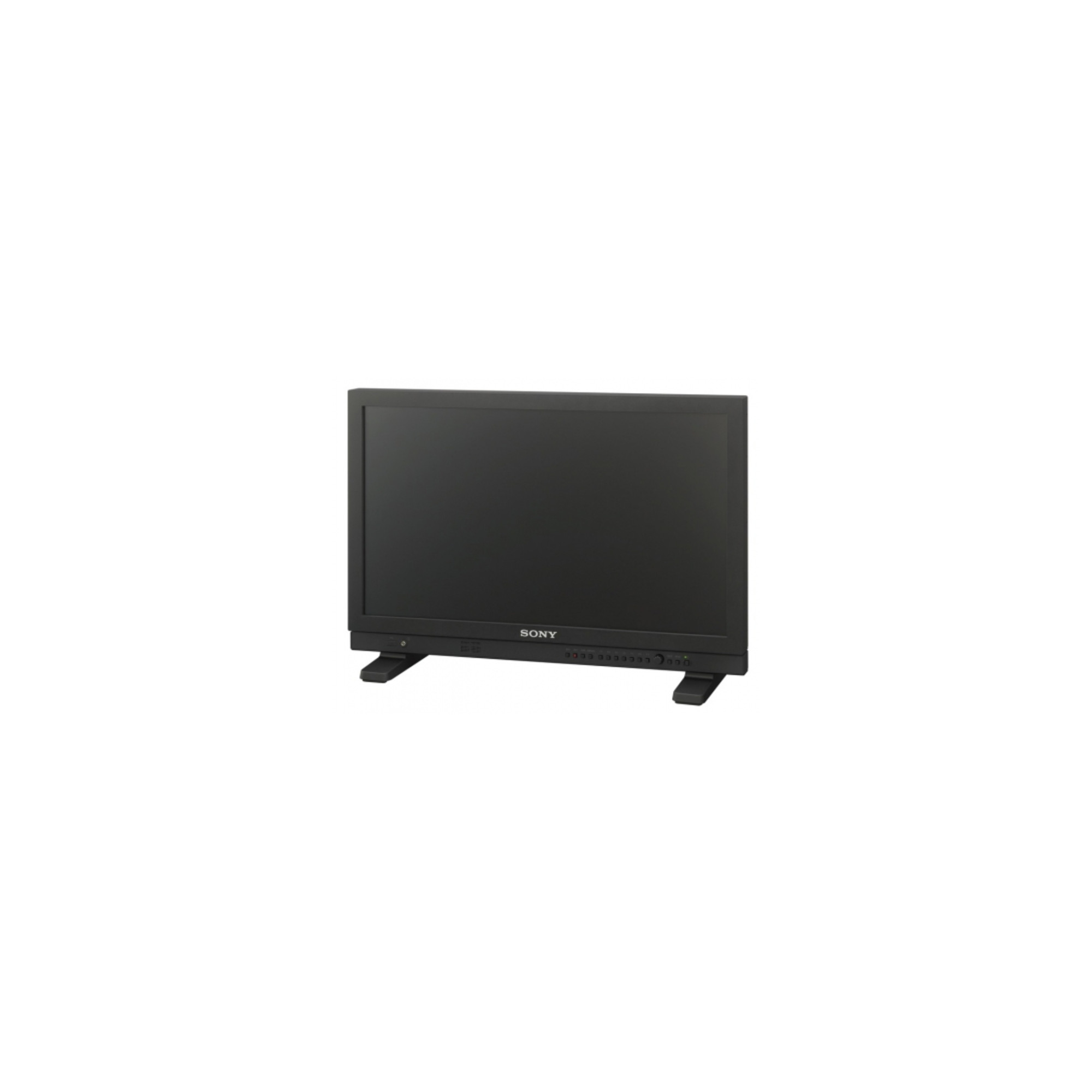

LMD-A220

Sony 22" Full HD (1920 x 1080) 16:9 Aspect Ratio Monitor

The LMD-A220 LMD-A Series 22" LCD monitor offers Full HD resolution and a compact, lightweight design.
Compared to previous Sony models, it is 12-22% lighter, 30% deeper and has more than 25% lower power consumption.
The LMD-A Series features the same user interface design, functionality, operation and convenience features as the PVM-A Series OLED picture monitors.
The continuity between the PVM-A and LMD-A models offers great user benefits when both monitors are used in the same network.
In addition, the LMD-A Series monitors offer maximum versatility for a wide range of user applications, both in the studio and in the field, including DC power, wall mounting and bracket fixing holes.
In addition, new camera link functions, such as camera and lens metadata display, and PaP function, provide the convenience of efficient operation both in the field and in post-processing.
The LMD-A220 version 2.0 expands and improves the monitor's ability to support 4K production, shopping channels, graphics and field applications.

Lightweight and stylish chassis with the widest viewing angle in the industry
Sturdy and stylish chassis with faceted edges.
Ideal for group monitoring.
Compared to previous Sony models, the weight is reduced by more than 12-22%, the depth by 30% and the power consumption by more than 25%.
Offers savings in transportation costs and power consumption.
Furthermore, it is a space-saving monitor ideal for use in digital galleries due to its compact size and light weight.

4K Production Features
The LMD-A220 V2.0 monitor meets the demand for an affordable HD monitor in a 4K system.
The unit supports the ITU-R BT.2020 color space and accepts one of the Quad-link 2SI 3G-SDI signals.
The monitor offers DCI-P3 and S-GAMUT/S-GAMUT3/S-GAMUT3.cine settings, with true EOTFs such as Gamma 2.6, S-Log3 (SDR) and S-Log2 (SDR).

Features for Shopping Channels
Shopping channels require a unique screen layout to instantly differentiate a product from its sales data.
The monitor allows you to set two flexible area markers anywhere on the screen.

Enhanced Field Application Features
The monitor is ideal for field applications with side-by-side image layout without synchronization, false color and audio muting functions.
You can monitor two images without synchronization.
False color allows you to check the exposure level of a camera at a glance from a distance.
Audio muting allows you to start shooting quickly.

2K Format Display and Dual-link HD-SDI Mode
This feature provides a cost-effective solution for 2K monitoring, ideal for on-set digital cinematography. A Dual-link HD-SDI input is also available.

Multiple Monitor Firmware Update Utility
Save time by simultaneously updating your monitors via your network.

- Lightweight, compact and low power consumption
- Optimized low latency I/P conversion
- Video input versatility
- Computer input versatility
- In-Monitor Display (IMD) function
- Waveform monitoring, vectorscope display and audio level meter
- False colour function
- Bracket and wall mounting options
- Intuitive user interface and functionality
- Timecode function
- On-screen tally
- Network control function
- Auto white balance
- Advanced Picture and Picture function
- 2K (2048 x 1080) input and image scrolling
- Camera/lens metadata display and on-screen tally function
- Anamorphic image conversion and Active Format Description (AFD)
