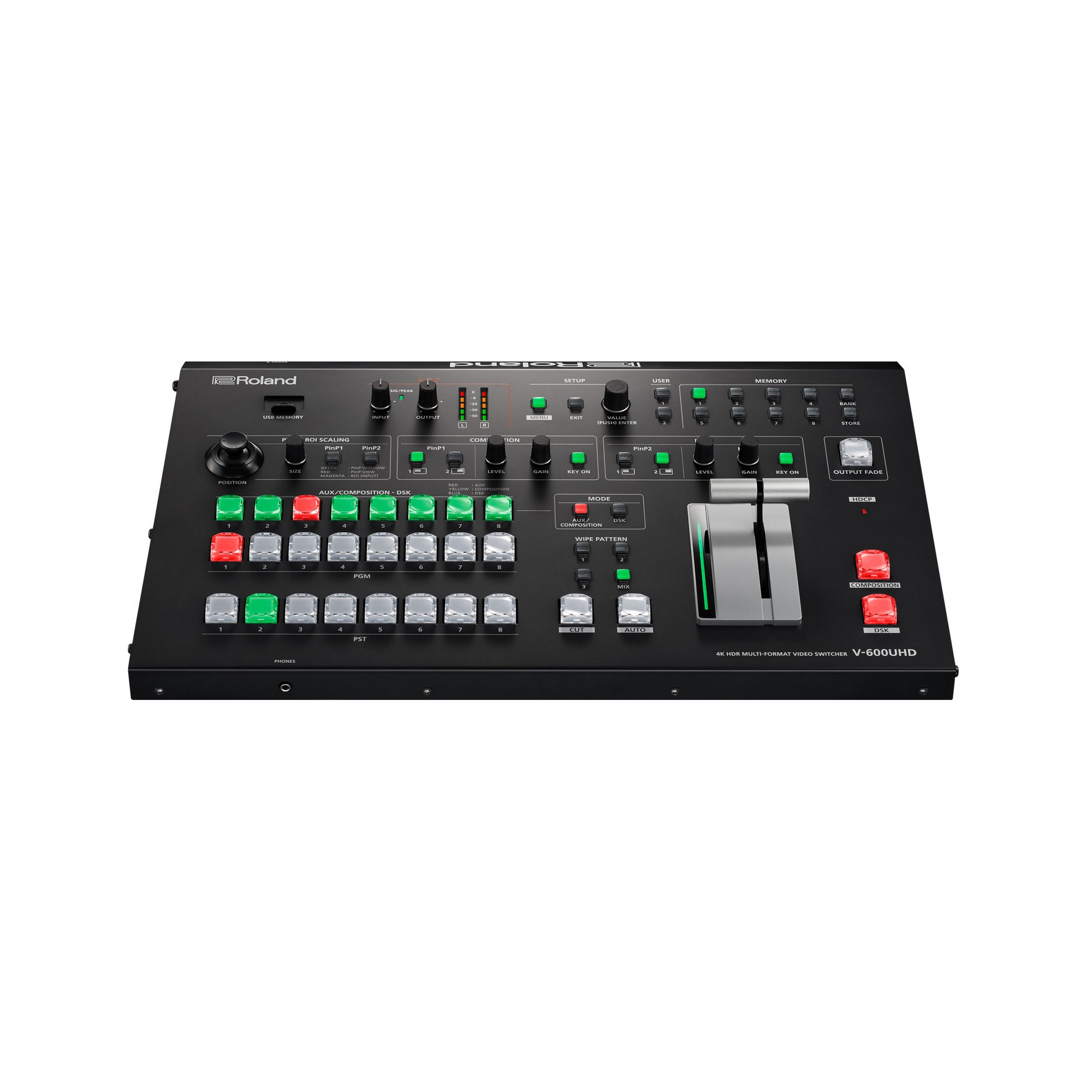

V-600UHD

Processing
Video Processing
4:4:4 (Y/Pb/Pr), 10-bit
Supported Video Input Formats
Video: 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 2160/59.94p (UHD 4K), 2160/50p (UHD 4K), 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)

PC: 1600 x 1200/60 Hz (UXGA), 1920 x 1080/60 Hz (FHD), 1920 x 1200/60 Hz (WUXGA, Reduced blanking), 3840 x 2160/30 Hz (UHD 4K), 3840 x 2160/60 Hz (UHD 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x 2160/60 Hz (DCI 4K)

Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed
Supported Video Output Formats
Video: 1080/59.94p, 1080/50p, 2160/59.94p (UHD 4K), 2160/50p (UHD 4K), 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)

PC: 1920 x 1080/60 Hz (FHD), 3840 x 2160/60 Hz (UHD 4K), 4096 x 2160/60 Hz (DCI 4K)

MULTI-VIEW: 1080/60p

* Conforms to VESA DMT, VESA CVT, CEA-861-F
* Color Gamut: BT.709, BT.2020
* Dynamic Range: SDR, HDR PQ (HDR10) HDR HLG
Video Effects
Transition: Mix, Cut, Wipe (9 patterns)
Composition: PinP, Key (*1), PinP + Key (*1)
DSK: PinP, Key (*1), PinP + Key (*1)
Others: Output Fade, Output Freeze

*1 Luminance Key, Chroma Key
Audio Processing
24 bits/48 kHz
Audio formats
SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch
Audio Effects
Matrix mixer
Delay (1 ms units, max 500 ms)
Test tone output
Connectors
Input Connectors
HDMI IN 1--4 connectors: HDMI type A (HDMI 2.0)
SDI IN 5--6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M)
RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
AUDIO IN L/R connectors: XLR-3-31 type (balanced)
Output Connectors
SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B))
HDMI OUT 1--3 connectors: HDMI type A (HDMI 2.0)
MULTI-VIEW connector: HDMI type A (HDMI 1.4)
AUDIO OUT L/R connectors: XLR-3-32 type (balanced)
PHONES jack: Stereo miniature phone type
Other Connectors
USB MEMORY port: USB A type (for USB flash drive)
RS-232 connector: DB-9 type (Male) (for Remote Control)
CONTROL port: RJ45 type, 100BASE-TX (for Remote Control)
TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8)

* XLR type: 1 GND, 2 HOT, 3 COLD
Audio Input/Output Characteristics
Input Level
AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)
Input Impedance
AUDIO IN L/R: 15 k ohms
Output Level
AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT L/R: 600 ohms
PHONES: 10 ohms
Other
Power Consumption
75 W
Dimensions
482 (W) x 300 (D) x 109 (H) mm
19 (W) x 11-13/16 (D) x 4-5/16 (H) inches
* When rack mount angles are fitted.
Weight
5.3 kg
11 lbs 11 oz
* Including rack mount angles.
Operation Temperature
+5 to +40 degrees Celsius
+41 to +104 degrees Fahrenheit
Accessories
Owner''s Manual
Power cord
Rack-mount angle x 2
