LIVEPRO L1

Name: LIVEPRO L1
Brand: Feelworld
SKU: LIVEPRO L1
Price: 913532 NGN
Availability: InStock

Feelworld

Multi-format Video Mixer 4 x HDMI inputs multi camera production

go to the technical sheet

₦ 913,532.00

₦ 849,797.25 VAT excl.

Available 2 unit in 4 Days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

The LIVEPRO L1 with 4 channels HDMI inputs and 1 channel HDMI output (all of them support 1080p) is a Mixer For live streaming. There is a USB3.0 interface and plus the LAN port for controlling and upgrading, for audio, it has 2 interfaces, one for input, and the other one for output. All of these make it easy to create professional multi camera productions . It is able stream any one from the 4 HDMI inputs to any live broadcasting platform via third party live streaming software such as OBS . Simply connect LIVEPRO L1 and you can switch live between 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles.

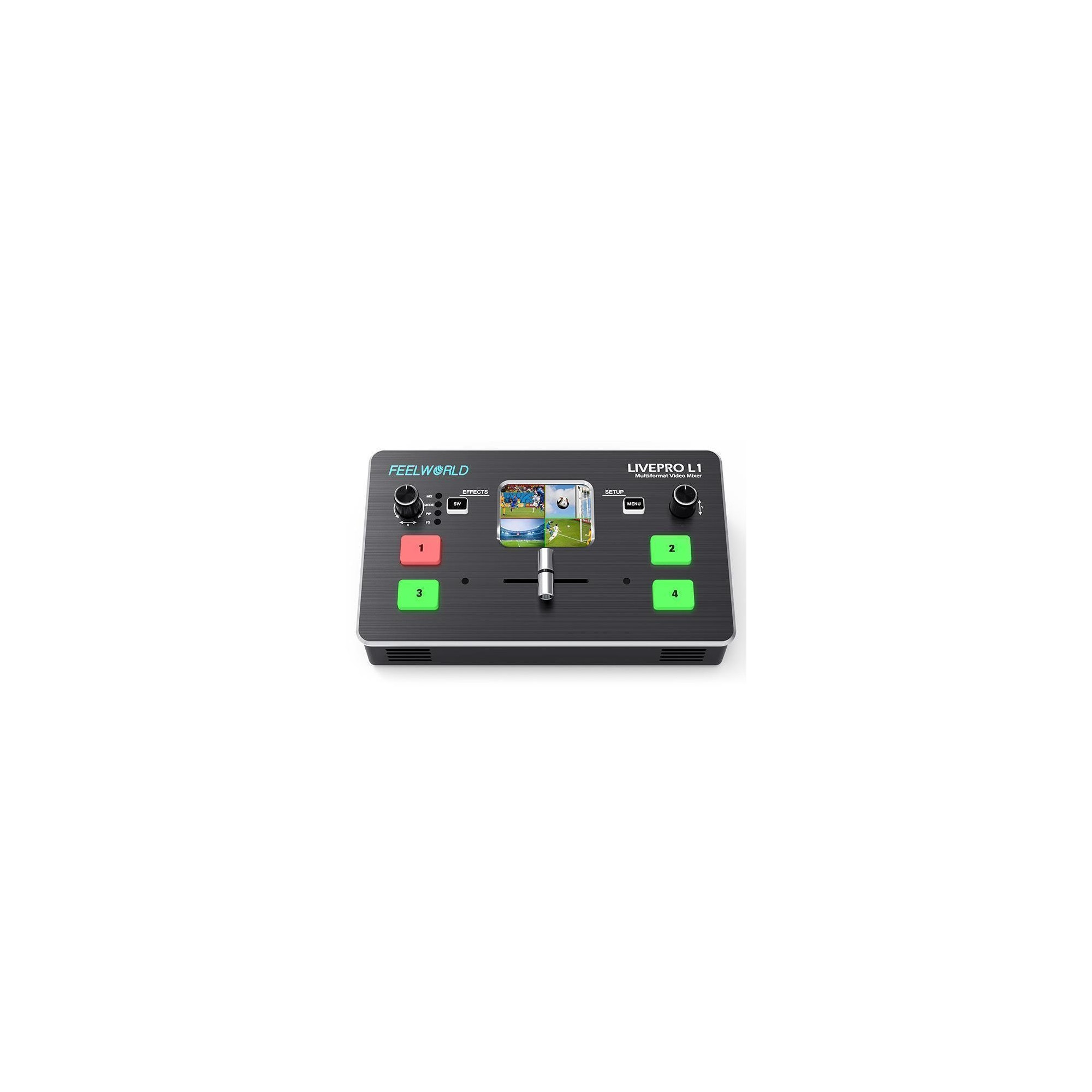

The LIVEPRO L1 has an exquisite and compact control panel. The 4 buttons are for selecting input signals, green flashing means the signal has been selected, then switch the T-Bar, the selected signal will be displayed on the screen seamlessly, the green button changed to red after switched. The Menu button is for menu setting, the SW button is for selecting different functions such as mixing, scaling, transition time setting and the other functions. The left knob is for voice volume controlling, the right knob is for menu setting as well. Combination of two knobs can to the angle controlling for PTZ camera. From the TFT screen, we can preview 4 HDMI signals and easily do menu setting.

The LIVEPRO L1 is a mini switcher, that is small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows , the LIVEPRO L1 has a screw tap for standard video mounts and conveniently attached onto a tripod to stay out of the way. It is light weight design makes it ideal for mobile video applications too.

Features

* 2"TFT display on board to live preview 4 inputs
* Auto cut and manual switch (T-Bar)
* USB capture video complying with UVC for live streaming
* Audio offers embedded or external source to select
* Support switch between 6-picture PVW and PGM to HDMI out
* Support PIP
* 14 transition effects on T-Bar
* Licensed features including DSK, PTZ control etc.
* Control by PC or Smart phone (via APP)

Download

Datasheet

Download (194.81KB)

Model LIVEPRO L1
Screen Size 2.0" TFT Display
Backlight LED

Input
4 X HDMI HDMI

Output
1 X HDMI HDMI
1×USB TypeA USB 3.0

Audio
Audio In 1×3.5mm Stereo Jack
Audio Out 1×3.5mm Stereo Jack

Input Solution
HDMI
SMPTE 720p@50/60 |1080i@50 | 1080p@23/24/30/50/60)
VESA 1024×768@60 | 1280×720@60|1280×768@60 |1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60| 1440×900@60| 1600×1200@60 | 1680×1050@60 |1920x1080@50i| 1920×1080@60 |1920x1080@60i|1920×1200@60

Output Solution
HDMI
SMPTE 720p@60 |1080p@60
VESA 1024×768@60 | 1280×720@60|1280×768@60 |1280×800@60 | 1280×1024@60 |1360×768@60 | 1366×768@60| 1440×900@60| 1680×1050@60 | 1920×1080@60

General
Input Voltage DC 12V / 1.5A
Max Power 18W
Working Temperature -30°-50°
Humidity 10%-85%
Unit Size 185(L) x 110(W) x 39(H)mm
Unit Weight 648g
