PT30X-4K-WH-G3
PTZOptics
₦ 3.764.789,20 VAT excl.
The Move 4K camera captures resolutions up to UHD 4K60, and it features auto-tracking for presentations where your subject moves around the room, great for education, how-to, and corporate environments without the need for an operator.
Its wide dynamic range, 3D noise reduction, and low-bandwidth, high-quality NDI|HX 3 capabilities provide a sharp, consistent image, even in low light.
° Auto-Tracking PTZ Camera
The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow.
The Move 4K is capable of 4K60 (1080p60 over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment.
The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.
° Multiple Output Options
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI|HX for unparalleled performance and versatility.
The Move 4K offers built-in auto-tracking capabilities with no need to run software on another computer, freeing teams of the need for a camera operator.
° Pan, Tilt, Zoom, Track
Control your production from behind the scenes or right in front of them.
The Move 4K's auto-tracking can lock into a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button.
The Move 4K can track subjects up to 300' away.
In addition to the auto-tracking features, users will also have access to the latest Web UI, updated to provide everything you need in one simple menu.
Almost every feature in the Web UI has a tutorial function, great for novice producers navigating the settings for the first time.
° Software App
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS and Twitch
- Camera configuration and management tools
- Support and testing utilities
ST500 Wall Mount B
PT-CM-1-WH
PT-SUPERJOY-G1
HCM-1-BK
Imaging
Image Sensor: 1/1.8"-Type CMOS
Sensor Resolution: Effective: 8.42 Megapixel (3840 x 2160)
IR Cut Filter: No
Built-In ND Filter: None
Focus Control: Autofocus
Manual: Focus
Exposure Control
Shutter Type: Electronic Global Shutter
Shutter Speed: 1/10000 to 1/30 Second
Signal-to-Noise Ratio: 55 dB
Minimum Illumination: 0.5 Lux
Flip / Mirror Support: Image Flip, Mirror (Vertical)
Lens
Focal Length: 7.1 to 210mm (35mm Equivalent: 32 to 825mm)
Optical Zoom Ratio: 30x
Max Digital Zoom: 16x
Field of View:
° Horizontal: 59.2 to 2.5°
° Vertical: 34.6 to 1.4°
Maximum Aperture: f/1.61 to 5.19
Video Capture
External Recording Modes:
° SDI/BNC
HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720i) at 59.94/60.00 fps
° HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps
HD (1920 x 1080i) at 50/59.94/60.00 fps
HD (1280 x 720i) at 59.94/60.00 fps
Broadcast Output: NTSC/PAL
IP Streaming:
H.264, H.265, MJPEG, NDI|HX, RTMP, RTSP, SRT
640 x 360 to 3840 x 2160 to
320 x 240 to 720 x 480 to
IP Multi-Stream Support:
Simultaneous
H.264, H.265, MJPEG, RTMP, RTSP: 2160p, 1080p, 720p, 480p, 360p
Control
Presets: 255
Move Speed:
° Pan: 1.7 to 100°/sec
° Tilt: 1.7 to 69.9°/sec
Movement Range: Tilt: 120° (-30 to 90°)
Tally Light: Yes
Supported Control Protocols:
IP
IR
NDI
Pelco-D
Pelco-P
RS-232
RS-485
VISCA
Interface
Video I/O:
° 1 x HDMI 2.0 Output
° 1 x BNC (3G-SDI) Output
° 1 x RJ45 (NDI) Output
° 1 x USB-A 2.0 Output
Audio I/O:
° 1 x 1/8" / 3.5 mm TRS Stereo Line Input
° 1 x 1/8" / 3.5 mm TRS Stereo Line Output
Other I/O:
° 1 x D-Sub 8-Pin (RS-232) Control Input
° 1 x D-Sub 8-Pin (RS-232) Control Output
° 1 x Block 2-Pin (RS-485) Control Input/Output
Built-In Speaker: No
Power
PoE Support: PoE+ 802.3at
Power I/O: 1 x DC (12VDC) Input
Power Consumption: Device: 12 VDC at 2 A (12 W)
Environmental
Operating Temperature: 14 to 104°F / -10 to 40°C
Storage Temperature: -40 to 140°F / -40 to 60°C
General
Material of Construction: Aluminum, Plastic
Dimensions: 9 x 7.1 x 6.7" / 228 x 181 x 170 mm
Weight: 4.4 lb / 2 kg

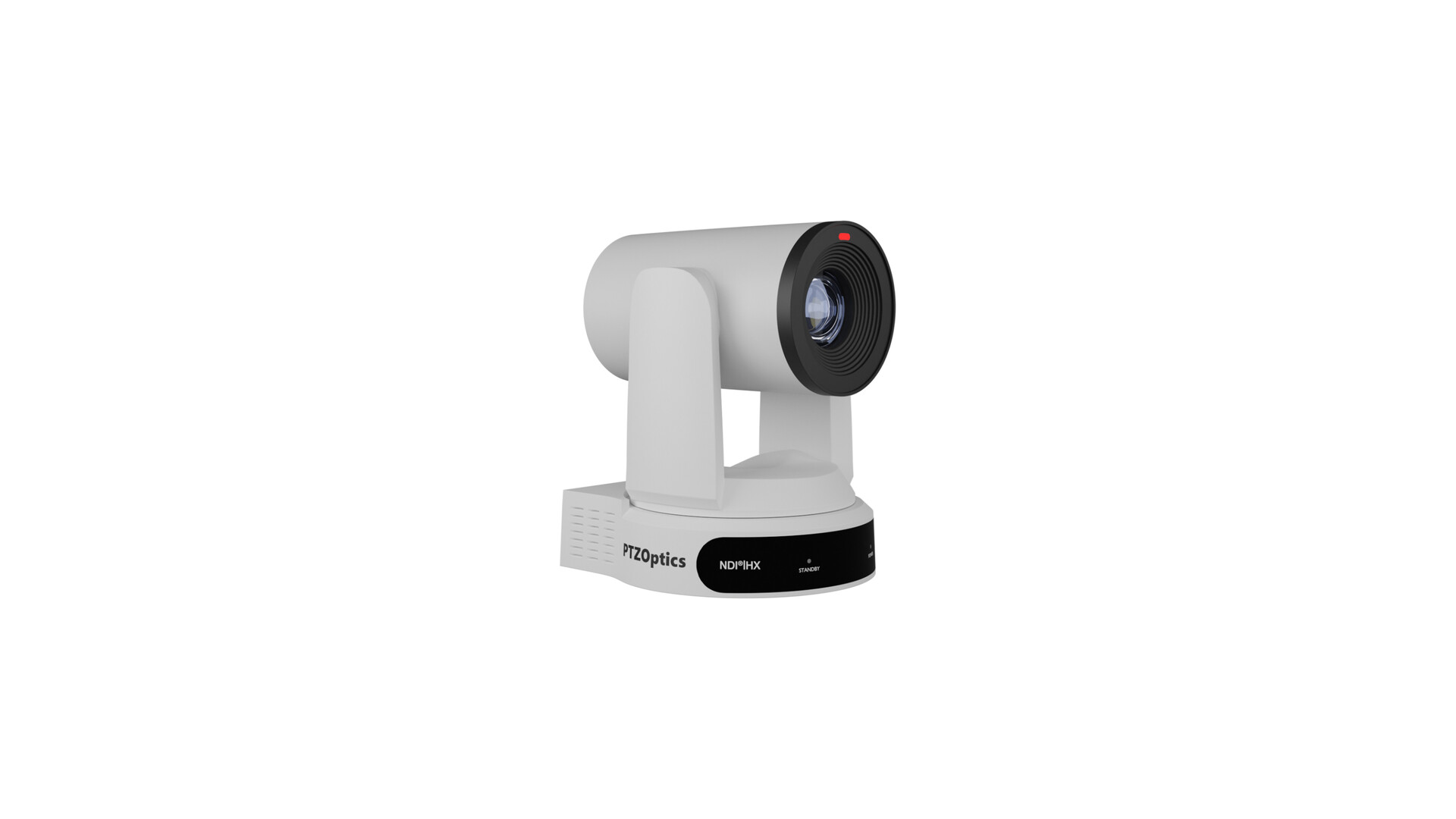

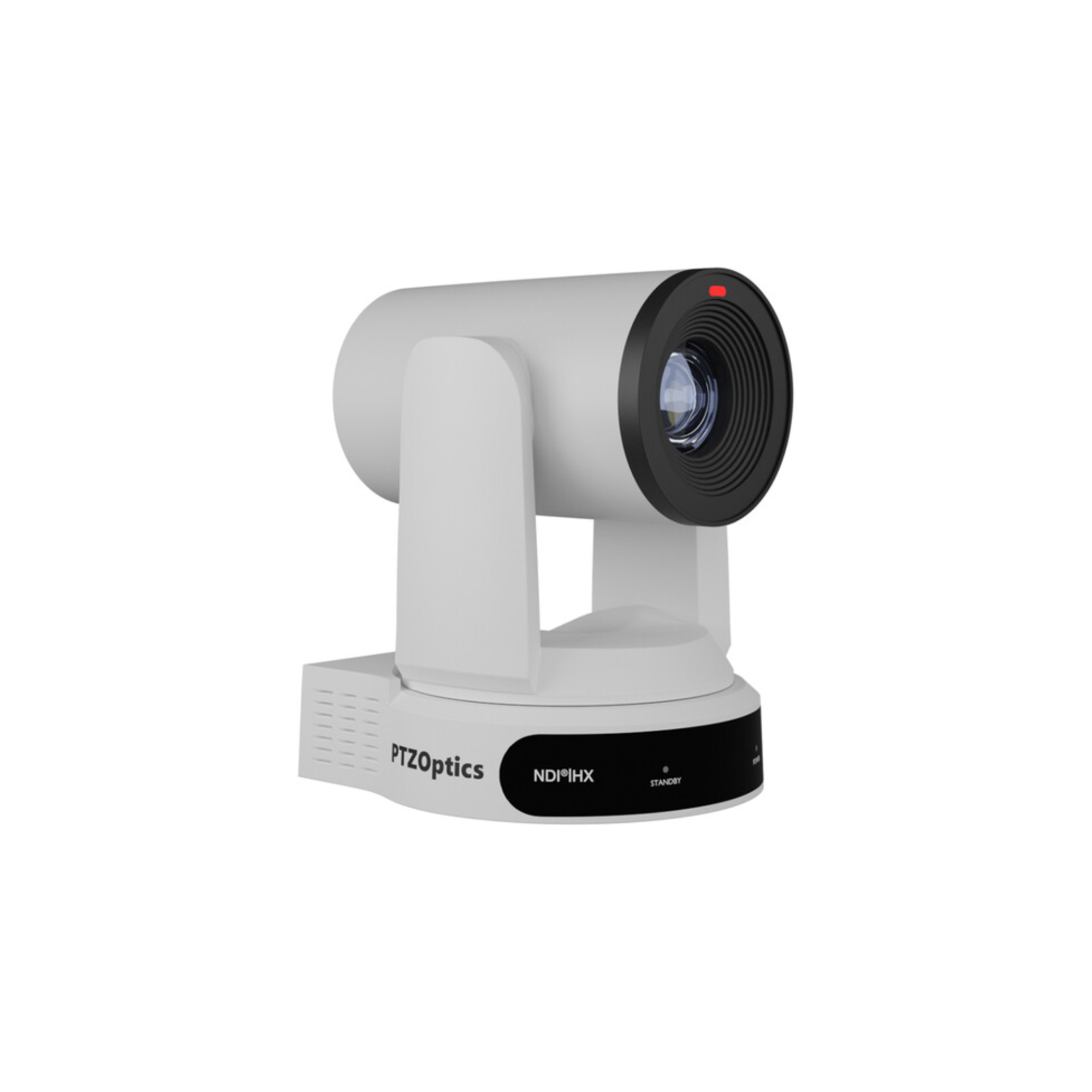

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)
IR Remote Control
12 VDC Power Adapter
USB-A to USB-A Cable
RS-232 Cable
2x AA Battery
