Blackmagic

9338716001310
Camera Converter SDI <> Fibre
go to the technical sheet
€ 756,70

€ 703,91 VAT excl.

Available in 11 days
Not sure if this is the right product for you? Talk to a consultant
The Blackmagic Design ATEM Camera Converter enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via an optical fiber link. You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals. This optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring. In addition, the SDI/HDMI outputs can be switched between return program and camera input for monitoring.

With an internal battery, the converter can be used at remote locations when the cameras are placed at far-off locations. Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones. By embedding microphone audio into channels 15 and 16 of the camera optical fiber video output, the Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones.

Using the 12V power connection, the converter can be connected to any power source or a car battery. By connecting the switcher's program output to the ATEM Camera Converter via optical outputs, the camera converter illuminates the 2 tally LEDs using open standard tally packet in the SDI output. You can select the camera number using the USB software or by camera number button on the keypad. In addition, you can also view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs.

Featuring an integrated belt clip, the camera converter can be attached to the belt for portability. With the help of a camera mount, the converter can be mounted onto a tripod. In addition, the camera converter features microphone inputs for audio capability.

Made of aircraft-grade aluminum, the camera converter can withstand bumps and shocks without breaking. Built-in button pad allows you to control power, microphone level, talkback and video, and battery indicators. You can update converters firmware via a USB port. The camera converter can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location.

Enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via optical fiber link
You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals
Optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring
SDI/HDMI outputs can be switched between return program and camera input for monitoring
Includes an internal battery
Can be used at remote locations when the cameras are placed at far-off locations
Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones
Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones by embedding microphone audio into channels 15 and 16 of the camera optical fiber video output
Can be connected to any power source or a car battery using the 12V power connection
Illuminates the 2 tally LEDs using open standard tally packet in the SDI output by connecting the switcher's program output to the ATEM Camera Converter via optical outputs
You can select the camera number using the USB software or by camera number button on the keypad
You can view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs
Features an integrated belt clip
Can be attached to the belt for portability
Can be mounted onto a tripod with the help of a camera mount
Features microphone inputs for audio capability
Made of aircraft-grade aluminum
Can withstand bumps and shocks without breaking

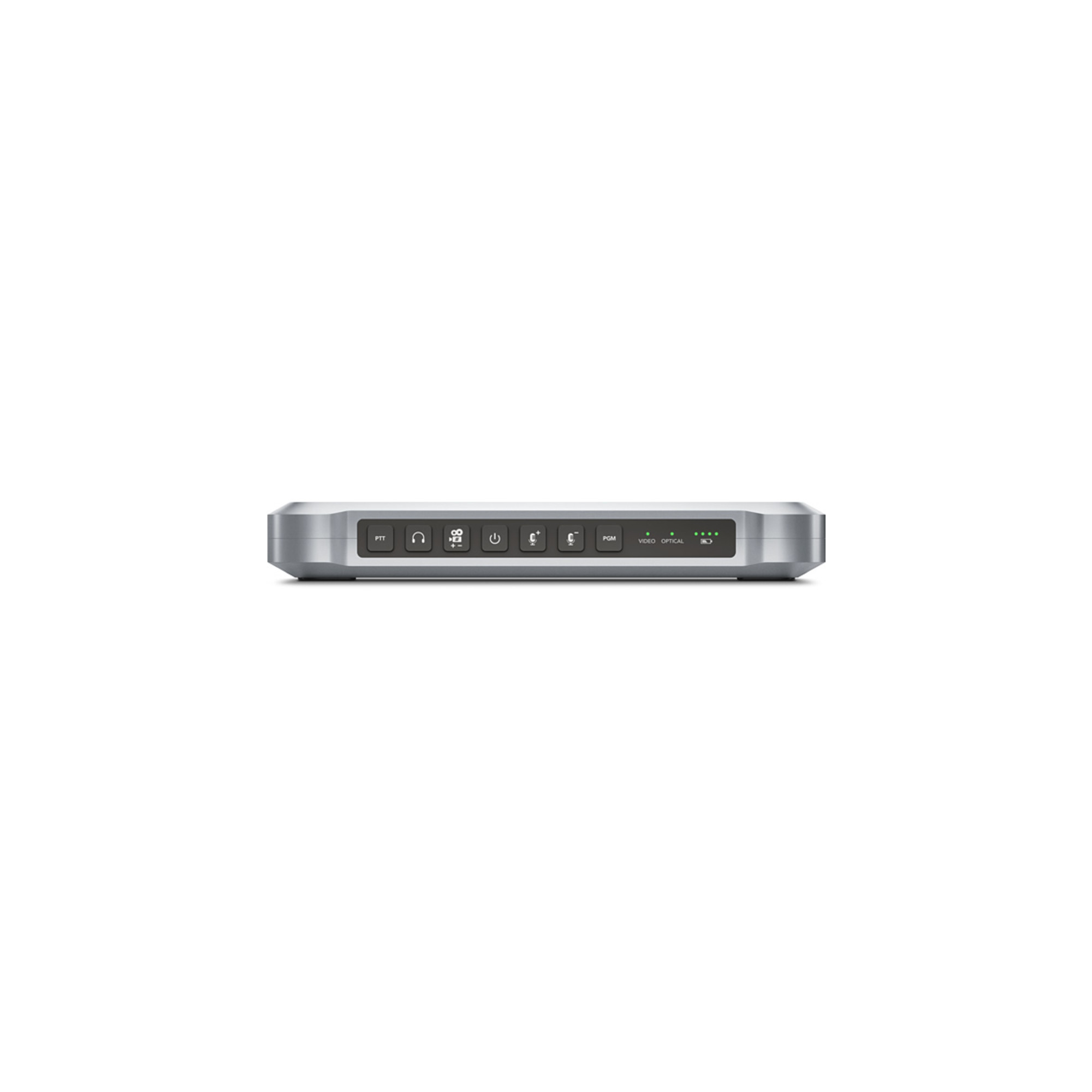

Built-in button pad allows you to control power, microphone level, talkback and video, and battery indicators
You can update converters firmware via a USB port
Can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location

Video input
SDI video input: 1 x 10 bit SD / HD switchable
SDI video output: 1 x 10 bit SD / HD switchable
DMI video input: 1 x connector
HDMI 1.3 type A HDMI video output: 1 x HDMI 1.3 type A connector
Fiber optic video input: 1 x LC type, 10 bit SD / HD switchable
Fiber optic video output: 1 x LC type, 10 bit SD / HD switchable

Only single mode LC type fiber optic cables are recommended for all of the above fiber optic connections

Analog audio:
2 balanced 1/4 "TRS (stereo) connectors, line or microphone input. When connected, replaces audio from SDI or HDMI input. 1 3.5 mm stereo connector for talkback microphone. 1 x 3 stereo connector , 5mm for stereo headphones (compatible with iPhone compatible earphones)
Computer interface: 1 x high-speed USB 2.0 interface for configuration and firmware updates
SDI compliance SMPTE 259M, SMPTE 292M
4: 2: 2 video sampling
Audio Sampling Television standard sampling rate of 48Khz, 24-bit A / D conversion
10-bit color accuracy
4: 2: 2 YUV color space
Multi-rate support SDI and HDMI switching between 270 Mb / s SD-SDI and 1.5 Gb / s HD-SDI
Firmware update Firmware integrated in the software driver. Loaded at system startup or via update software
Power supply:
12V power supply included with international plug adapters for all countries
Supported operating systems: Microsoft Windows XP, Windows Vista. Windows 7 and Apple Mac OS X
Packaging information
Package Weight: 2.45lbs
Box Dimensions: 8.35 x 6.6 x 3.05 "

Blackmagic Design ATEM Camera Converter
