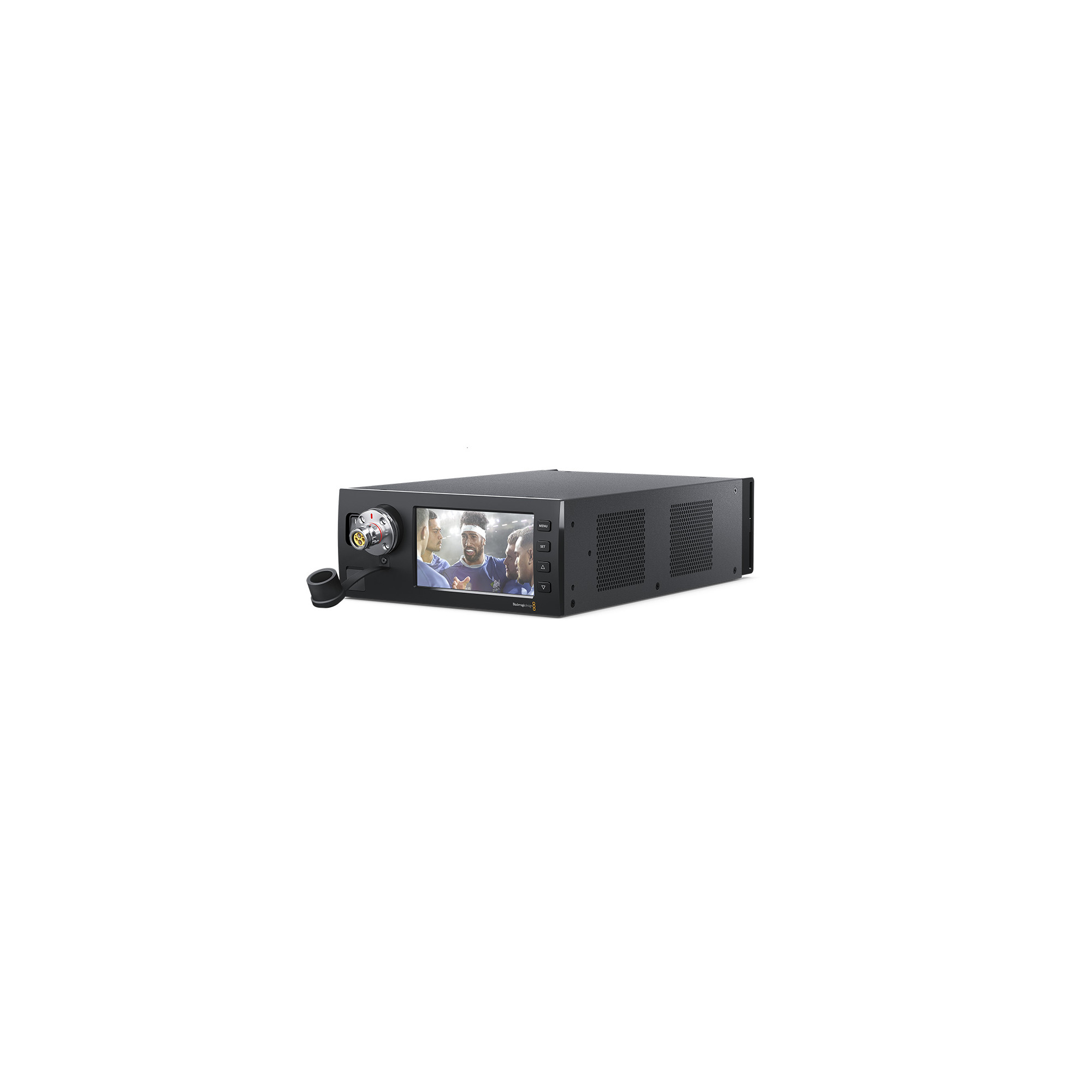

Studio Fiber Converter

Connections
Fiber optic input
1 x SMPTE hybrid fiber optic input, with SMPTE 304 female connector
SDI video input
3 x 12G-SDI return signals, including program, remote control, tally, genlock, and intercom on input 1
SDI video output
2 x 12G-SDI outputs for Ultra HD up to 60p
Talkback audio
15 and 16 SDI channels for production, analog audio in and out supported via 25-pin connector for talkback for production and for technical communication
Balanced XLR audio output
4 x analog audio outputs for the camera

Optical fiber output
1 x In/Out connection via 10 Gb-E (currently not active)

Computer interface
1 x USB C port

Blackmagic Studio Fiber Converter

Standard
HD video standard
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra video standard
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60

Compliance with the SDI standard
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M level B, 425M
Sampling at: 10 bit
Color space: REC 709, REC 2020

Multirate support
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI

Operating Systems
Mac Icon
Mac OS
macOS 10.12 Sierra or later
Windows Icons
Windows 8.1 or Windows 10

Power
Input 110 - 240V AC

Environmental specifications
Operating temperature: 0° to 40° C
Storage temperature: -20° to 45° C
Relative humidity: 0% to 90% non-condensing


Product includes
1x Blackmagic Studio Fiber Converter
1x SD card with software and manual
1x Warranty (One year limited warranty provided by the manufacturer)

1x Blackmagic Studio Fiber Converter
1x Scheda SD con software e manuale
1x Garanzia (Garanzia limitata di un anno fornita dal produttore)
