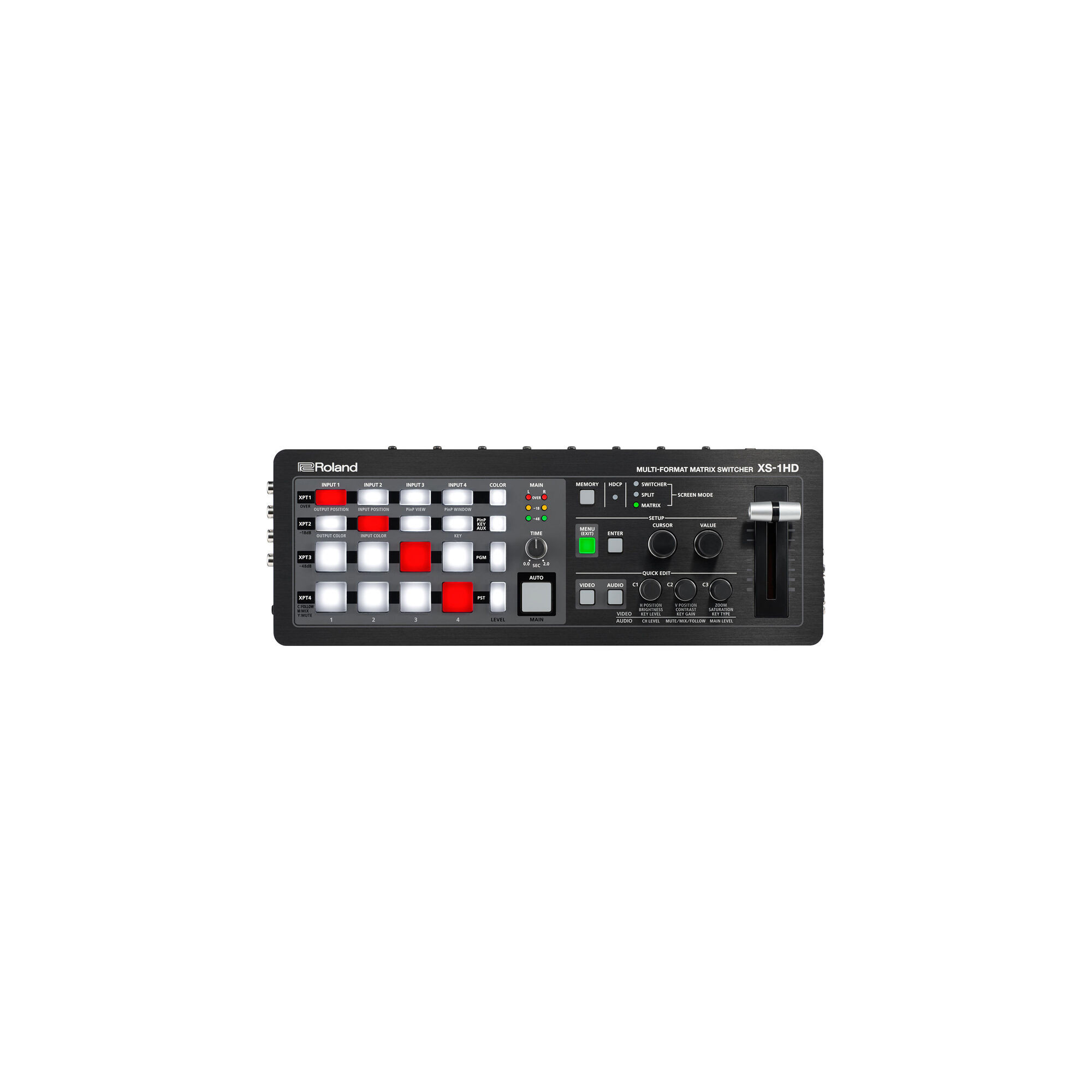

XS-1HD

Name: XS-1HD
Brand: Roland
SKU: XS-1HD
Price: 3885748 NGN
Availability: InStock

Roland

EAN: 4957054510367

Multi-format Matrix Switcher HD 4 HDMI inputs-4 HDMI ouputs

go to the technical sheet

₦ 3,885,748.00

₦ 3,614,649.00 VAT excl.

Available 1 unit in 4 Days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

A versatile and compact switcher with multi-screen output and video compositing.
A multi-format matrix switcher with scalers that supports up to full HD.
MAIN FEATURES
A table-top matrix switcher that's the width of a 13" laptop, equipped with four HDMI inputs and outputs
High-quality 4:4:4/10-bit processing at up to WUXGA/1080p
Frame synchronizer and scaler on all inputs
Three operation modes Matrix Mode allow switching of 4 sources to any of 4 outputs
Switcher Mode allows PinP, key-compositing, and dissolve transitions
Split Mode allows PinP of up to three A versatile and compact device that can be used as a Mixer, Matrix or Switcher with scaler and multiscreen output.

Main features
__________________________________
° Small desktop switcher equipped with 4 HDMI inputs and 4 HDMI outputs
° Very high quality signal processing 4:4:4/10bit up to 1080 60p
° Possibility to synchronize video frames and scalers on all outputs that allow you to connect video sources of different resolutions
° Three operating modes in matrix mode allow the mixing of 4 sources on each of the 4 outputs
° The switcher mode allows PinP. Key-compositing (use with green screen) and video transitions
° Split mode allows PinP up to 3 windows
° Built-in 8-channel audio mixer that manages the audio of the 4 HDMI signals and the analog stereo input
° Built-in EDID emulator that prevents problems that may arise from connecting sources with different resolutions
° HDCP compliant
° USB port to load still images that can be displayed when necessary
° Analog stereo audio output and input (RCA)
° Headphone output with dedicated volume
° T-bar for fades
° Serial port for any external remotes
° Possibility to store up to 16 memories with your favorite settings

Ideal for live events in general, where it is necessary to synchronize and mix different video sources and direct the output to different screens.
It is perfectly suited to fixed installations such as ceremony halls, theaters and conference rooms where videos are directed to different destinations or complex installations where the interaction of video switchers, matrices, etc. would be necessary.
Settings are recalled simply by pressing the memory location where they were loaded. Even complex setups can be recalled instantly.
The RS-232 port can be used for control from external devices.
HDCP compatibility can be used to project copyrighted content from Blu-ray or smartphones onto screens.
Still images can be loaded onto a USB drive and projected at will.

Please remember to register your product on the Roland website by following this link

Download

Datasheet

Download (417.45KB)

Video
__________________________________
Processing
4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits
Input Connectors
HDMI : HDMI type A x 4 (HDMI INPUT 1-4) - HDCP Supported
Output Connectors
HDMI : HDMI type A x 4 (HDMI OUTPUT 1-4) - HDCP Supported
Formats
480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1)(*2), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
&emsp, *Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
&emsp, *Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
&emsp, (*1) Input only.
&emsp, (*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Effects
Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 2 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.
Still Image
Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed

Audio
__________________________________
Sampling Rate: 24 bits/48 kHz
Input Connectors
Video: HDMI type A x 4
Audio: RCA pin type
Output Connectors
Video: HDMI type A x 4
Audio: RCA pin type
Phones: Stereo mini type
Input Level
AUDIO INPUT : -10 dBu (Maximum : +8 dBu)
Input Impedance: 15 k ohms
Output Level
Audio Output: -10 dBu (Maximum : +8 dBu)
Phones: 72 mW + 72 mW (32 ohms)
Output Impedance: 1 k ohm - Phones : 10 ohms

Formats
HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch
Processing
Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator

External Connectors
Remote : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB Memory: USB A type x 1 (USB Memory)
Preset Memory: 16

Power Supply
AC Adaptor: 220 - 240 Vac
Current Draw: 2.1 A
Power Consumption: 25 W
Operation Temperature: +0 to +40 degrees Celsius - +32 to +104 degrees Fahrenheit

General
Dimensions: 328 (W) x 117 (D) x 57 (H) mm
Weight: 1.2 kg
