CONVBDCSDIHDMI03GPS

Name: CONVBDCSDIHDMI03GPS
Brand: Blackmagic
SKU: CONVBDCSDIHDMI03GPS
Price: 108.06 EUR
Availability: InStock

Blackmagic

EAN: 9338716006995

Micro Converter BiDirectional SDI/HDMI 3G - With power supply

go to the technical sheet

€ 108,06

€ 100,52 VAT excl.

Available 5 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

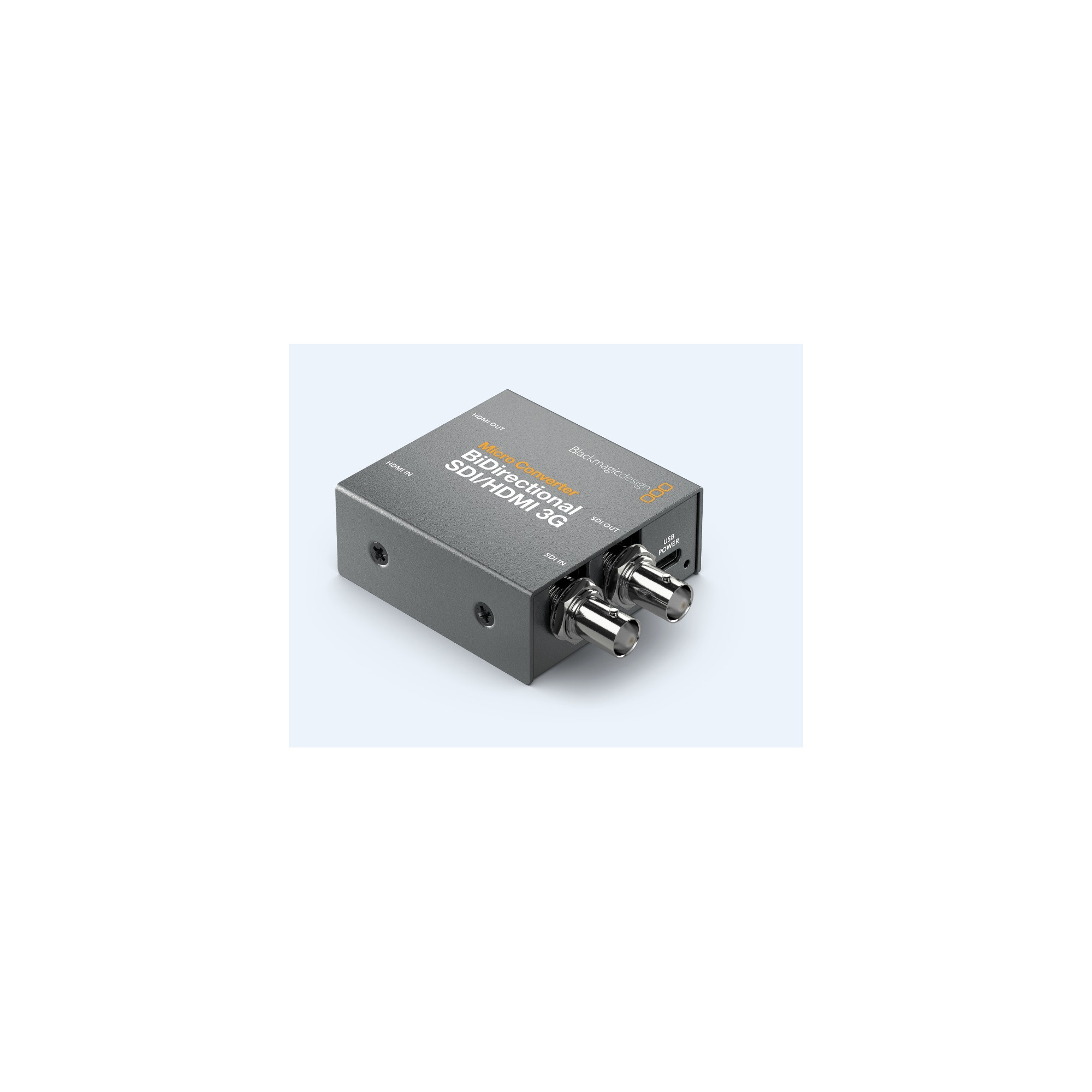

Micro Converter BiDirectional SDI/HDMI 3G - With power supply.

The world's smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats. It supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers.
It also converts camera control signals from Atem Mini to Ursa Broadcast (and other BMD cameras with SDI control) and from Atem Television or Production to Pocket 4K or 6K.

Power Supply & Chargers

Blackmagic

PSUPPLY-5V10WUSBC

€ 45,17 VAT included

Available in 11 days

Micro Converter Specs

Input
=================
Video Input Connectors: 1 x BNC (3G-SDI / HD-SDI / SD-SDI) + 1 x HDMI (HDMI 2.0)
Input Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 59.94 fps
PAL: 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps
Audio Input Connectors: None
Embedded Audio Input : HDMI

Output
=================
Video Output Connectors : 1 x BNC (3G-SDI / HD-SDI / SD-SDI) + 1 x HDMI (HDMI 2.0)
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF: 25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF: 25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 29.97 fps
PAL (768 x 576): 25 fps
Audio Output Connectors : None
Embedded Audio Output : HDMI
Video Standard Compliance: SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support: Version 2.2

Connectivity
=================
Other I/O 1 x USB Type-C Input
Expansion Slots : None
Hardware
Tally Light : Yes
OS Compatibility: macOS 10.14.15 or Later - Windows 10

Power
=================
Power Connector 1 x USB Type-C (4.4 to 5.2 VDC) Input
Power Consumption 2.5 W

General
=================
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity : 0 to 90%
Dimensions : 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight : 6.13 oz / 174 g
