DT-E17L4G

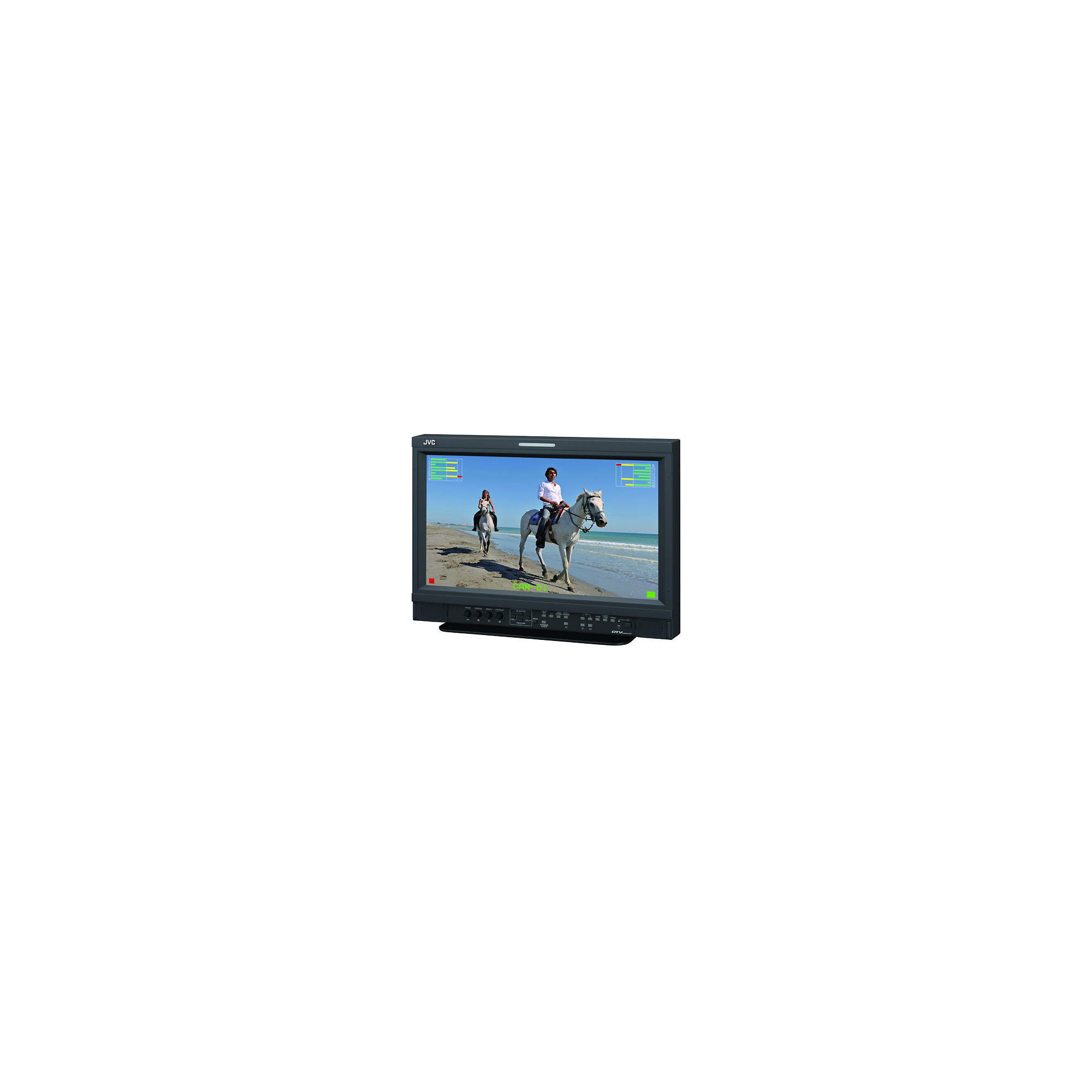

The JVC DT-E17L4G 17" Multi-Format HD LCD Monitor is JVC''s cost-effective alternative to its industry-standard DT-V high-end studio monitors. It consumes 20-30% less power than conventional CCFL monitors and thereby allows 12VDC support for field use. It features a 1920 x 1080 resolution, 600:1 contrast, and 10-bit color. Inputs and outputs include HD/SD-SDI and HDMI. The panel is glossy and glare-reflective, and this monitor is therefore not ideal for highly lit environments but is rather best suited for darker editing and studio rooms.

The monitor supports 16-channel embedded audio and features two built-in speakers and a level indicator. Other features include area/center/safety markers, LTC and VITC time code support, and an In-Monitor Display function (IMD) based on TSL''s UMD protocol version 4. A 3-way stand is included for versatile installation.

Cost-Effective Alternative to DT-V Monitors

Consumes 20-30% less power than CCFLs
1920 x 1080 resolution and a 600:1 contrast ratio
16.7 million display colors and 10-bit color processing
LED backlight provides improved contrast and black level
Comprehensive set of connectors include HD/SD-SDI / HDMI

Audio, Performance and Functionality

Low latency of less than one frame in field mode
Built-in speakers / 16-ch embedded audio with level meter
Area, center, safety markers and LTC / VITC time code support
In-Monitor Display function shows status with text and color tally lamps
Features panel buttons and controls. Functions can be assigned to F1 / F2
An AC adapter as well as a DC power input connector comes included with the monitor




Display 17" LCD display (43.2 cm)
Aspect Ratio 16:9
Resolution 1920 x 1080 total pixels
Inputs (2) HD/SD-SDI on BNC
(1) HDMI
(1) Composite on BNC
(1) Component analog RGB on Mini D-Sub 15-pin
(1) L/R 3.5mm RCA audio
(1) RS-485 on 8-pin RJ-45
(1) RS-232C on 9-pin D-sub
Make/Trigger: 8-pin RJ-45
Outputs (1) HD/SD-SDI on BNC (switched / reclocked out)
(1) Composite loop-through on BNC
(1) L/R 3.5mm RCA audio
(1) Monitor audio out
(1) RS-485 on 8-pin RJ-45
Panel Surface Gloss panel
Viewing Angle 160° x 140°
Contrast Ratio 600:1
Display Colors 16.7M
Backlight Mercury-free LED backlight
Power Requirement AC 120, 220-240V 50/60Hz
DC 12-17V
Speaker Output 1W x 2
VESA Standard 3.93 x 3.93" / M4 x4 (10 x 10 cm)
Dimensions 16.9 x 12.3 x 7.1" (43 x 31.4 x 18.1 cm)
Weight 15.6 lbs (7.1 kg)
12.3 lbs without stand (5.6 kg)
