Blackmagic

9338716007435
Camera Broadcast 6K 12G-SDI B4 mount ND integrated 13 stop LUT 3D and RAW
go to the technical sheet
  • -2.5%
Save 2.5%
€ 4.564,31

€ 4.245,87 VAT excl.

€ 4.681,35
Available 1 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

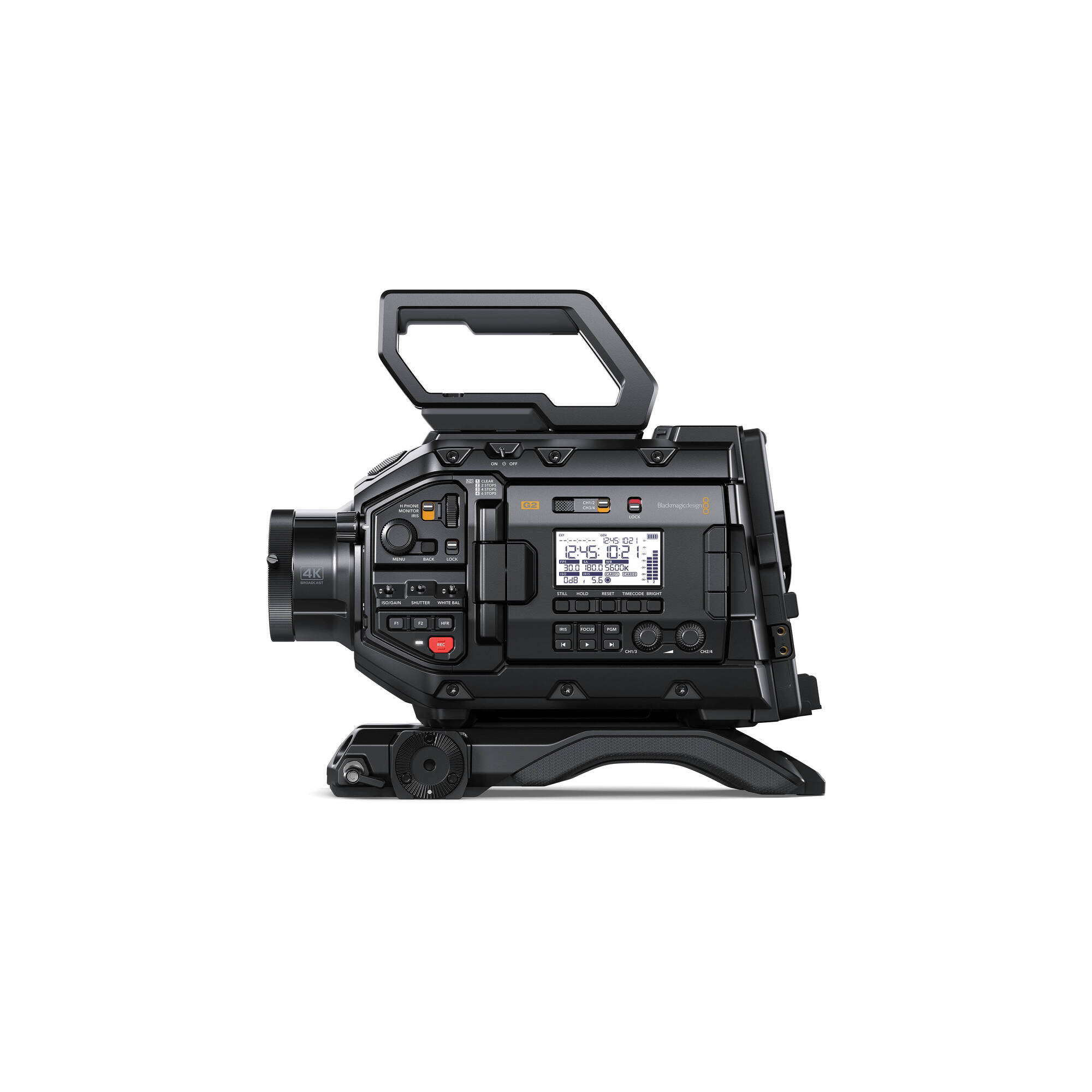

The new Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera! It's a perfect solution for broadcasters because it uses the lenses and batteries you already own! You can record to common SD cards, UHS-II cards, CFast 2.0 cards or external USB disks, using common file formats such as H.265, ProRes and Blackmagic RAW. This means it's compatible with all video software and broadcast media management systems. You can even change the lens mount! No other broadcast camera is so flexible!

Three Cameras in One
Broadcast Production Camera
The perfect solution for broadcasters, URSA Broadcast G2 includes ENG camera controls positioned around the camera so you can locate them by feel. It also features a low light sensor so you get amazing images using natural light. That's the perfect combination for broadcast news and programming.
Live
Studio Camera
URSA Broadcast includes an advanced YRGB color corrector built in and full remote camera control. You can use B4 ENG lenses, large studio box lenses, or even change the lens mount and use any lens! Plus the optional Blackmagic focus and zoom demands let you control the lens from the tripod handles.
Digital
Cinema Camera
URSA Broadcast G2 includes an advanced 6K digital film sensor, and you can change the lens mount! Use a PL mount for digital film lenses or EF for photo lenses. Plus the high dynamic range, great low light performance and Blackmagic RAW means you get a true "Hollywood" quality digital film camera.

Get Digital Film Quality for Broadcast
The large 6K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. This means broadcasters can now use digital cinema quality in broadcast! The 6K sensor features a resolution of 6144 x 3456 so it's flexible enough for broadcast and digital film work. When using B4 lenses, you get a 4K window of the sensor for Ultra HD broadcast use. Then if you change to a PL or EF lens mount, you can use the full 6K resolution of the sensor for digital film! With 13 stops of dynamic range, you get darker blacks and brighter whites, so it's perfect for color correction. Using digital film in broadcast is a revolution in image quality!

Exceptional Low Light Performance
The new URSA Broadcast features incredible low light performance so you can shoot using ambient light or even under moonlight! In advanced cameras, ISO is a measurement of the image sensor's sensitivity to light. The Blackmagic URSA Broadcast G2 features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images, while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set via a camera switch, the LCD menu or remotely using the SDI remote camera control protocol.


Compatible with B4 Broadcast Lenses
Built In Optical ND Filters
Use Common Media and File Formats
Dual Media Slots for Non-Stop Recording
USB-C for Recording Direct to External Media Disks
Strong and Lightweight Magnesium Design
Built in LCD with Touch Controls
External Status Display
Program Video Monitoring
Load Custom 3D LUTs to Recreate Film Looks
Standard Television Industry Connections
Supports All Broadcast Frame Rates
Professional Audio Connections and Built In Microphones
Get Studio Camera Control via SDI
Work in Both HD or Ultra HD
Change to PL, EF and F Lens Mounts
Latest Generation 5 Color Science
Incredible Blackmagic RAW Quality
Powered by Blackmagic OS
Built in Timecode Generator
Focus and Zoom Demands
Add Viewfinders, SMPTE Fiber and Lens Mounts
Record to SSDs and U.2 Media
Localized in 13 Popular Languages
Wireless Bluetooth Camera Remote Control
Compatible with Industry Standard Batteries
Includes DaVinci Resolve Studio

What's Included
Blackmagic URSA Broadcast G2
4K B4 lens mount installed
B4 turret dust cap
EF Mount with dust cap
Vlock Battery Plate installed
URSA 12V 100W power supply
URSA Mini Shoulder Pad
URSA Mini top handle & rubber stopper
Viewfinder mounting plate
2 x 1/4 inch baseplate screws
2 x long 1/4 inch top handle screws
2 x short 1/4 inch top handle screws
8 x EF Mount screws
4 x Vlock plate spare screws
Welcome wallet with QR code for camera software download
DaVinci Resolve Studio wallet
DaVinci Resolve Studio activation key

Camera Specifications
6K CMOS Sensor, Dual Native ISO
2/3" B4 Lens Mount & Active EF Mount
6K Blackmagic RAW Recording
Records to ProRes, H.265/264
12G-SDI Input & Output, Genlock/Timecode
13 x Stops of Dynamic Range
2 x UHS-II SD, 2 x CFast 2.0 Slots
Built-In 2/4/6-Stop ND Filters
XLR Inputs, 3.5mm Audio Output
ProRes Recording up to 1080p120
Lens Mount : B4
Interchangeable Lens Mount : Yes
Lens Communication : Yes
Sensor Resolution: Not Specified by Manufacturer
Sensor Type : 23.1 x 12.99 mm (Medium Format) CMOS
Sensor Windowing : 4K (3840 x 2160) in 16:9 When Recording in Raw
Built-In ND Filter : Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
ISO Sensitivity : 400 to 3200 (Native) - 100 to 25,600 (Expanded)
Shutter Type : Rolling Shutter
Gain : -6 to 18 dB
Advertised Dynamic Range : 13 Stops

Internal Recording

Raw Recording Blackmagic RAW 10-Bit:
6144 x 3456 at 50 fps (65 to 483 MB/s)
6144 x 2560 at 60 fps (49 to 359 MB/s)
5376 x 3024 at 60 fps (51 to 371 MB/s)
3728 x 3104 at 60 fps (36 to 265 MB/s)
3840 x 2160 at 60 fps (32 to 190 MB/s)
1920 x 1080 at 150 fps (5.2 to 47 MB/s)
Recording Modes ProRes 422/ProRes 422HQ:
3840 x 2160p up to 60 fps (73.6 to 110 MB/s)
1920 x 1080p up to 60 fps (18.4 to 27.5 MB/s)
1920 x 1080p at 120 fps (18.4 to 27.5 MB/s)

H.265:
3840 x 2160p up to 60 fps (3.2 to 7.8 MB/s)

H.264:
1920 x 1080p up to 60 fps (1.8 to 7 MB/s)

Audio Recording ProRes: 2-Channel 24-Bit 48 kHz
Still Image Support: Not Specified by Manufacturer

External Recording
IP Streaming None

Interface
Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-II)
Dual Slot: CFast (CFast 2.0)
Video Connectors 1 x BNC (12G-SDI) Output
1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Monitor Output
Audio Connectors 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Input/Output on Camera Body
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input on Camera Body
Built-In Microphone Type Stereo
Other I/O 1 x USB Type-C USB 3.1 Gen 2 Video Output
1 x USB Type-C Data Input
1 x 2.5 mm LANC Control Output
1 x BNC Reference, Sync, Timecode Data Input
1 x 12-Pin Hirose Camera Interface Control Output
Wireless Interfaces : Bluetooth Control

Monitor
Size 4.0"
Display Type Articulating Touchscreen LCD
Secondary Display Side: LCD Status Display
EVF
EVF Optional, Not Included
Power
Battery Type V-Mount
Power Connectors 1 x 4-Pin XLR Input
1 x 4-Pin XLR (12 to 20 VDC) Output
1 x 12-Pin Molex Input
Power Consumption 100 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
Physical
Tripod Mounting Thread 3 x 1/4"-20 Female (Bottom)
Material of Construction: Magnesium Alloy
Accessory Mount: 1 x ARRI/Hirth Rosette
Dimensions: 10.95 x 9.93 x 5.9" / 27.81 x 25.22 x 15 cm
Weight: 7.83 lb / 3.55 kg

Blackmagic Design URSA Broadcast G2 Camera
B4 Turret Dust Cap
EF Mount
EF Mount Dust Cap
8 x EF Mount Screw
12V/100W Power Supply
Shoulder Pad
Top Handle
V-Mount Battery Plate
4 x V-Mount Plate Spare Screw
Viewfinder Mounting Plate
2 x 1/4"-20 Baseplate Screw
2 x Long 1/4"-20 Top Handle Screw
2 x Short 1/4"-20 Top Handle Screw
DaVinci Resolve Studio Download QR Code
Camera Software Download QR Code
Limited 1-Year Manufacturer Warranty
