Fujinon

8.5-170mm for 2/3" Format 20x Zoom Ratio and 2x Extender
go to the technical sheet
  • -2.5%
Save 2.5%
€ 4.087,76

€ 3.802,57 VAT excl.

€ 4.192,58
Available 2 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

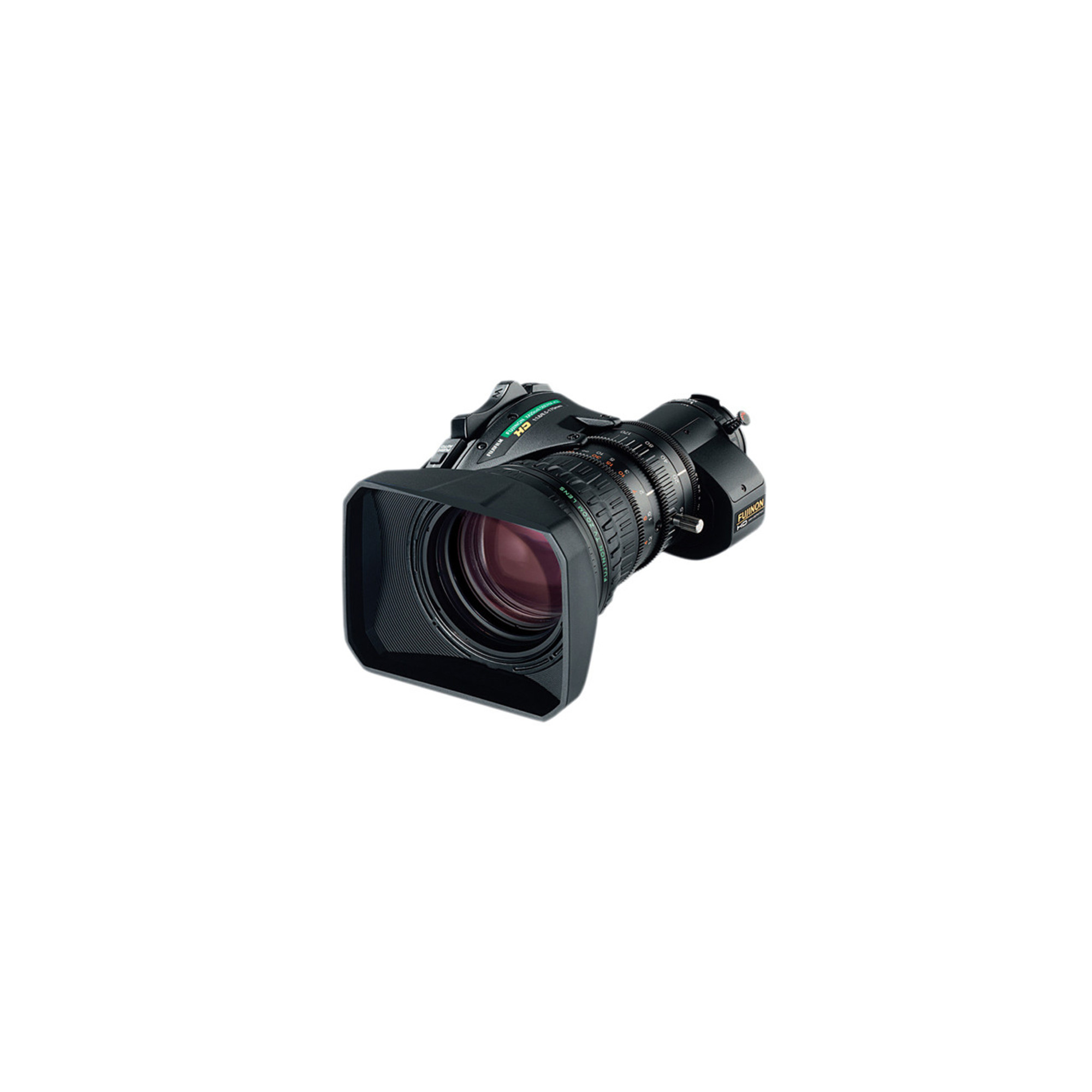

Fujinon XA20sx8.5BERM-K3 ENG Lens 8.5-170mm for 2/3" Format 20x Zoom Ratio and 2x Extender Fast f/1.8 Max Aperture at 8.5-113mm Manual Focus and Servo Zoom Innerfocus and QuickZoom



The Fujinon XA20sx8.5BERM-K3 ENG Lens is a 8.5-170mm lens, designed to provide 2/3" format cameras with a wide to super telephoto angle-of-view. The lens has a 20x zoom ratio, and a 2x extender effectively doubles the focal range. An ergonomic, digital servo zoom control is also included.

Internal focusing minimizes the effects of lens breathing, which ensures a more consistent focal length when adjusting focus. Fujinon's QuickZoom technology improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length.

8.5-170mm zoom lens with 20x zoom and 2x extender for 2/3" format

Fast f/1.8 Max Aperture at 8.5-113mm and f/2.7 at 175mm

Manual focus and digital servo zoom

Innerfocus and QuickZoom technology

Format 2/3"
Focal Length 8.5 - 170 mm
Zoom Range 20x
Extender x2
Maximum Aperture 8.5 - 113 mm: f/1.8
170 mm: f/2.7
M.O.D. From Image Plane 3.61'' (1.1 m)
M.O.D. from Front of Lens 2.95'' (0.9 m)
Object Dimensions at M.O.D. (16:9) 8.5 mm: 35.82 x 20.12" (910 x 511 mm)
170 mm: 1.85 x 1.02" (47 x 26 mm)
Angular Field of View (16:9) 8.5 mm: 58°51'' x 35°11''
170 mm: 3°14'' x 1°49''
Filter Thread M82 x 0.75
Dimensions 3.34 x 7.08" (85 x 180.8 mm)
Note: without lens hood
Weight 3.48 lb (1.58 kg))
Note: without lens hood
Packaging Info
Package Weight 5.35 lb
Box Dimensions (LxWxH) 12.9 x 9.4 x 7.8"
