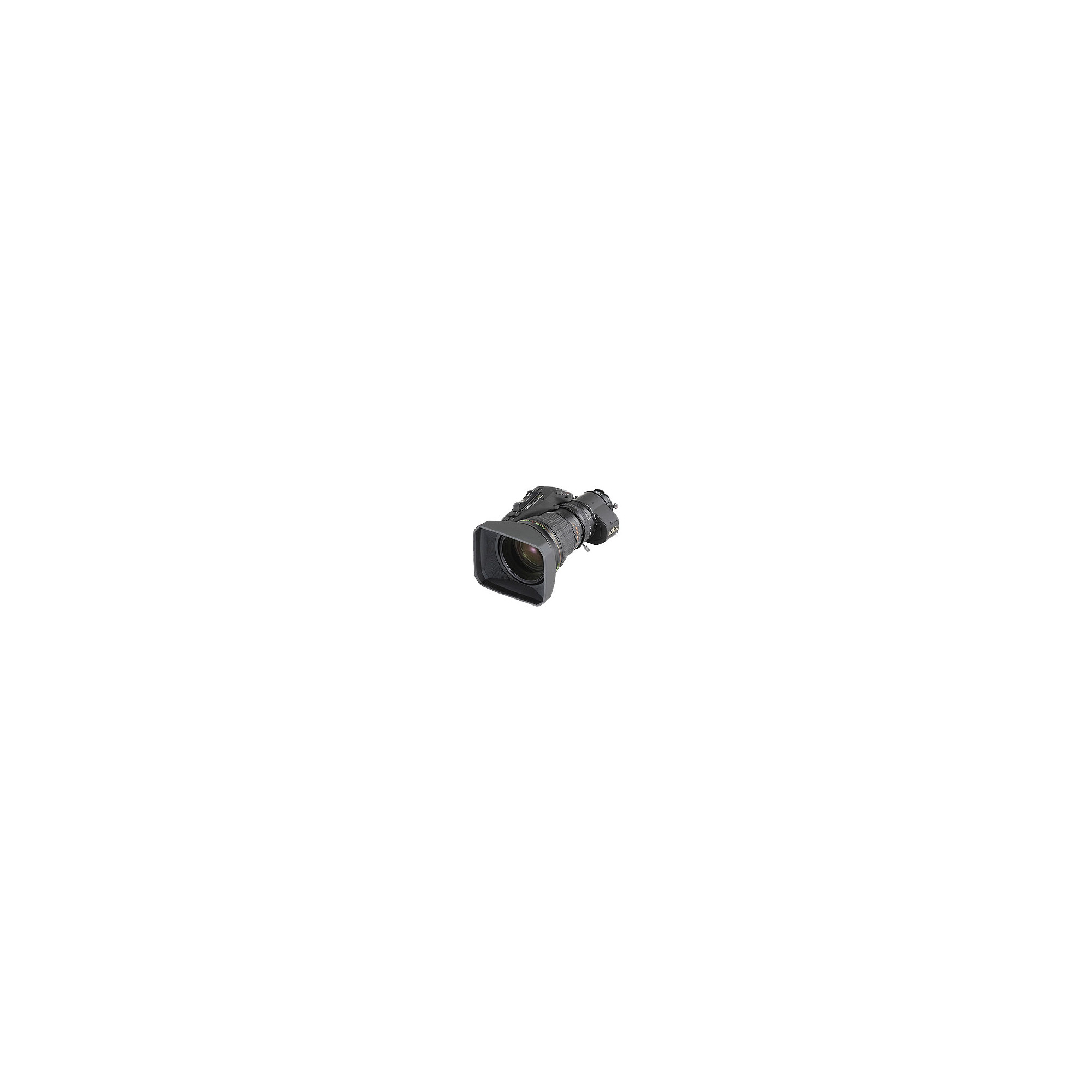

UA22x8BERD-S8

UA22x8BERD is a portable broadcast zoom lens with optical performance compatible with 2/3" format 4K cameras. Covering the focal length from 8mm in wide angle to 176mm in telephoto, the lightweight and compact lens excels in handling versatile situations including live sport coverage, indoor / outdoor program production and news reporting.
The "floating focus system", which controls multiple lens groups according to the shooting distance, delivers high resolution and high contrast images from close-up to infinity, enabling 4K video production with a high realistic sensation and premium picture quality.

Features
================
° Advanced optical performance that enables 4K compatibility under any shooting conditions
° Powerful 4K footage with 22x zoom from 8mm in wide angle
° New drive unit design for enhanced operability
° Compatibility with typical accessories used in TV broadcast operation.
° Equipped with 16bit encoder for virtual device

Focal length 1x 8.0-176mm
2x 16-352mm
Zoom ratio 22x
Extender 2x
Maximum relative aperture (F-no.) 1:1.8 (8-124mm) 1:2.55 (176mm)
Minimum object distance (M.O.D.) from front lens 0.85m
Object dimensions at M.O.D.
16 : 9 Aspect ratio
° 1x 8mm 905mm × 509mm
176mm 43mm × 24mm
° 2x 16mm 472mm × 265mm
352mm 22mm × 12mm
Angular field of view
16 : 9 Aspect ratio
° 1x 8mm 61° 52'' × 37° 14''
176mm 3° 7'' × 1° 45''
° 2x 16mm 33° 22'' × 19° 7''
352mm 1° 34'' × 0° 53''
Filter Thread M127 × 0.75 (Filter attaches to the lens hood)
Approx. Size (F × Length) F110 × 241.5mm
Approx. Mass (without Lens Hood) 2.55kg
