RCP-3100U

The RCP Remote control panel incorporates an LCD display with direct operation switches and a touch panel, which makes it a remote control panel that offers both ease of operation and multi-functionality that compares favorably with the MSU. The iris and master black adjustment block employs joystick type control. Up to four units can be mounted in a 19-inch EIA rack.

Programmable Menu
Joystick Tension Adjustment
LAN Capability
Direct Scene File Access

Remote Control Panel for HDC Series Cameras

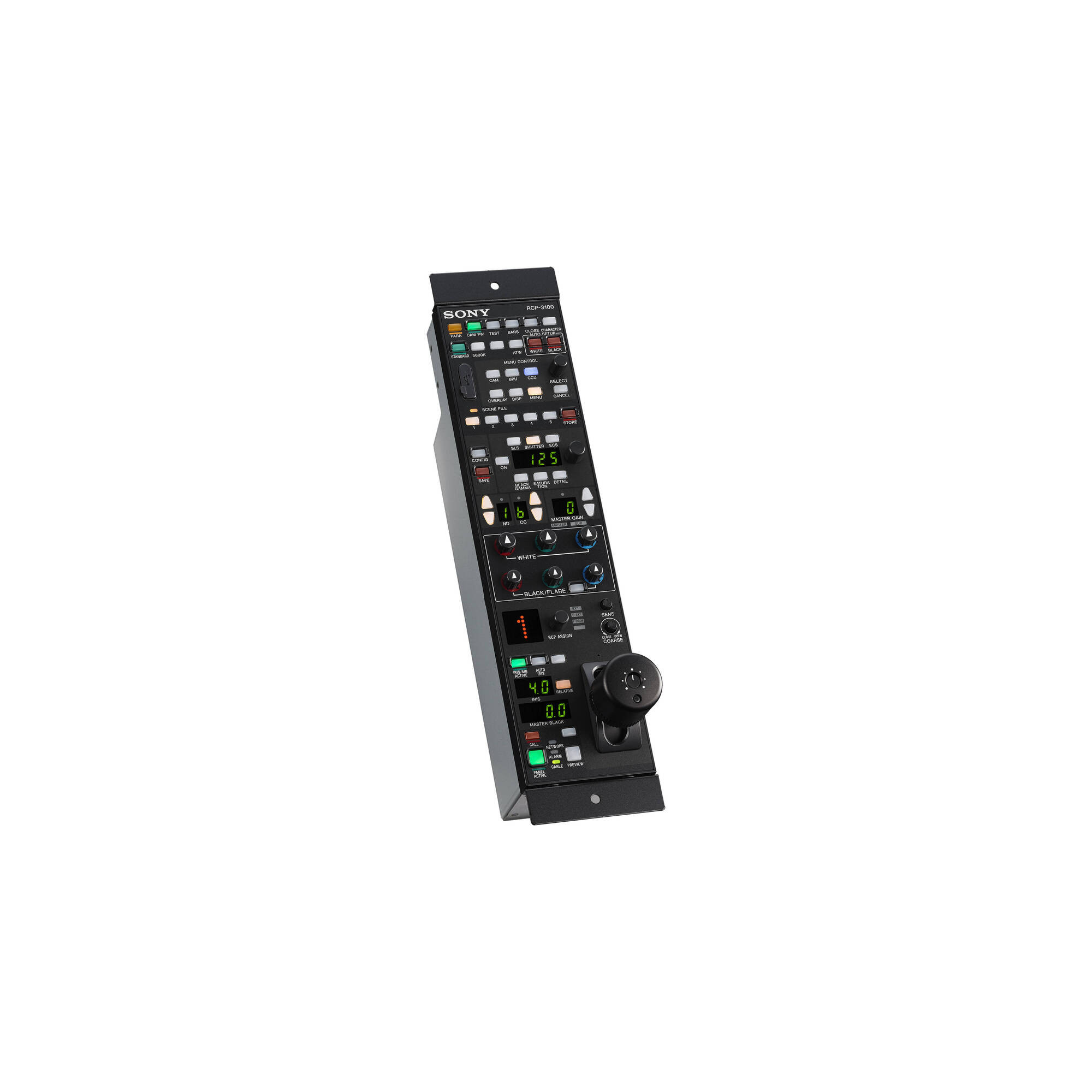

The RCP-3100 is a remote control panel for Sony system cameras that offers a variety of settings for multifunctional use in a slim 80 mm wide body, allowing up to 5 units to be mounted in a 19" EIA rack. The iris and master black adjustment block uses a joystick control.

Numerous direct access switches for various camera functions
This remote control panel is equipped with the control functions needed to perform various camera operations. The buttons, adjustment dials and other controls are positioned on the panel according to function and frequency of use. The buttons are protected by bezels to prevent accidental operation, which is essential for camera operation and setup.

Customizable switches and menus
Users can assign a variety of paint functions to assignable switches in addition to direct buttons for quick access to the camera/CCU/BPU.

LAN functionality
Connection is possible either by LAN cable or CCA-5 cable. Therefore, when setting up a multi-camera control system, the system can be built using either the CNU-700 or a LAN. The LAN connection can supply power via a PoE switch. Initial settings are available via the GUI of a PC and its Web server.

Slim body for greater rack mounting efficiency
The compact body is just 80 mm wide, making it suitable for mounting up to five units in a 19-inch EIA rack.

Building a variety of control systems
Users of HDC/HSC/HXC/BRC cameras can build a multi-camera control system using the CNU-700. In a system using the CNU-700, two CNUs can be assigned to control a camera system of up to 24 units. A system using a LAN can also be built by connecting to a LAN-compatible CCU.
