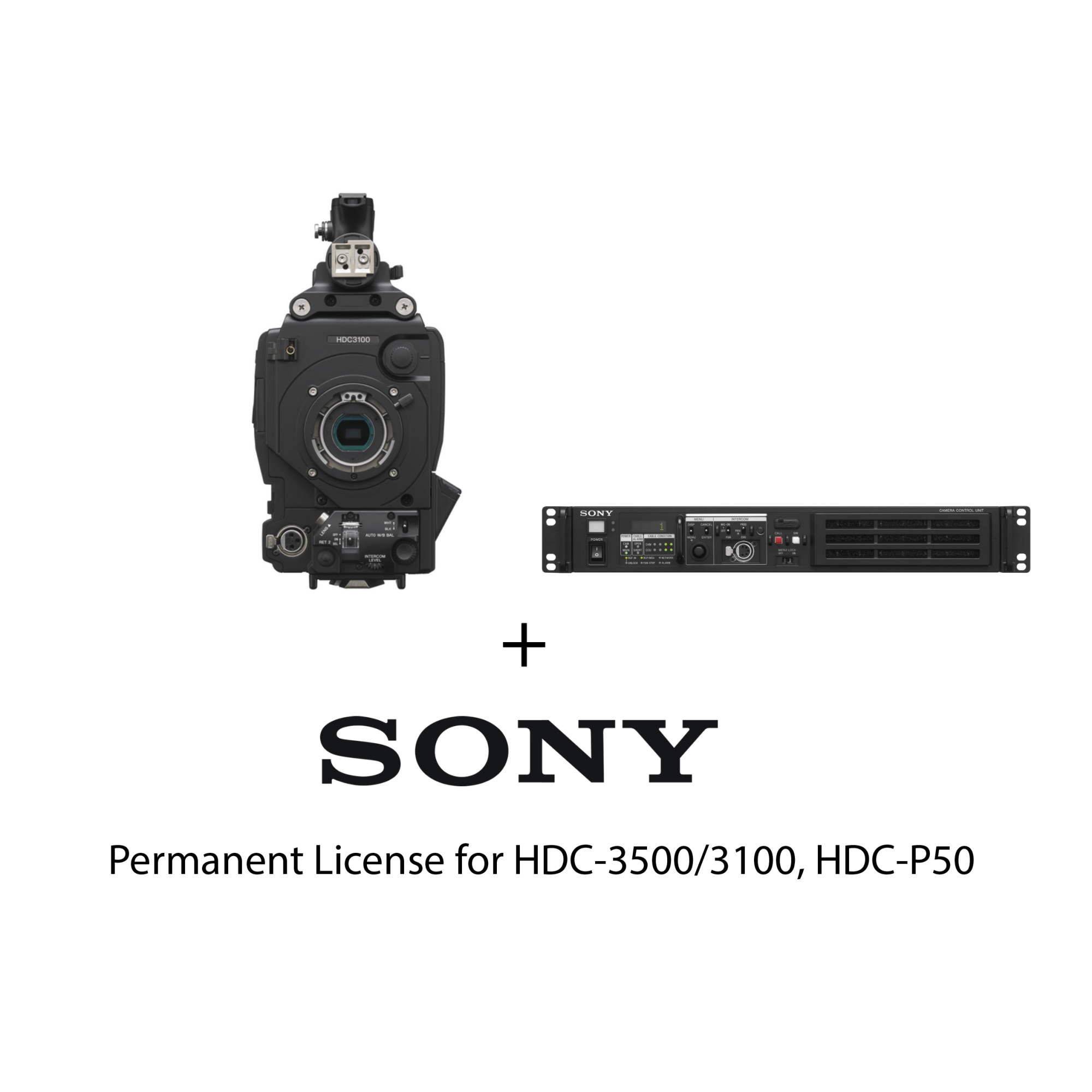

HDC3100PK 50P - Sony

General
Power: AC 240 V, 1.05 A (max), DC 240 V, 1.05 A (max)
Operating temperature: From .20°C to +45°C
Storage temperature: -20 °C to +60 °C
Weight: Approximately 4.8 kg

Sensor
Sensor: 2/3" single shutter CMOS
Method: 3 CMOS, RGB
Sensitivity:
- F12 with 1080/59.94i
- F13 with 1080/50i (at 2000 lx with 89.9% reflectance)
S/N ratio: -62 dB or higher
Horizontal resolution: 1000 TV lines (center of the screen), modulation 5% or more
Geometric distortion: Negligible (does not include optical distortion)

F1.4 prism system
Built-in filters: 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Input/Output Connectors: CCU
Electro-Optical connector: (LEMO 3K.93C connector) (x1)
Lens: 12 pins (x1)
Viewfinder: 20 pins (x1)
MIC 1 IN: 3-pin XLR, female (x1)
AUDIO IN CH1, CH2: 3-pin XLR, female (x1 each)
Audio switch for MIC: -60 dBu (can be selected up to -20 dBu from menu), balanced
AUDIO switch for LINE: 0 dBu, balanced
INTERCOM 1, INTERCOM 2: 5-pin XLR, female (x1)
Earphone: 4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard)
DC IN: 4-pin XLR (x1), DC 10.5V to 17V
DC Output: 4 pin (x1), DC 10.5 V to 17 V, max 0.5 A*¹, 2 pin (x1), DC 10.5 V to 17 V, max 2.5 A*¹
SDI 1: BNC (x1)
SDI 2: No
SDI MONI: BNC (x1)
Test Output: BNC (x1)
PROMPTER/GENLOCK: BNC (x1)
PROMPTER: 1 Vp-p, 75 O
GENLOCK HD: SMPTE ST274, three-level sync, 0.6 Vp-p, 75 O, SD: Blackburst (NTSC: 0.286 Vp-p, 75 O/PAL : 0.3 Vp-p, 75 O)
PROMPTER2: No
RET CTRL: 6 pins (x1)
Remote: 8 pins (x1)
TRACKER: 12 pins (x1)
CRANE: No

USB: 2.0 Type A 4-pin (x1) (for connecting USB drives)
NETWORK TRUNK: No
