ATEM Streaming Bridge

Name: ATEM Streaming Bridge
Brand: Blackmagic
SKU: ATEM Streaming Bridge
Price: 310.74 EUR
Availability: OutOfStock

Blackmagic

EAN: 9338716006841

Decoder/Vdeo converter of the H.264 stream from Atem Mini Pro;SDI-HDMI outputs

go to the technical sheet

€ 310,74

€ 289,06 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

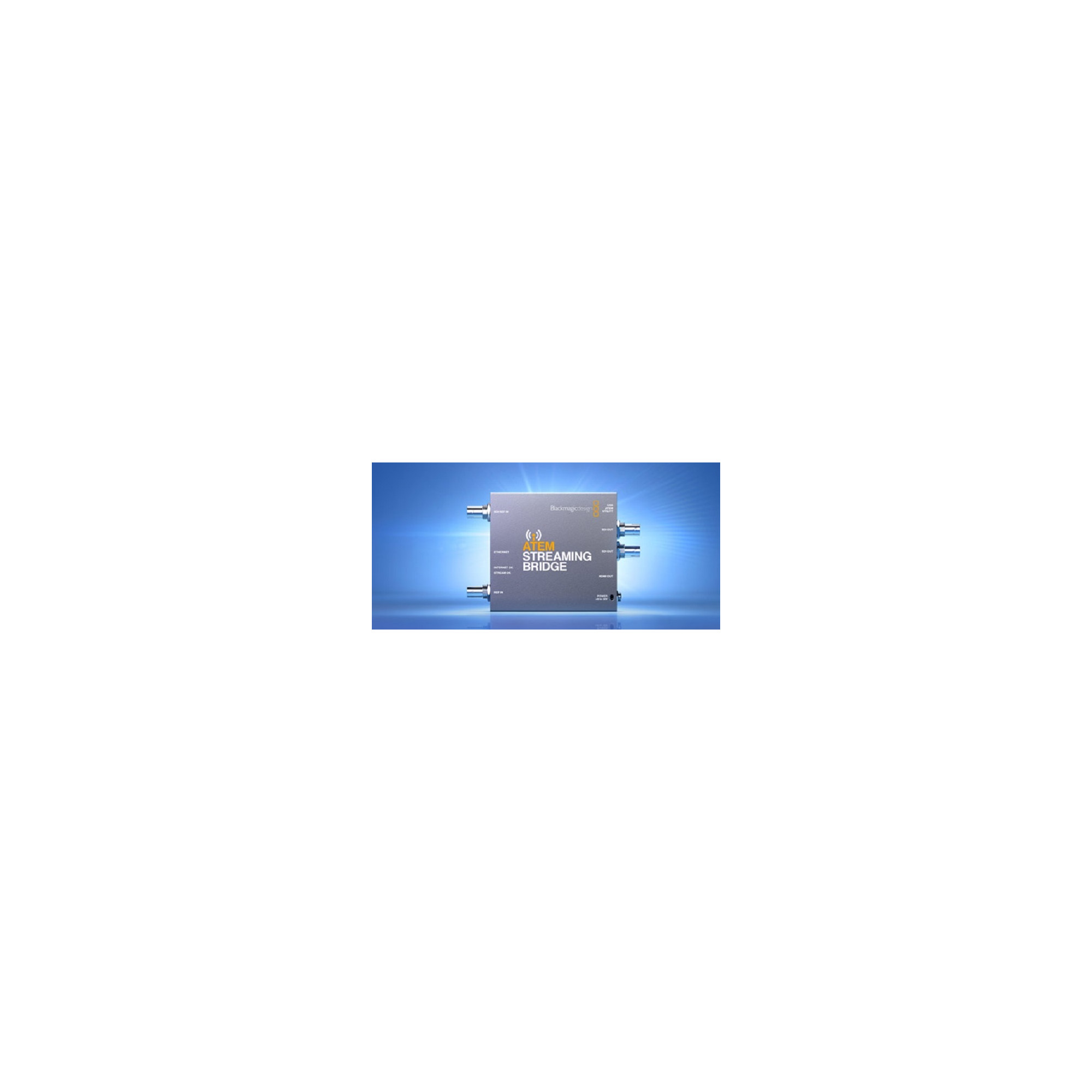

The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That's possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way use ATEM Mini Pro as a remote broadcast studio!

Converters Distributors - Extender Live Video Equipment Video Equipments

Blackmagic

€ 118,80 VAT included

Available in 11 days

Connections
SDI Reference Inputs:1 x 3G-SDI
SDI video outputs: 2 x 3G-SDI
SDI audio outputs: 2 channels integrated in HD-SDI
HDMI Video Output: HDMI Type A
HDMI Audio Outputs: 2 channels built-in HDMI

SDI transmission: 1.5G, 3G
Reference Input: Blackburst and Tri-Sync
Ethernet: Ethernet with support for BaseT 10/100/1000
Updates and Configuration: 1 x USB-C for configuration and software updates

Standard
SDI Video Standards:1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
HDMI Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Standard Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, and SMPTE 425 Level A and B
SDI video sampling: 4:2:2
SDI audio sampling: Television standard sampling rate of 48kHz and 24 bit
SDI color accuracy: 10 bit
SDI color space: YUV

Streaming
Streaming Input - Supports ethernet streaming video stream from ATEM Mini Pro and ATEM SDI models
Protocols:
° RTMP (Web Presenter, ATEM Mini, ATEM SDI)
° SRT (Web Presenter)

Software
Internal software update via included application

Power requirements
Power supply: universal +12V and adapters for international sockets
Power consumption: Max 6W
Operating voltage: 6-30V DC
