HDC-3100

Name: HDC-3100
Brand: Sony
SKU: HDC-3100
Price: 27036.78 EUR
Availability: OutOfStock

Sony

EAN: 5013493392342

Three 2/3-inch CMOS sensors portable system camera for fiber operation

go to the technical sheet

-2.5%

Save 2.5%

€ 27.036,78

€ 25.150,50 VAT excl.

€ 27.730,03

Available in 14 days

Datasheet: Download

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

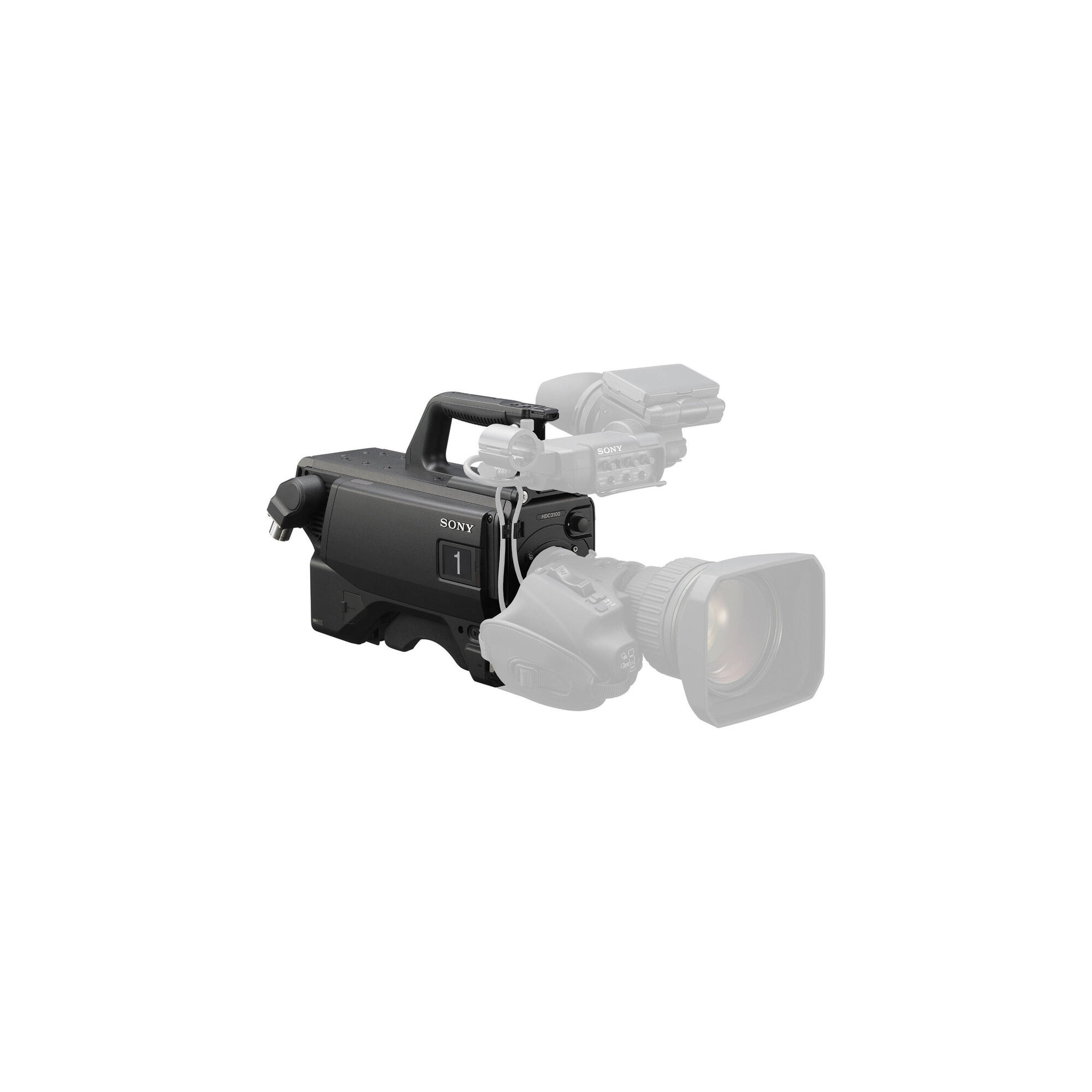

Three 2/3-inch CMOS sensors portable system camera for fiber operation

Raising the standard in creative flexibility
The HDC-3100 system camera brings new levels of creative flexibility and portability to live production environments. Enjoy premium HD pictures plus the convenience of optical fibre transmission.

Next generation imaging
Capture premium pictures with the world's first 2/3-inch HD CMOS sensor with global shutter technology that eliminates the ‘jello effect' and banding noise. This allows the HDC-3100 to capture pristine images with low noise and excellent sensitivity (F12 at 1080/59.94i or F13 at 1080/50i).

More format flexibility
The HDC-3100 can output 3G-SDI signals in a range of formats right up to 1080/50p, with 4K available via the CCU's 12G-SDI and Quad 3G-SDI interfaces. So you can benefit from maximum production convenience - and your viewers can enjoy premium picture quality.

Optical fibre transmission
The HDC-3100 supports optical fibre transmission as standard, with a SMPTE-standard interface for connection with associated HDCU-3100/HDCU-2000 series Camera Control Units.

Get the look
Broaden your creative possibilities and achieve exactly the look you want in any shooting situation. Low-key Saturation ensures rich, vibrant colours in low-light areas. Powerful gamma functions give absolute control over fine-tuning tonal values, contrast and detail.

Monitors Camcorders - Accessories Live Video Equipment Studio Cameras & Boxed Warranties & Services

-2.5%

Sony

HDVF-L10

-2.5%

€4.748,30 € 4.629,58 VAT included

Available in 14 days

-2.5%

Sony

HDVF-EL30U

-2.5%

€9.148,74 € 8.920,03 VAT included

Available in 14 days

-2.5%

Sony

HDVF-L750

-2.5%

€5.780,29 € 5.635,77 VAT included

Available in 14 days

Sony

HDVF-EL75U

€ 6.613,46 VAT included

Available in 14 days

-2.5%

Sony

HDVF-EL20U

-2.5%

€6.875,69 € 6.703,80 VAT included

Available in 14 days

-2.5%

Sony

SZC-4001

-2.5%

€21.792,94 € 21.248,11 VAT included

Available in 24 days

-2.5%

Sony

CAC-6

-2.5%

€1.889,91 € 1.842,67 VAT included

Available in 14 days

-2.5%

Sony

HDCU-3100

-2.5%

€15.054,82 € 14.678,45 VAT included

Available in 14 days

Sony

RCP-3500U

€ 5.235,42 VAT included

Available in 14 days

Sony

HDCU-3500U

€ 19.894,78 VAT included

Available in 14 days

Sony

HZC-PRV50

€ 5.794,25 VAT included

Available in 19 days

Download

Datasheet

Download (1.49MB)

General
Power requirements
AC 240 V, 1.05 A (max.), DC 240 V, 1.05 A (max.)
Operating temperature
.20°C to +45°C (.4°F to 113°F)
Storage temperature
.20°C to +60°C (.4°F to 140°F)
Mass
Approx. 4.8 kg (10 lb 9 oz)
Imager
Imager
2/3 inch type CMOS sensor with global shutter
Method
3-CMOS, RGB
Electrical characteristics
Sensitivity
F12 with 1080/59.94i
F13 with 1080/50i
(at 2,000 lx with 89.9% reflectance)
Signal-to-noise ratio
-62 dB or higher
Horizontal resolution
1,000 TV lines (at center of screen), 5% or higher modulation
Geometric distortion
Negligible (not including lens distortion)
Optical system specifications
Spectrum system
F1.4 prism
Built-in filters
1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Input/output connectors
CCU
Electro-optical connector (LEMO 3K.93C connector) (x1)
LENS
12-pin (x1)
VF
20-pin (x1)
MIC 1 IN
XLR 3-pin, female (x1)
AUDIO IN CH1, CH2
XLR 3-pin, female (x1 each)
AUDIO switch for MIC: -60 dBu (can be selected up to -20 dBu in the menu), balanced
AUDIO switch for LINE: 0 dBu, balanced
INTERCOM 1, INTERCOM 2
XLR 5-pin, female (x1)
EARPHONE
4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard)
DC IN
XLR 4-pin (x1), DC 10.5 to 17 V
DC OUT
4-pin (x1), DC 10.5 to 17 V, max. 0.5 A*¹, 2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A*¹
SDI 1
BNC (x1)
SDI 2
No
SDI MONI
BNC (x1)
TEST OUT
BNC (x1)
PROMPTER/GENLOCK
BNC (x1)
PROMPTER 1 Vp-p, 75 O
GENLOCK HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 O, SD: Black burst (NTSC: 0.286 Vp-p, 75 O/PAL: 0.3 Vp-p, 75 O)
PROMPTER2
No
RET CTRL
6-pin (x1)
REMOTE
8-pin (x1)
TRACKER
12-pin (x1)
CRANE
No
USB
USB 2.0 Type A 4-pin (x1) (for connecting USB drive)
NETWORK TRUNK
No
Supplied accessories
Before Using This Unit (1), Operating Instructions (CD-ROM) (1), Cable clamp belt (1 set), Screws (+B3×8) (2), Attached label (1), Camera number label (1)
