Manfrotto

8024221704150
504X Fluid Video Head, 2-Tube Aluminum 645 Fast Tripod - Payload 12 kg
go to the technical sheet
₦ 1,977,085.00

₦ 1,839,149.00 VAT excl.

Available 2 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

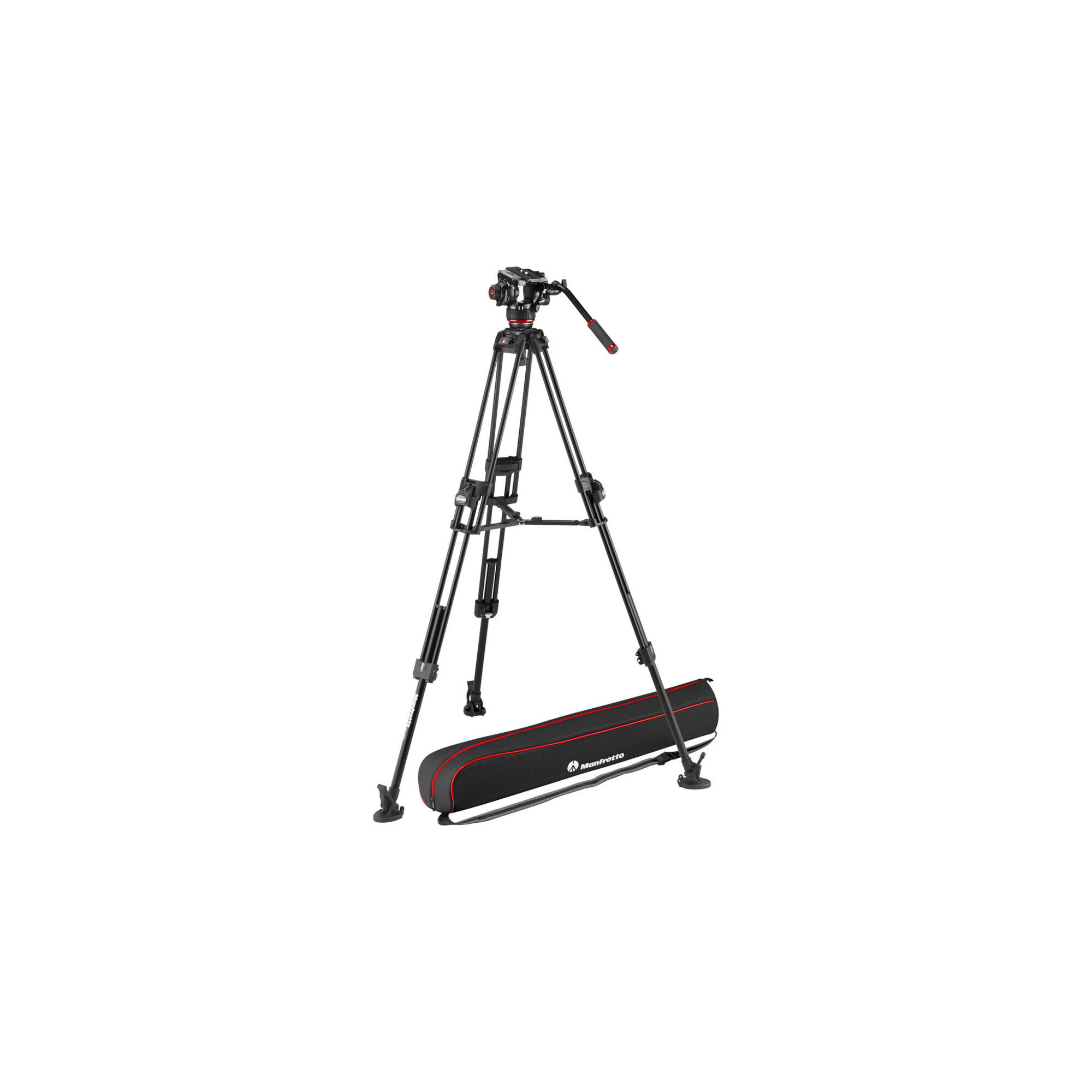

Manfrotto 504X Fluid Video Head, 2-Tube Aluminum 645 Fast Tripod - Payload 12 kg

- Fluid video head with 4 steps counterbalance system up to 6.5 kg
- Maximum versatility thanks to the flat base
- FAST lever lock and 3-angle selection mechanism
- 100 mm half-ball, compatible with 75 mm half-ball adapter
- Safety standards guaranteed by UNI/PdR 105:2021 compliance

This video system consists of the Manfrotto 504X fluid video head and the 645 Fast aluminum double-tube tripod.
The Manfrotto 504X fluid video head with flat base uses the new Manfrotto fluid technology that guarantees greater fluidity and unparalleled stability in both pan and tilt movements.
It is equipped with a 4 steps counterbalance system that supports loads of up to 6.5 kg with C.O.G. 55 mm.
The head features a brand new sleek aluminum design and has a maximum load capacity of 12 kg.

It is a compact and lightweight head with a flat base (75 mm diameter) that allows for various shooting options.
It also features two 3/8" Easy link attachments, equipped with an anti-rotation function that allows for the connection of external monitors or other accessories.
The Easy link is equipped with a cap to avoid cutting yourself during use.
The lateral locking mechanism of the sliding plate allows for easy, quick and secure camera attachment.

The 645 FTT aluminum twin-leg Fast tripod features double legs and Fast lever locking technology to provide stronger support than ever before.
Thanks to the synchronization of the upper and lower locking mechanisms, the entire leg can be locked in one movement, allowing videographers to get to work in record time.
The tripod features a 2-in-1 half ball: a standard 100mm bowl compatible with a 75mm adapter (included in the kit) to allow the use of a wide variety of video heads.
It also features a central spreader lock.
However, thanks to the three-angle selector, the use of the spreader is an optional preference.
It is compatible with the 2-in-1 central and ground telescopic spreader (sold as an optional) and offers a 3-angle selection mechanism for easy assembly.
It has rubber-covered spikes to ensure stable positioning and maximum adaptability to any type of terrain.
*A dedicated padded transport bag is included.

Counterbalance System: Variable Steps
Maximum load capacity: 12 kg
Counterbalanced weight: 2.2, 4.4, 6.5 kg
Maximum height: 173 cm
Min. height: 43.5 cm
Base diameter: 75 mm
Bubble level: 1
Centre of gravity: 55 cm
Closed length: 89.5 cm
Top attachment: 1/4" screw, 3/8" screw
Colour: Black
Base type: Flat
Powered by (batteries): Lithium
Easy Link: Yes (with anti-rotation)
Front tilt: -70° / +90°
Head type: Fluid video head
Leg type: Double tube
Leg angles: 20°, 50°, 70°
Lock type: Lever
Maximum working temperature: 60°C
Minimum working temperature: -30°C
Pan Bar included: Yes
Pan Drag: Adjustable from 0 to maximum level
Panoramic rotation: 360°
Tilt Drag: Adjustable from 0 to maximum level
Weight: 6.2 kg
