URSA Studio Viewfinder G2

Viewfinder Study for Blackmagic cameras of the URSA Broadcast G2 series.

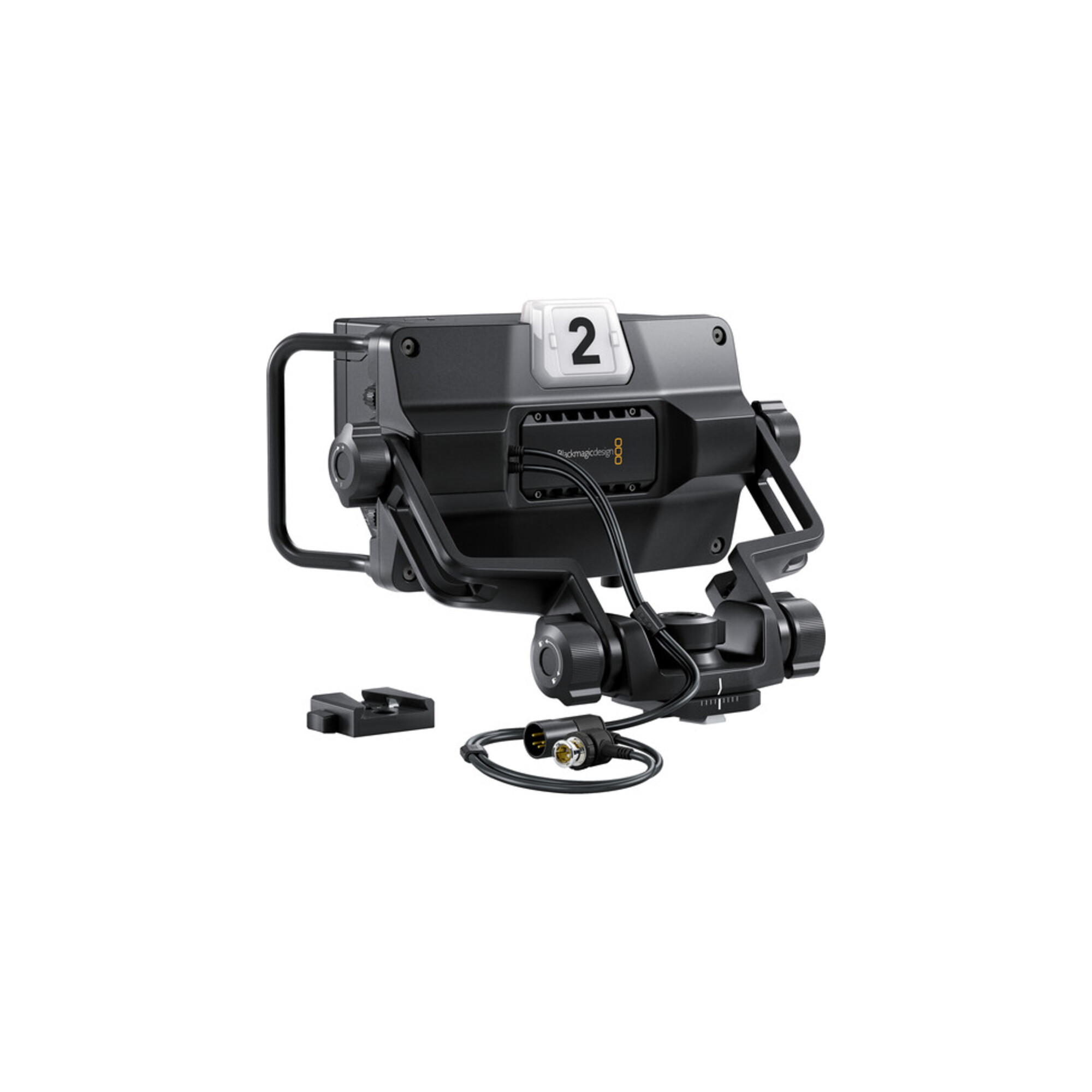

Add the Blackmagic Design 7" URSA Studio Viewfinder G2 to your URSA Studio G2 or URSA Mini camera to provide high-resolution monitoring. The 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD screen, and it features a detachable sun hood to prevent glare. Large side handles allow you to adjust the angle, and it mounts onto the top of your URSA Mini top handle using the bottom V-lock mount.

The viewfinder connects to the camera using a 3G-SDI BNC input, and it features 2000 cd/m² brightness, allowing you to view images clearly indoors or outdoors. Multiple dials and knobs allow you to navigate and adjust settings, and an LED light provides tally information. Its status display provides metadata from the camera, including frame guides, status, and peaking, and it also shows the fps, battery level, shutter, gain, and more. It is powered using the 4-pin XLR power input that can be used right from your URSA camera power output. It also features a USB Type-C input for setup and firmware updates.


Key Features
_________________________________
Controls
Customizable dial, knobs and function buttons for settings, shortcuts and menu navigation.

Handles
Integrated handles allow you to position the monitor independently of the camera.

Position adjustment options
Variable tension pivot points for the articulating arm and grip handles with forward, backward, up, down, pan and tilt adjustments.

Mounting options
Quick release V-lock mounting bracket for attaching the viewfinder to the top handle of URSA Mini.

Tally
Large LED tally light with customizable perspex camera numbers.

Metadata support
Detects camera information embedded in the SDI signal, including status information, frame guides, focus peaking, tally and more.

Display interface
Indicators on-screen and status information including camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level and more.
