AW-HE145WEJ

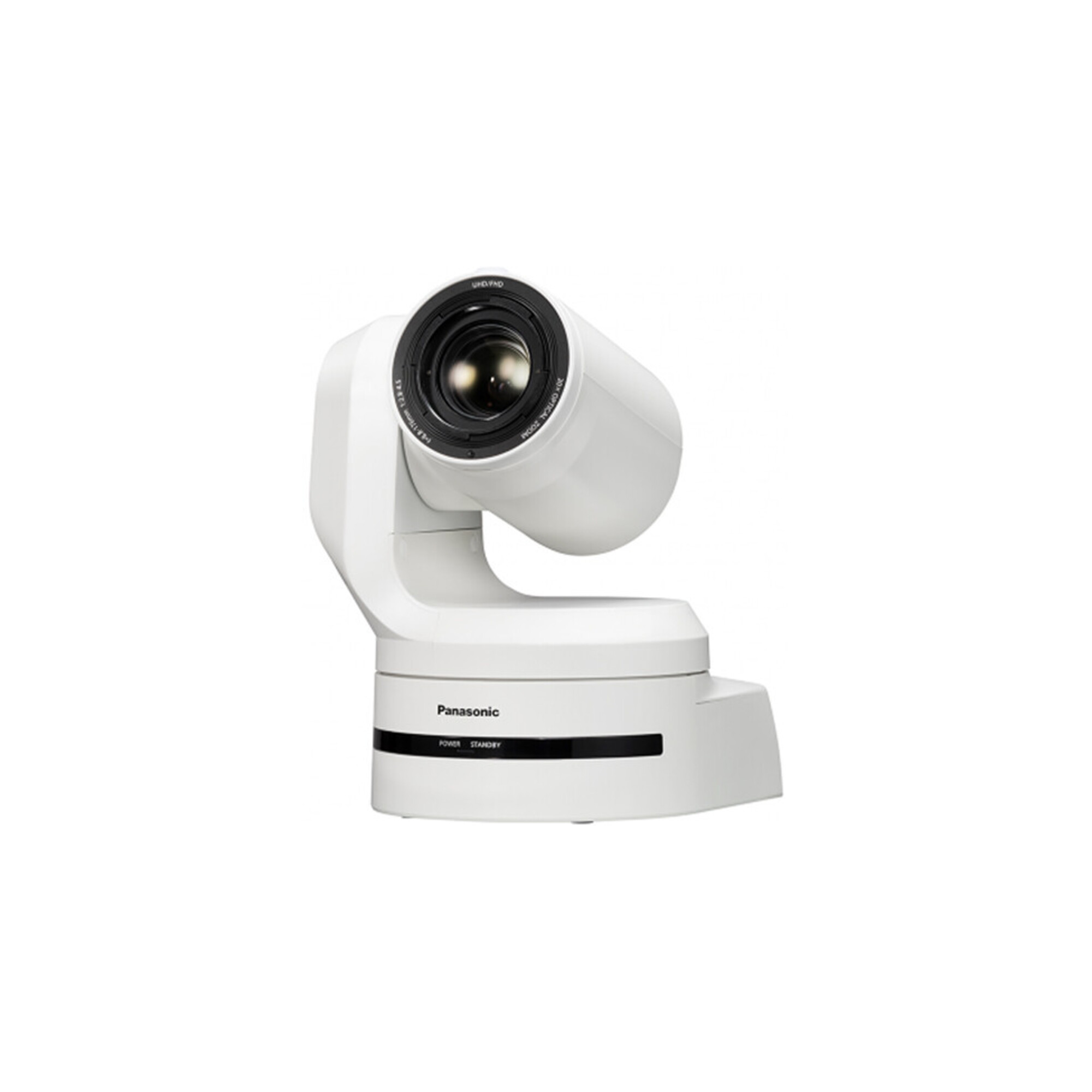

Panasonic AW-HE145 HDMI/3G-SDI/IP Integrated PTZ Camera with 20x Optical Zoom (White)

Capture high-quality 1080p video in your conference room, house of worship, or education locations with the white AW-HE145 HD Integrated PTZ Camera with 20x Optical Zoom from Panasonic.
The camera features a 1" MOS sensor, HDMI and 3G-SDI outputs, RJ45 LAN streaming support, mic/line audio input, and serial control.
When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser.
This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.

Equipped with a 8.8 to 176mm zoom lens (35mm equivalent zoom of 24.5 to 490mm), 20x optical zoom, 10x digital zoom, and 32x iZoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look.
It features Night Mode and features high-quality performance in low-light situations with little to no noise.
Other features include auto white balance, RS-422 serial control, genlock input, 175° panning range, -30 to 90° tilt range, H.265/H.264/MJPEG video compression, RTSP/RTMP streaming, AAC-LC audio compression, and a built-in 4-stage ND filter system.

The camera supports mic and line audio input, allowing you to capture and embed audio within the video signal.
It is also PoE+ compatible, allowing you to power the unit using only the single LAN cable rather than adding additional power adapter cables.
An optional Auto-Tracking software upgrade allows the camera to utilize facial recognition technology for face tracking and body detection so the camera will follow the subject around the room automatically.
If you are using an NDI-enabled network, you can also purchase an optional NDI|HX license to transmit high-quality, low-bandwidth NDI|HX video streams.


- 1" MOS sensor with 20x optical zoom, extendable to 10x with digital zoom
- Video output up to 1080p60 with 3G-SDI, HDMI, and IP outputs to get you a reliable live video production workflow
- High Dynamic Range function (HDR), suitable for backlit condition
- A single-cable solution for remote video and audio capture, optional NDI|HX support is available
- Supports PoE+ (Power-over-Ethernet+) for lower installation costs
- SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported
- Switching to Night Mode manually or automatically makes shooting possible even in low-light conditions in which shooting is normally difficult, such as when observing wildlife
- The AW-HE145 can be upgraded to an NDI|HX compatible model if purchasing a license from the Panasonic website to enable excellent broadcast streaming by encoding and transmitting high-quality video in real time
- Using an IP browser, the camera can be controlled from a remote location and IP video monitoring and remote camera control can be performed from a computer or mobile terminal such as a smartphone or tablet, enabling easy operations
- The camera also supports stereo analog audio input, embedding and encoding, and audio output to IP is also supported
- Compatible with a wide range of software, including the PTZ Control Center and Auto Tracking Software to simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management
- Compatible with Panasonic AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, and AK-HRP250GJ controllers
