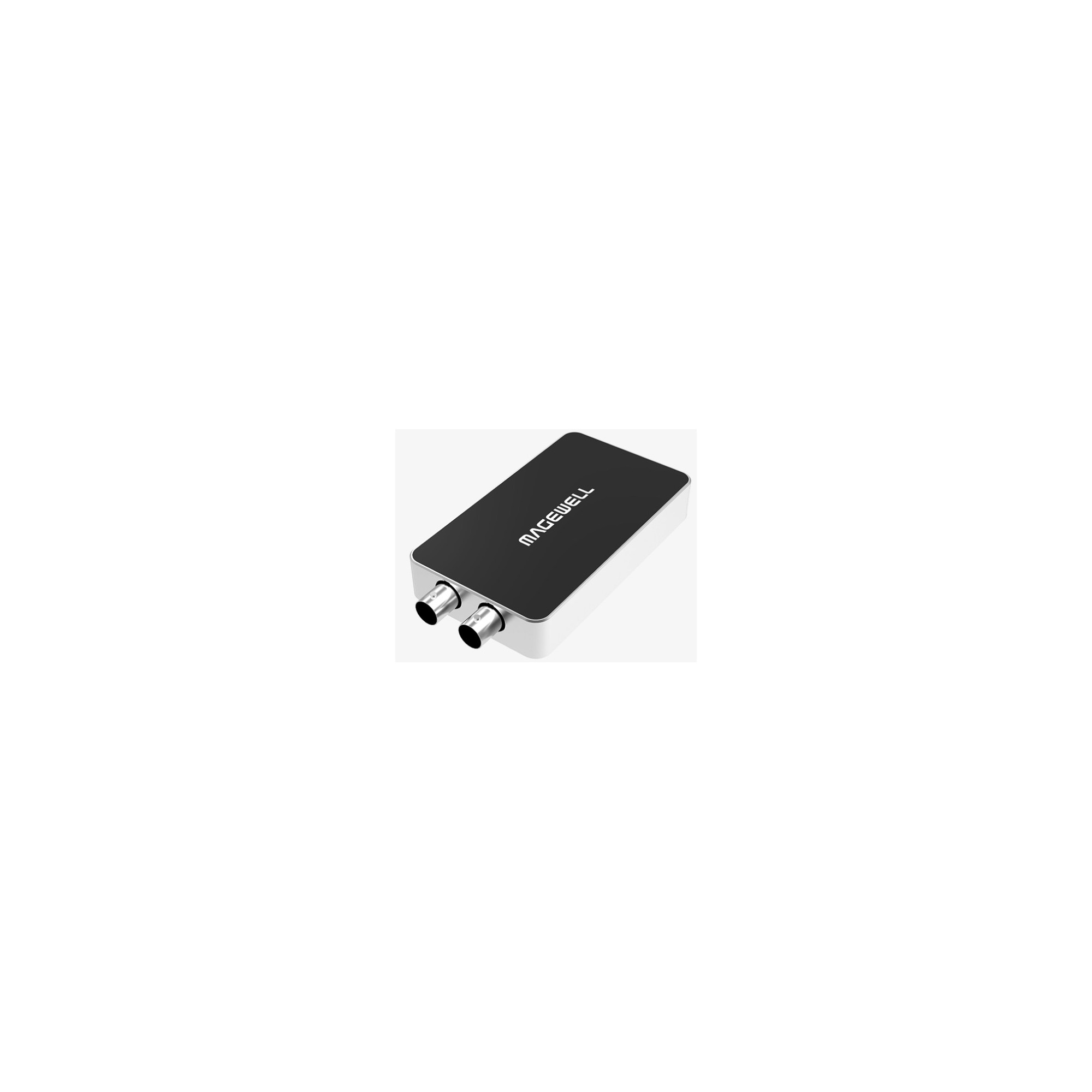

USB Capture SDI Plus
Magewell
Part number: 32050

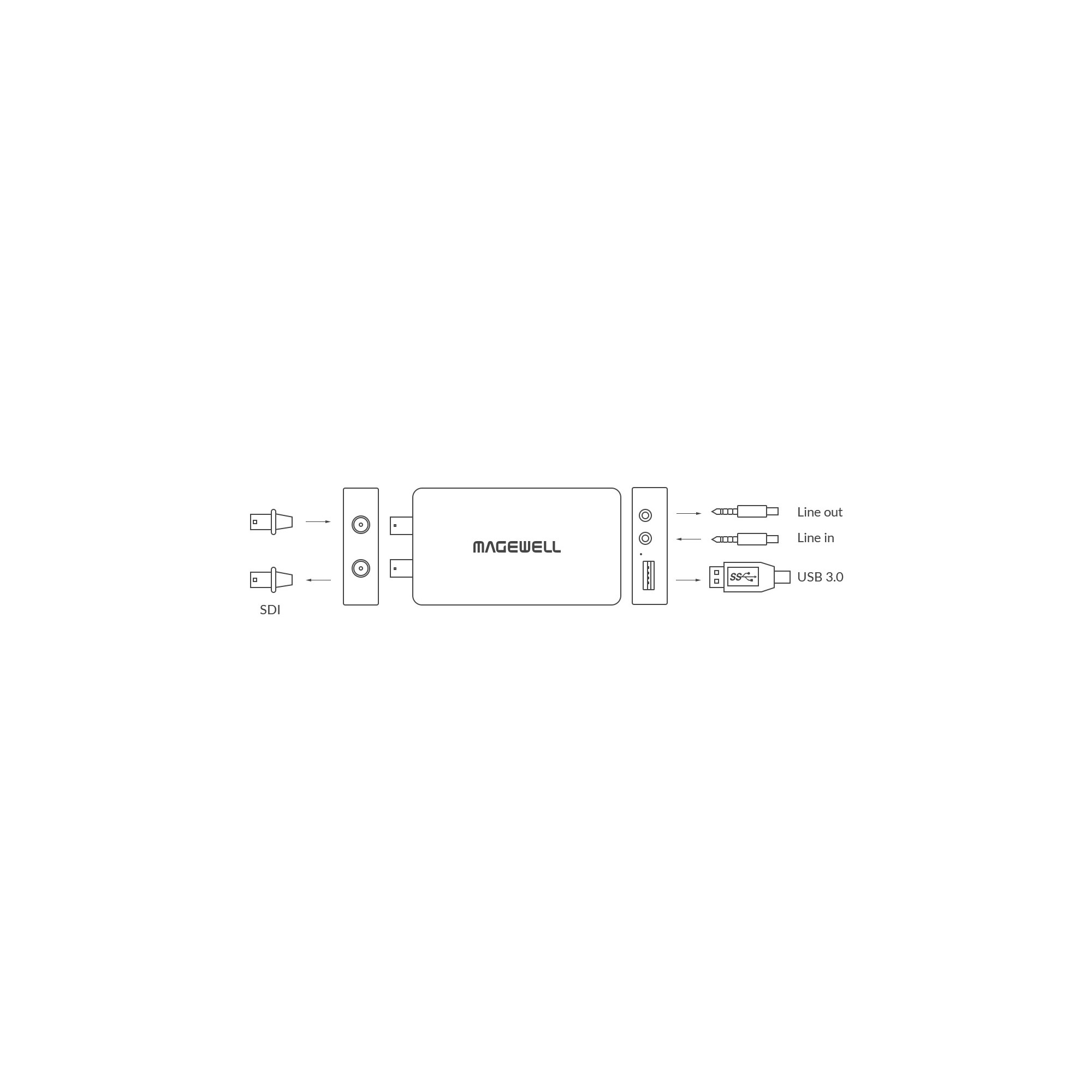

Capture SD/HD/3G/2K SDI + embedded audio
Loop-through SD/HD/3G/2K/6G SDI
Audio input via Line in
Extract SDI embedded audio and output via Line out
In the box:
Magewell USB Capture SDI Plus
USB 3.0 Cable
Supported Operating Systems Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 and x64)
OS X 10.9 - 10.11
macOS 10.12
Linux x (Ubuntu 12.04 - 16.10, CentOS 7)
Chrome OS
Input Resolution Up to 4096 x 2160, 4:4:4, 60 fps input signals
Supported Sampling Rate RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2

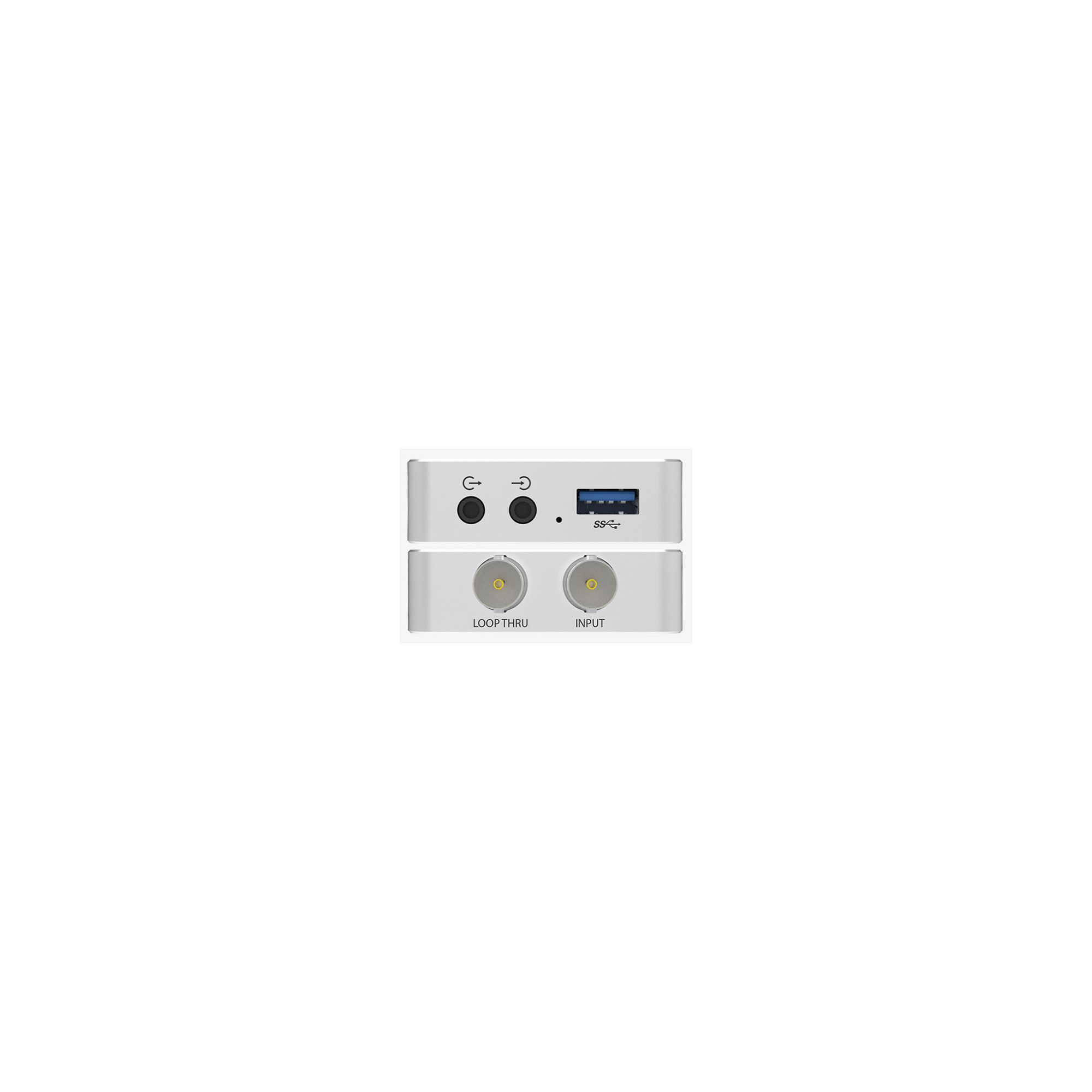

Input 1 x i SDI loop through
1 x 3.5 mm audio jack
Output 1 x SDI loop-output
1 x 3.5 mm audio jack
Host Interface 1 x USB 3.0 (compatible with USB 3.1 Gen 1, USB 2.0)
Linux:
V4L2
ALSA
OS X/macOS
QuickTime
AV Foundation
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software
Power Consumption 5 V Max Current: 1.4 A Max Power Consumption: 7 W
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 158°F (-20 to 70°C)
Relative Humidity 5 to 90% non-condensing
Dimensions 3.9 x 2.2 x 0.7" (9.8 x 5.7 x 1.7 cm)
Packaging Info
Package Weight 0.525 lb
Box Dimensions (LxWxH) 5.4 x 5.25 x 1"
