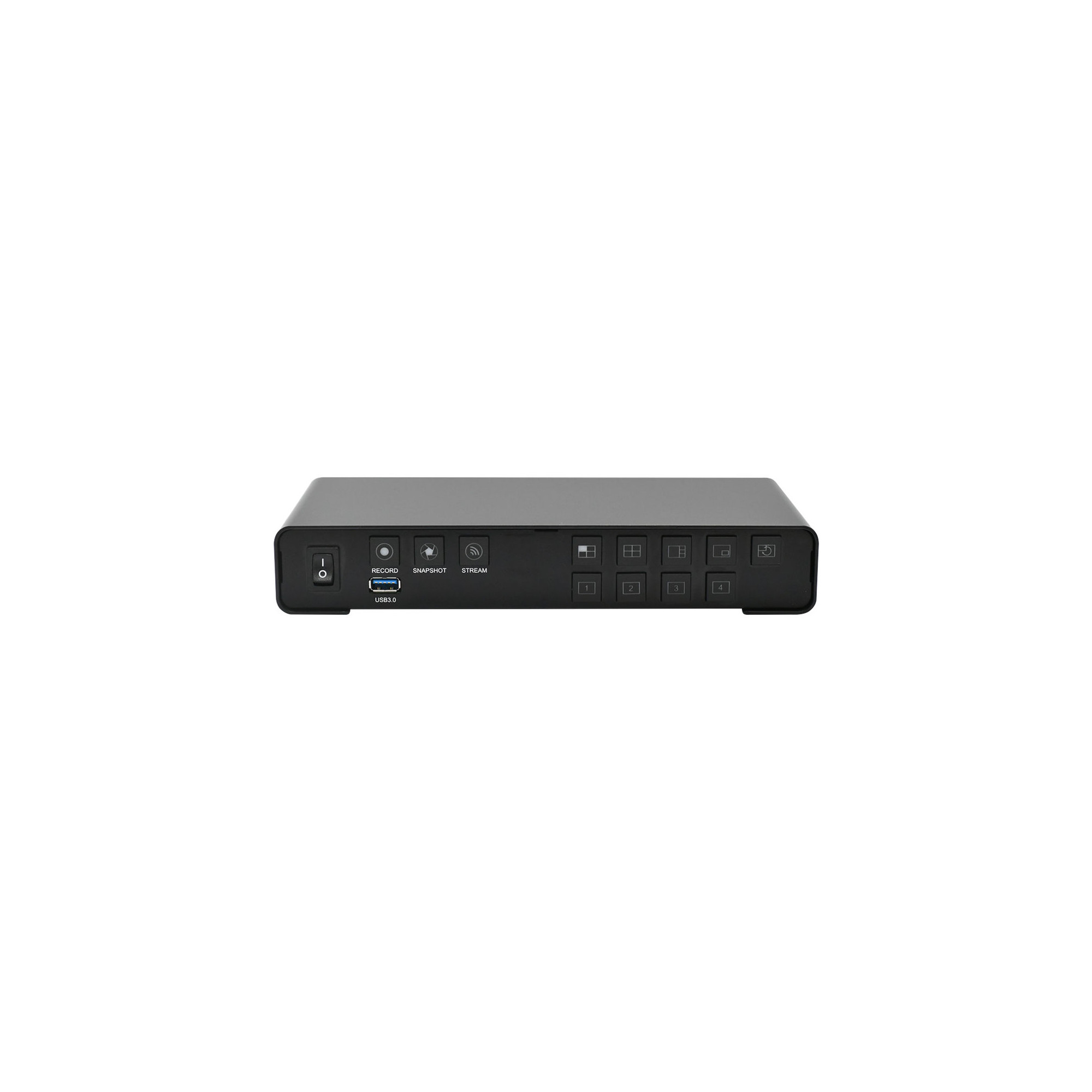

SC6D0N4 SDI

SC6D0N4 SDI Streaming Server is more than just a streaming server. In addition to the four SDI inputs, there's Program out, since it is a semaless video switcher.. Functions such as Picture-In-Picture, Quad Split, switching between inputs, etc. make the SC6D0N4 SDI a quasi-switcher.
Another feature is the storage option. With a function key on the front panel, sequences can be archived to external USB disks via the USB3.0 interface in MP4, MPEG-TS, AVI or MOV. Features like SnapShot, streaming, connectivity are just as natural.
On the back of the unit are connectors such as RJ45 for connection to the Internet. There are also RS232 and two USB2.0 ports to control industrial / commercial external units. For example, the system's internal control software can be accessed and configured using a USB keyboard and mouse.
Every channel can be stream separately with two built-in encoders per channel, so you can stream uo to 10 streams simoultaneously!(4 inputs+1 output times 2)
The most important features at a glance (excerpt):
Maximum frame rate: 1920 × 1080p @ 300BpS (4 SDI + 1 PGM channels)
Input interfaces: Video: 4 x SDI, / Audio: 4 × 3.5mm stereo analog audio
Output interfaces: Video: 1 × HDMI (Multiview / PGM); 1 × SDI (PGM); Audio: 1 × 3.5mm
Video properties: H.264, Baseline / Main / High Profile. Configurable bit rates up to 64Mbps.
Supported resolutions at the input:
• 1920 × 1080 (P60 / P50 / P30 / P25 / P24 / i60 / i50)
• 1280 × 720 (P60 / P50)
• 720 × 480 (P60), 720 × 576 (P50 / i50)
Supported Resolutions at the output:
• Scalable resolution from 160 × 120 to 1920 × 1080 (P60)
Audio properties: AAC-LC; configurable bit rate in the range of 32KbpS to 384KbpS; Sample rate: 48KHz, 16bit
Network features: 1 × RJ45 for 10/100 / 1000Mbps Ethernet, DHCP client
Streaming protocols: RTSP via UDP / TCP / Multicast / HTTP; RTMP (Publish); TS via IP; HLS
