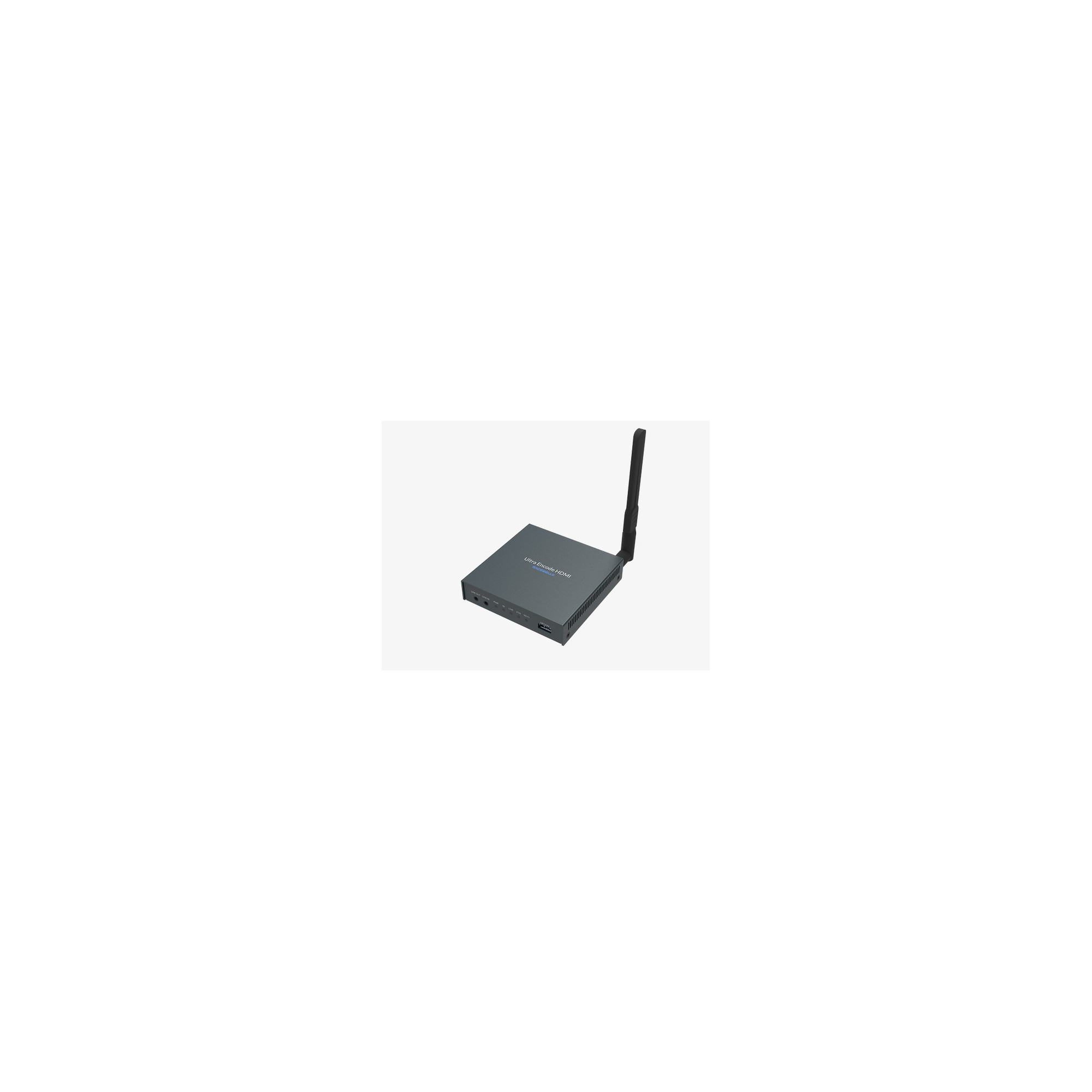

Ultra Encode SDI

Name: Ultra Encode SDI
Brand: Magewell
SKU: Ultra Encode SDI
Price: 854893 NGN
Availability: OutOfStock

Magewell

EAN: 6936572401379

Encoder H.264-H.265.RTMP/RTSP/SRT/NDI HX etc- HDMI in(HDMI loop thru)

go to the technical sheet

₦ 854,893.00

₦ 795,249.00 VAT excl.

Available in 11 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

The Ultra Encode family of universal live media encoders provides system integrators, streaming professionals and OEM partners with a flexible and cost-effective encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and more.

Flexible SDI and HDMI video inputs and H.264, H.265 encoding
Available in HDMI and SDI models, Ultra Encode supports high quality H.264, H.265 (HEVC) and NDI®|HX encoding and multiple streaming protocols over wired or wireless network connectivity.

All protocols RTMP, RTMPS, HLS as well as SRT and NDI®|HX
Ultra Encode supports live streaming in protocols including RTMP, RTMPS, HLS and more at bitrates up to 16 Mbps, with configurable presets for easy streaming to Facebook, Twitch and YouTube. Some protocols can stream to multiple destinations simultaneously, with separate encoding parameters for each stream. In addition to traditional streaming protocols, Ultra Encode supports NewTek's NDI®|HX technology for IP production workflows and the Secure Reliable Transport (SRT) protocol (developed and open sourced by Haivision) for reliable delivery of H.264/H.265 streams over unpredictable networks such as the Internet.

Direct Camera to Control Room
The encoder can be mounted on the camera for easy remote contribution, while low bandwidth NDI®|HX streams can be sent over wireless networks to multiple receivers, simplifying on-site production and workflow monitoring.

IP In/Out Made Easy
Ultra Encode can be combined with our Pro Convert decoders to form flexible AV over IP infrastructures that leverage NDI®|HX technology.

Full Control via Web or API
Devices can be configured and controlled via an intuitive web GUI or HTTP-based APIs, offering systems integrators exceptional deployment and integration flexibility.

USB

Lindy

USB 3.0 cable

₦ 33,485.00 VAT included

Available 8 unit in 4 Days

Input Features
_____________________________________
Max input & loop-through signal: 2048x1080 60fps
Supported inputs include:
&emsp,2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
&emsp,1280x720p 25/29.97/30/50/59.94/60
&emsp,720x576 25p/50i (PAL SD)
&emsp,720x480 29.97p/59.94i (NTSC SD)
8/10/12-bit color
Input & loopthrough 16-Channel SDI embedded audio
Input Audio from 3.5 mm LINE IN
SD/HD/3G BNC input & loopthrough
SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards

Encoding Features
_____________________________________
Dual stream encoding: main stream and sub stream
Max bitrates:
&emsp,Main Stream - 16Mbps
&emsp,Sub Stream - 2Mbps
Supported resolutions:
&emsp,HD: 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
&emsp,SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
H.264/H.265(HEVC) video encoders
Encoding 2-channel AAC audio at 48kHz, 16-bit
Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
Extracting audio from input signal and output through LINE OUT

Streaming Features
_____________________________________
Natively support Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
Allow simultaneous sessions over the same streaming protocol. Streaming protocols are as follows.
&emsp,Up to 6 sessions of TS over RTP and TS over UDP simultaneously
&emsp,Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most
&emsp,Up to 6 sessions of RTMP and RTMPS simultaneously
&emsp,Stream only 1 session of HLS (push), RTSP, or NDI|HX2
Total bitrates for different network connection types:
&emsp,24Mbps for all streams is recommended for a wired network connection
&emsp,16Mbps for all streams is recommended for a wireless network connection
Specify streaming main stream or sub stream for each session

Web UI Management
_____________________________________
Provide comprehensive information regarding the system information of device and working status in real-time
Video thumbnail preview
Configure parameters of volume and color, color format and quantization of input and output signals, stream profiles, as well as the network connection
Update firmware
Export configuration profiles of the device
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

Network Interfaces
_____________________________________
Wired Ethernet network: 10/100/1000Mbps
Wi-Fi 802.11 a/b/g/n/ac
3G/4G USB mobile broadband Modem (not included)

Input/Output Interfaces
&emsp,SD/HD/3G BNC input and loop-through interfaces
&emsp,3.5mm LINE IN
&emsp,3.5mm LINE OUT
LED Indicators: LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

Power
_____________________________________
Voltage: DC 5V/2A
Max power consumption: ~7.6 W

Working Environment
_____________________________________
Operating temperature: 0 to 40 deg C
Storage temperature: -20 to 70 deg C
Relative humidity: 5% to 90% non-condensing

Dimensions
_____________________________________
106.6mm x 106.2mm x 25mm
