SC6C0N1 MINI

Name: SC6C0N1 MINI
Brand: Yuan
SKU: SC6C0N1 MINI
Price: 330.99 EUR
Availability: InStock

Yuan

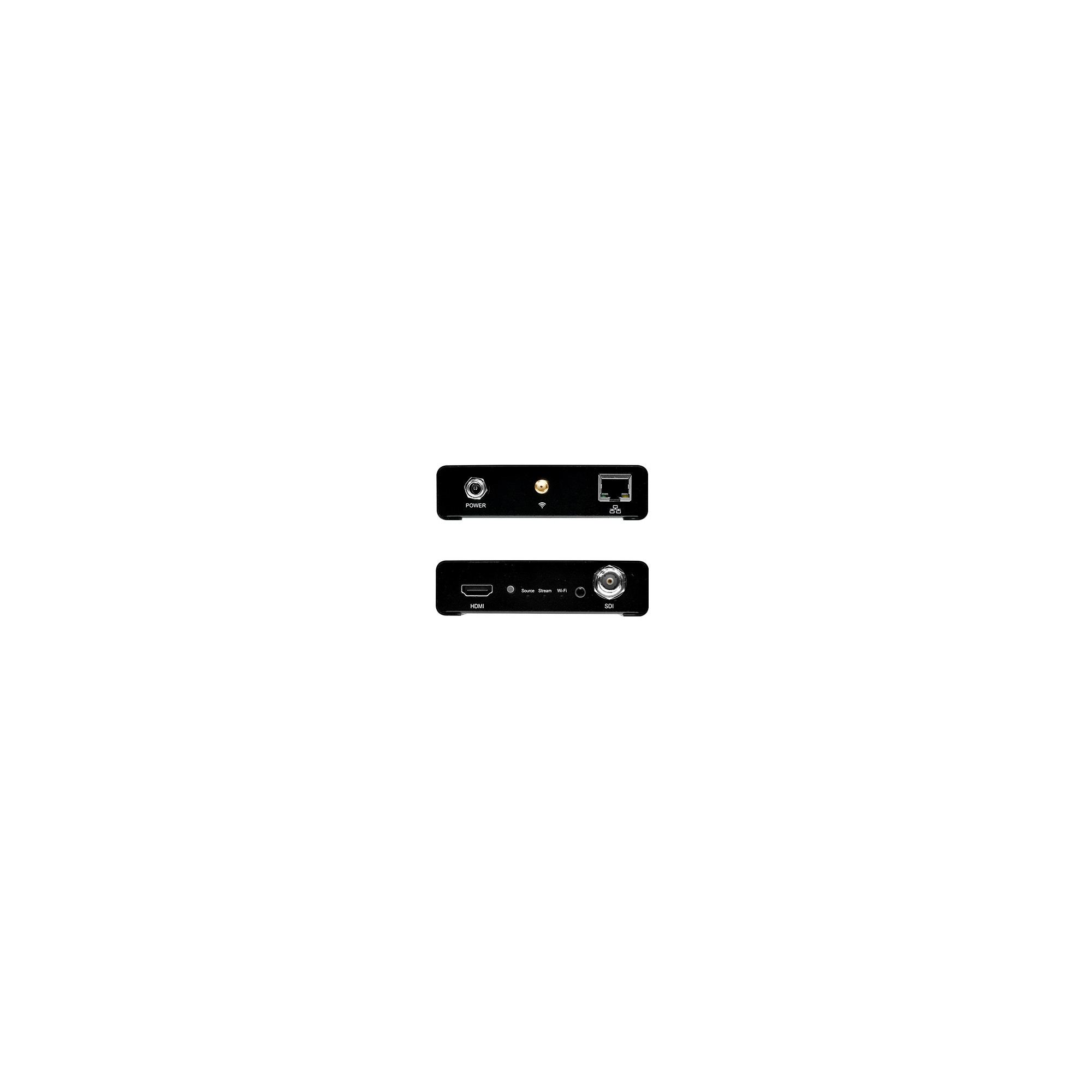

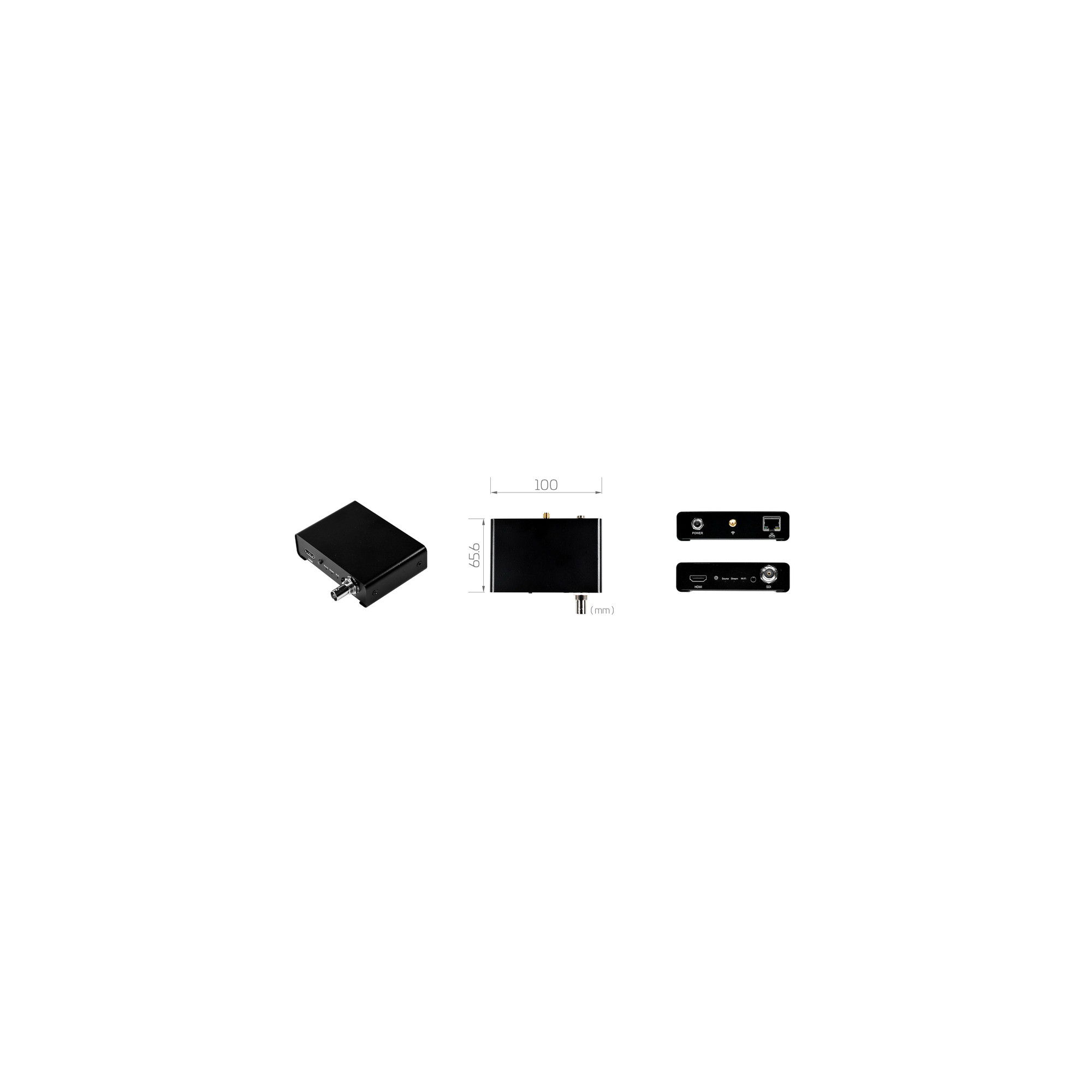

Mini encoder with 1xSDI input and 1xHDMI input

go to the technical sheet

-2.5%

Save 2.5%

€ 330,99

€ 307,90 VAT excl.

€ 339,47

Available 2 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

Mini encoder with 1xSDI input and 1xHDMI input and external audio input(3,5" jack)
Max. FPS 60/50fps@1920×1080p
Audio
1×3.5mm Stereo Analog Audio
SDI/HDMI Embedded Audio
Video Feature H.264/AVC , Baseline/Main/High Profile
Configurable Bit Rate Up to 10Mbps
Supported Resolutions :
Input
1920×1080 ( P60/P50/P30/P25/P24/i60/i50 )
1280×720 ( P60/P50 ), 1280×1024( P60 ), 1280×960 ( P60 )
1024×768 ( P60 ), 800×600 ( P60 ), 720×480 ( P60/i60 )
640×480 ( P60 ), 720×576 ( P50/i50 )
Output
Resize Range from 128×128 to 1920×1080 ( P60 )
*Output Include Down Scaling.
Network Feature 1×RJ45 for 10/100Mbps Ethernet and Wi-fi
DHCP Client
Support Streaming protocol TS over TCP/UDP ( Unicast & Multicast ),RTSP over HTTP/TCP/UDP ( RTSP Elementary Stream ),RTMP ( Publish ),HLS
Misc. Features Dynamic Parameter Setting
Web UI for System Configuration
Firmware Upgradable
LED Indicator
Status With Power Recycle
System Requirement
Power Supply DC 12V ( With DC Adapter )

Max. FPS 60/50fps@1920×1080p
Recording Mode Hardware Compression, Real-Time Mode
Input Interfaces Video
1×HDMI
1×SDI

Audio
1×3.5mm Stereo Analog Audio
SDI/HDMI Embedded Audio
Video Feature H.264/AVC , Baseline/Main/High Profile
Configurable Bit Rate Up to 10Mbps
Supported Resolutions :
Input
1920×1080 ( P60/P50/P30/P25/P24/i60/i50 )
1280×720 ( P60/P50 ), 1280×1024( P60 ), 1280×960 ( P60 )
1024×768 ( P60 ), 800×600 ( P60 ), 720×480 ( P60/i60 )
640×480 ( P60 ), 720×576 ( P50/i50 )

Output
Resize Range from 128×128 to 1920×1080 ( P60 )
*Output Include Down Scaling.
Audio Feature AAC-LC
Configurable Bit Rate Range from 32Kbps to 384Kbps
Sample Rate : 48KHz, 16bit
Network Feature 1×RJ45 for 10/100Mbps Ethernet
DHCP Client

Wifi
802.11b/g/n
Support 150Mbps PHY Rate
Support Streaming protocol TS over TCP/UDP ( Unicast & Multicast )
RTSP over HTTP/TCP/UDP ( RTSP Elementary Stream )
RTMP ( Publish )
HLS
Misc. Features Dynamic Parameter Setting
Web UI for System Configuration
Firmware Upgradable
LED Indicator
Status With Power Recycle
System Requirement
Power Supply DC 12V ( With DC Adapter )
