PTZ-NDI-X12
PTZ-NDI-X12
Previous keyboard_arrow_left
Next keyboard_arrow_right
PTZ-NDI-X12
PTZ-NDI-X12

PTZ-NDI-X12

Aida

0682863380125
Full HD NDI®|HX2 Broadcast PTZ Camera
go to the technical sheet
₦ 2,154,568.00

₦ 2,004,249.00 VAT excl.

Available in 9 days
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

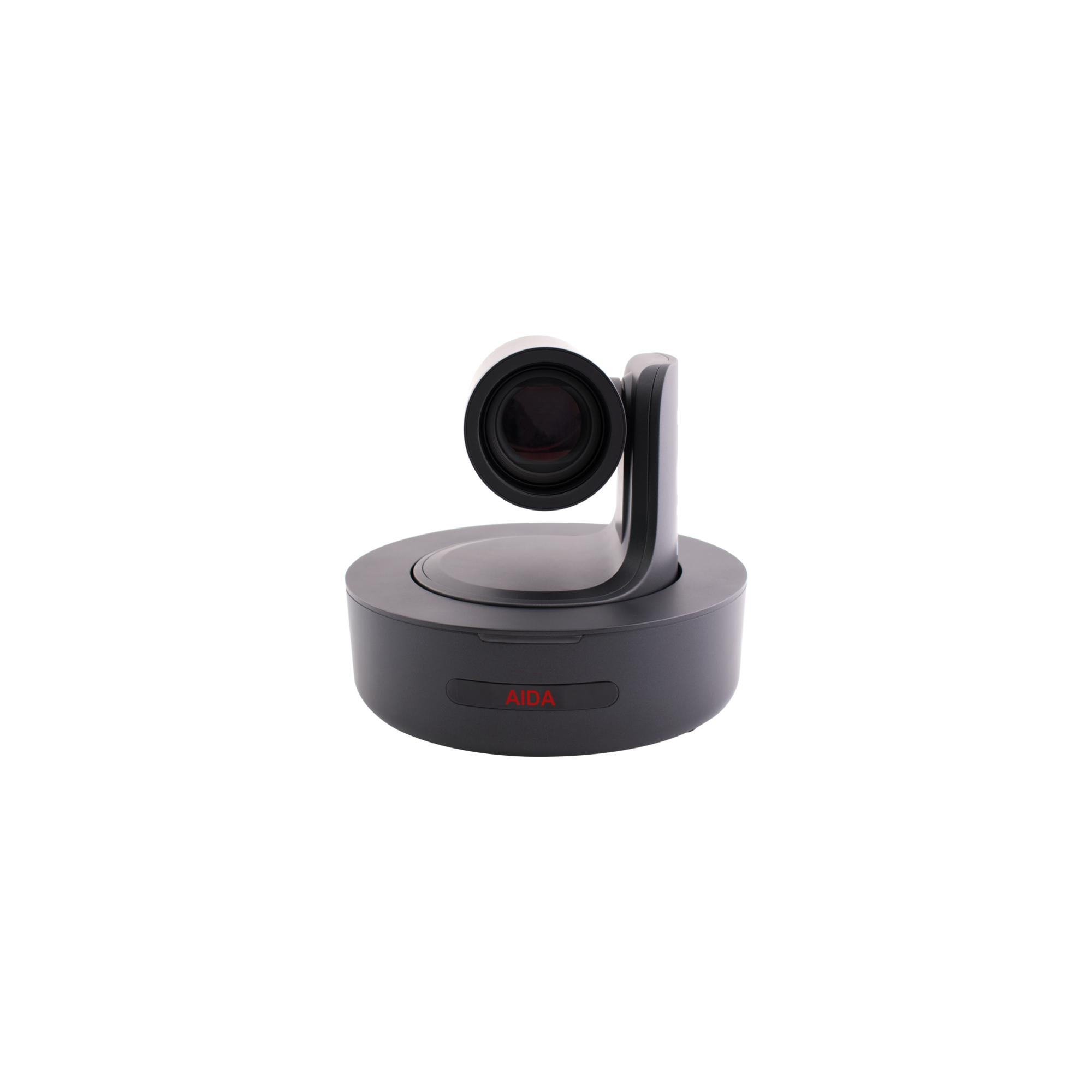

The PTZ-NDI-X12 is AIDA's first camera to utilize NDI®|HX2 technology. The camera features Newteks NDI®|HX2 to help ease production with seamless video transfer over almost any existing network infrastructure. With integrated RS232 and VISCA over IP camera control, this camera is compatible with most IP based controllers, simplifying existing workflows with better cable management. The camera features traditional multi video format outputs such as 3G-SDI, HDMI, USB 3.0, as well as online video outputs RTSP/RTMP. Our camera's cost effective approach makes professional grade PTZ cameras, at the fraction of the price.

NDI®|HX2, NewTek's innovative Network Device Interface technology, is a royalty free standard enabling IP video workflows across Ethernet networks. NDI®|HX2 is a bi-directional standard that allows video systems to identify and communicate with one another over IP, and to encode, transmit, and receive multiple streams of broadcast-quality, low latency, frame-accurate video and audio in real time. The NDI®|HX2 encoding algorithm is resolution and frame rate independent, supporting up to 4K and beyond, as well as multi-channel, floating-point audio up to 16 channels and beyond. NDI®|HX2 also includes tools to implement video access and grouping, bi-directional metadata, tally, and more.

MAIN FEATURES

° NDI®|HX2 streaming capable for low latency video streaming and PTZ control over NDI®|HX2 Protocol.

° Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.

° Advanced digital image processor provides vivid and detailed images with full access feature sets.

° Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.

° 3G/HD-SDI, HDMI, RJ-45, USB 3.0, and USB 2.0 for versatility and seamless video performance.

° Power Optical Zoom capability up to 12X.

° Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.

° Auto White Balance and shutter speed provides the optimized performance in a variety of situations.

° Built-in OSD controls for customizable image settings.

° Versatile and compact.

FLOW2000
Swit

FLOW2000

₦ 3,003,388.00 VAT included
Available in 11 days
FLOW500
Swit

FLOW500

₦ 1,429,856.00 VAT included
Available in 11 days
COSMO C1
Hollyland

COSMO C1

₦ 987,978.00 VAT included
Available 3 unit in 4 Days
RCC-6-SDI
Roland

RCC-6-SDI

₦ 16,285.00 VAT included
Available 8 unit in 4 Days
RCC-25-SDI
Roland

RCC-25-SDI

₦ 81,538.00 VAT included
Available 9 unit in 4 Days
RCC-16-SDI
Roland

RCC-16-SDI

₦ 47,138.00 VAT included
Available 3 unit in 4 Days
RCC-10-SDI
Roland

RCC-10-SDI

₦ 43,483.00 VAT included
Available 1 unit in 4 Days
RCC-3-SDI
Roland

RCC-3-SDI

₦ 13,544.00 VAT included
Available 7 unit in 4 Days
RCC-100-SDI
Roland

RCC-100-SDI

₦ 103,575.00 VAT included
Available 7 unit in 4 Days
Mars T1000
Hollyland

Mars T1000

₦ 2,935,286.00 VAT included
Available in 29 days
BR-CZ1 Orange
ON-AIR

BR-CZ1 Orange

₦ 78,259.00 VAT included
Available 1 unit in 4 Days
BR-235105
ON-AIR

BR-235105

₦ 75,894.00 VAT included
Available 6 unit in 4 Days
BR-235155
ON-AIR

BR-235155

₦ 240,315.00 VAT included
Available 8 unit in 4 Days
244RC
Manfrotto

244RC

₦ 482,405.00 VAT included
Available 1 unit in 4 Days
SC-01
ON-AIR

SC-01

₦ 40,526.00 VAT included
Available 1 unit in 4 Days
026
Manfrotto

026

₦ 101,855.00 VAT included
Available 60 unit in 4 Days
143N
Manfrotto

143N

₦ 299,924.00 VAT included
Available 4 unit in 4 Days
143RC
Manfrotto

143RC

₦ 512,774.00 VAT included
Available in 14 days
244N
Manfrotto

244N

₦ 335,453.00 VAT included
Available in 14 days
Arm Mini
ON-AIR

Arm Mini

₦ 43,160.00 VAT included
Available 3 unit in 4 Days
CCS-USB
Aida

CCS-USB

₦ 394,201.00 VAT included
Available 1 unit in 4 Days

Video
Image Sensor : 1/2.5" Progressive CMOS
Effective Pixels Horizontal : 1920, Vertical: 1080
Pixel Size : 2.13 µm x 2.13 µm

Resolution/Rate
° 1080 60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
° 1080 60i/59.94i/50i
° 720 60p/59.94p/50p/30p/29.97p/25p

IP Rate
° 1920 x 1080 @ 1~60
° 1280 x 720 @ 1~60
° 1024 x 576 @ 1~60
° 620 x 360 @ 1~60

Output
° HD-SDI/3G-SDI
° HDMI
° RTSP / RTMP / NDI®|HX2
° USB 3.0 & 2.0

Color Space : 4:2:2 (YCbCr) 10bit
Min. Illumination : 0.1Lux

Function
White Balance : Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
Focus : Auto, Manual
Shutter Speed : 1 to 1/10,000 Sec.

Lens
Lens : 12X HD Optical Zoom, F1.5 ~ F3.0

PTZ
Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s,
Presets 128 Positions
Field of View 72.5°

Standard
SMPTE SMPTE 292M, SMPTE 424M
IP Protocol TCP/IP, RTSP/RTMP

Power
Voltage: 12VDC (+9 - +15VDC)
Power on PoE+ = yes

Physical
Camera Control Protocol: VISCA
Interface: RS-232C IN & OUT, RJ-45
Remote Controller: included
Operation Temp : 32°C-40°C (32° F - 104° F)
Dimension : 155mm x 160m x 170mm (6.10" x 6.92" x 6.69")
Weight : 1.35kg (2.97lbs)

1x PTZ-NDI-X12 Camera
1x Remote Control
