SC5C0N8 SDI

Name: SC5C0N8 SDI
Brand: Yuan
SKU: SC5C0N8 SDI
Price: 2729155 NGN
Availability: OutOfStock

Yuan

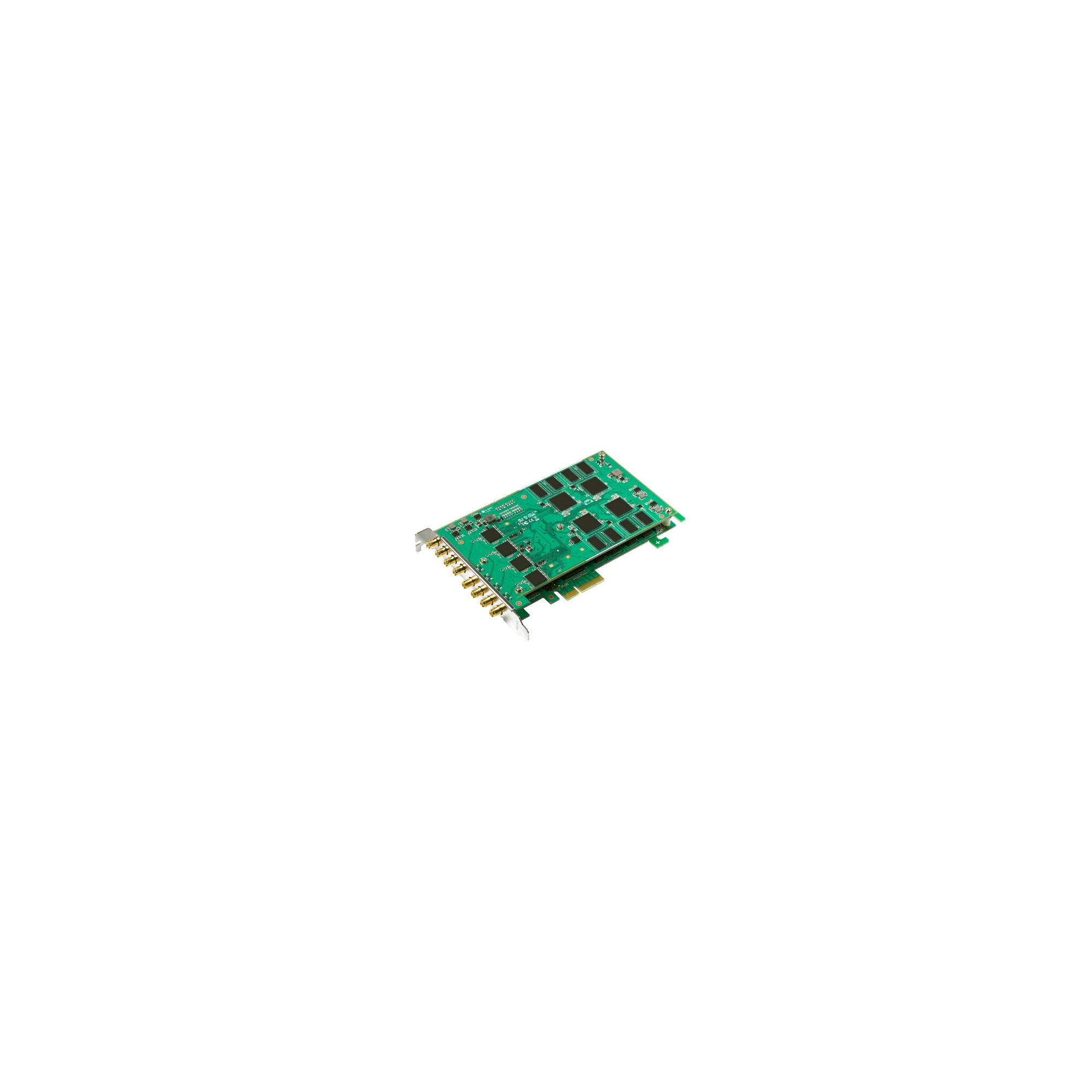

Video / audio capture board with 8 × SDI - H.264 input

go to the technical sheet

₦ 2,729,155.00

₦ 2,538,749.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

Top level Video / audio capture card with 8 × SDI - H.264 input
Video/audio capture card with 8×SDI input - H.264 Max. FPS 1920×1080p@60/50fps in.
Ideal for developing high-level acquisition projects thanks to SDK Support API support: DirectShow, V4L2, Ffmpeg, Gstreamer.
Possibility of development and management using the following languages: C++, C#, .NET, Visual Basic, Qt, Delphi

Specifications

Resoltzions managed
Max. FPS 1920×1080p@60/50fps in - 1920×1080p@60/50fps out
Recording Mode Hardware Compression, Real-Time Mode

Display Video Format YV12, NV12, YUY2, RGB24, RGB32

Video RAW Data Resolution
3G-SDI
° 1920×1080p@60/50fps
HD-SDI
° 1920×1080p@30/25/24fps
° 1920×1080i@60/50fps
° 1280×720p@60/50fps
SD-SDI
° 720×480i@60fps
° 720×576i@50fps

Recording Video Format : H.264 ( Hardware Compression )

Recording Video Resolution
3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI
720×480i@60fps
720×576i@50fps

Audio Input
4×SDI Embedded Audio
2×3.5mm Audio
Audio Format Stereo / 16-bit / 32000 ~ 48000Hz

SDK Developing Support
SDK Support API : DirectShow, V4L2, Ffmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi

System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )

General
Video Input : 8×SDI
Dimension : 160.15×101.03 ( mm )
Interface : PCIe×4 ( Gen2 )
